4 Click the Yes.
Two task blocks which consist of Multi-trigger Imaging Task and Camera Image Input FH will
be added between the Multi-trigger Imaging and Multi-trigger Imaging End.

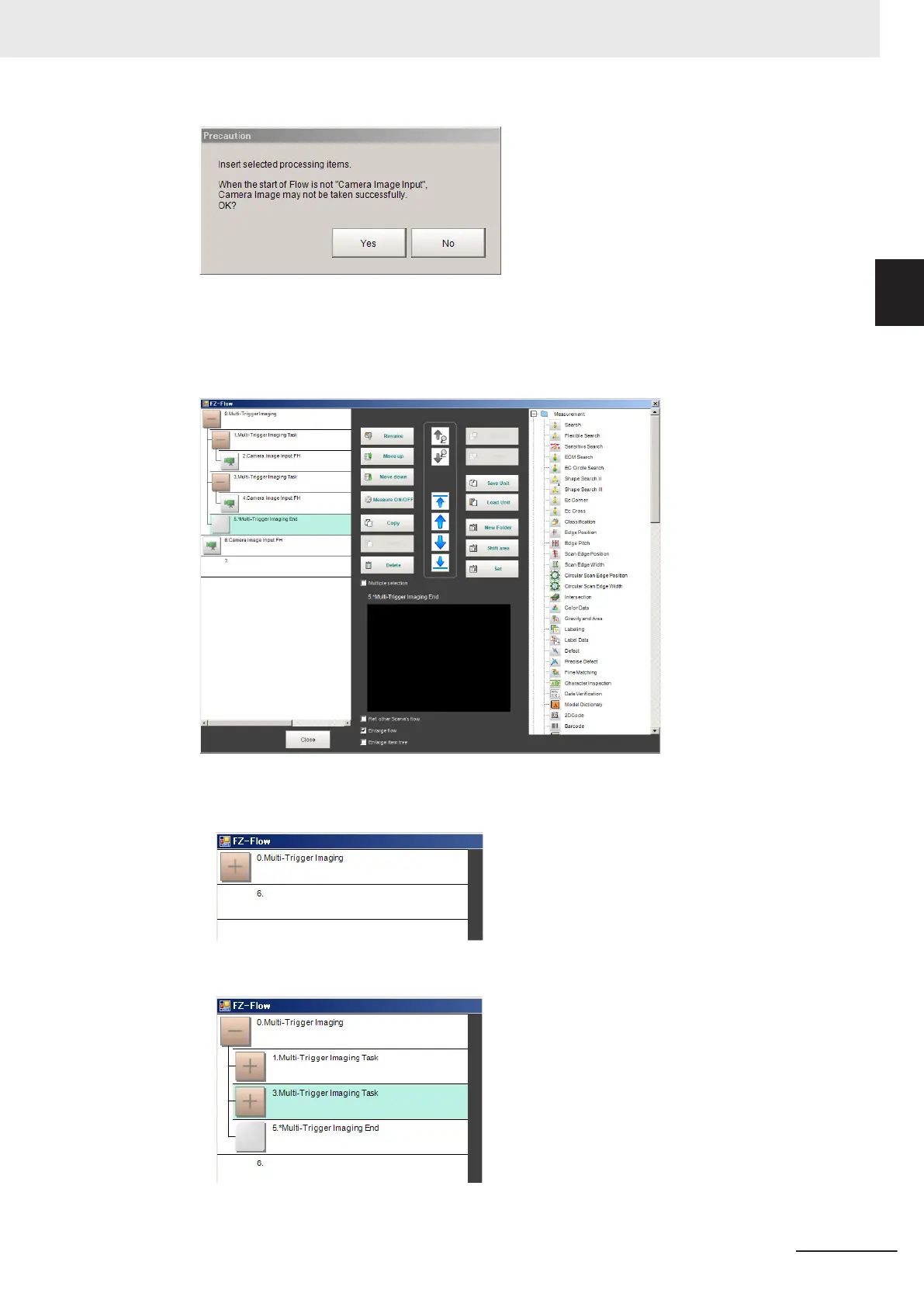

Example: Block of Multi-trigger Imaging and Multi-trigger Imaging Task
• Multi-trigger imaging collapsed view:
• Multi-trigger Imaging Task collapsed view:
10 Advanced Usage
10 - 19
FH/FHV Series Vision System User’s Manual (Z365-E1)
10-2 Multi-trigger Imaging Processing
with Any Timing [Multi-trigger Imaging]
10
10-2-3 Setting Methods
