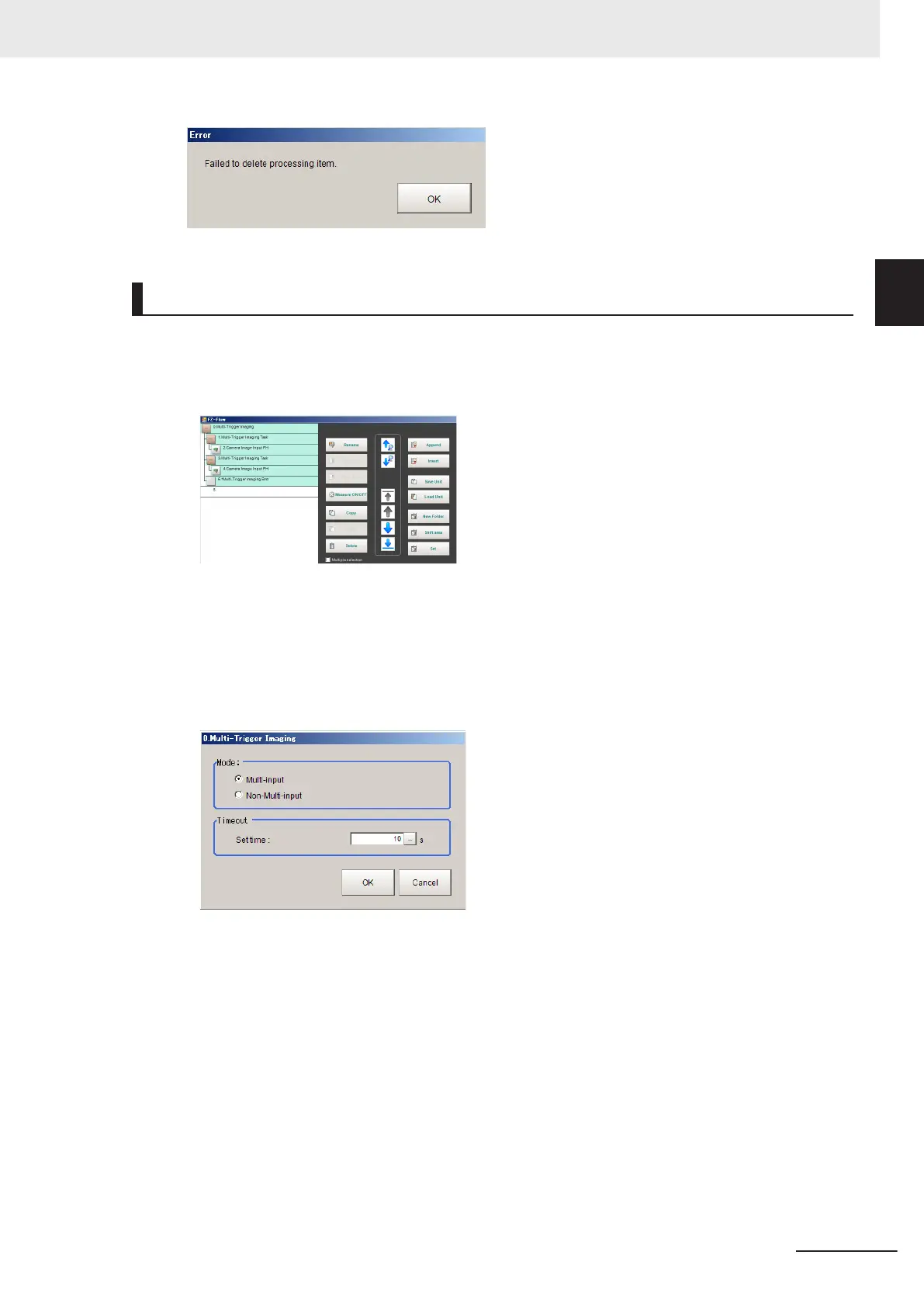

Setting parameters of Multi-trigger Imaging Processing Items
Follow the steps below to configure the parameters of Multi-trigger Imaging Processing Items.
1 In the Main Window (layout 0), select Function - Edit Flow.
2 Select the Multi-trigger Imaging to configure.
3 Click the Settings.
4
Select the mode and set the time for timeout.
10 Advanced Usage
10 - 21
FH/FHV Series Vision System User’s Manual (Z365-E1)
10-2 Multi-trigger Imaging Processing
with Any Timing [Multi-trigger Imaging]
10
10-2-3 Setting Methods
