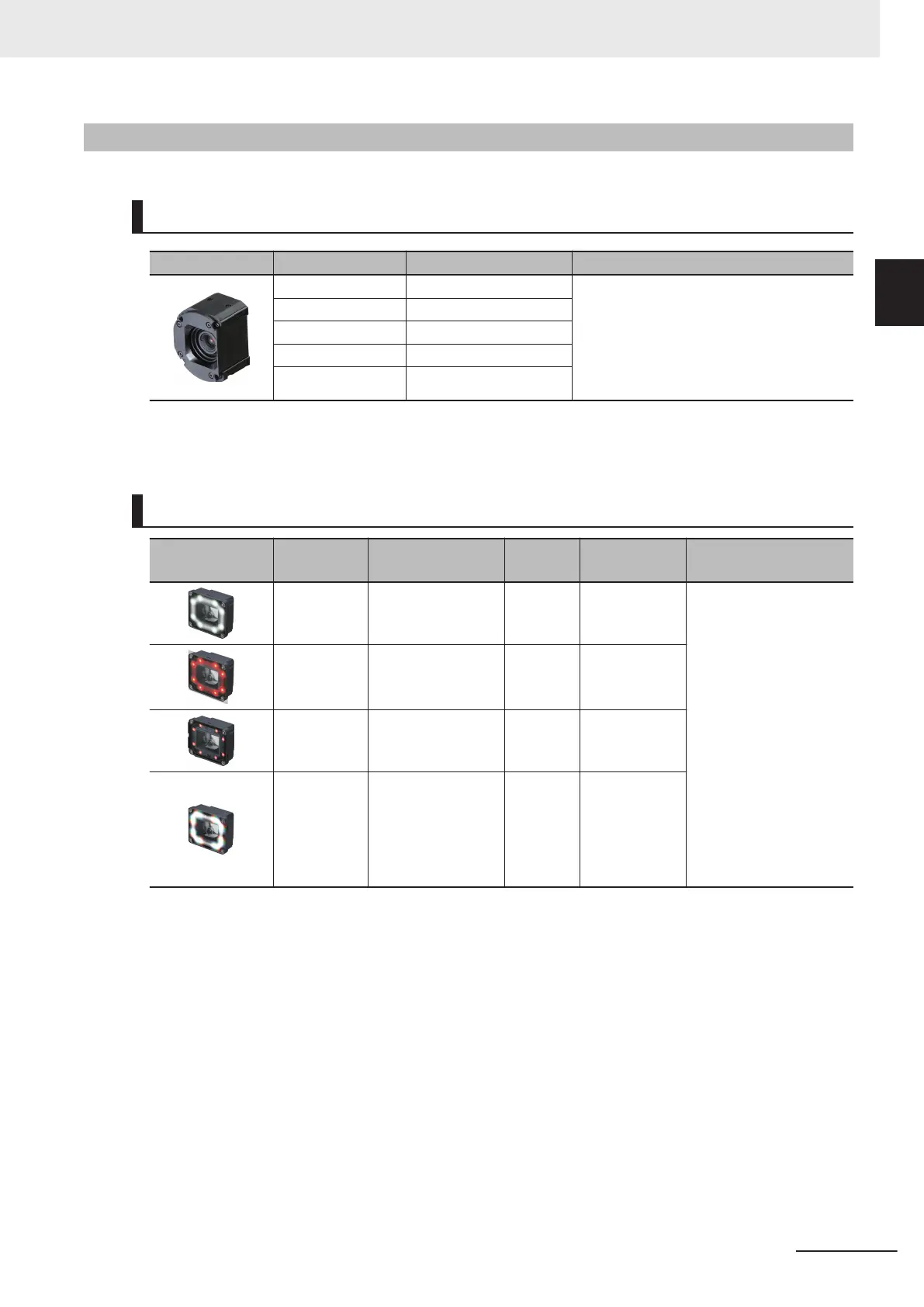

1-2-2
Modules
Lens Modules
Appearance Focal distance Model Package contents
6 mm FHV-LEM-S06
• Main unit: 1
• Special cover for FHV-LEM-S: 1
• Screws: M3×8 mm: 5 (including one
spare piece)
• Instruction sheet : 1
• Compliance sheet: 1
9 mm FHV-LEM-S09
12 mm FHV-LEM-S12
16 mm FHV-LEM-S16
25 mm FHV-LEM-S25
If purchasing the Smart Camera with integrated lens module, refer to 1-1-2 FHV7H-□□□□□-S□□ Series
on page 1 - 2 and 1-1-3 FHV7H-□□□□□-S□□-□□ Series on page 1 - 3.
Lighting Modules
Appearance Color
Peak
wavelength
Source Model Package contents
White - LED FHV-LTM-W
• Main unit: 1
• Waterproof packing
(small) FHV-XWP-
CAM:1
• Waterproof packing
(large) FHV-XWP-
LTM: 1
• Light shielding sheet
FHV-XLS-LTM: 1
• Lighting cover FHV-
XCV: 1
• Hexagonal wrench
(length: 60 mm): 1
• Instruction sheet: 1
• Compliance sheet: 1
Red Typ. 630 nm LED FHV-LTM-R
Infrared light Typ. 850 nm LED FHV-LTM-IR
Multi-color R: Typ. 630 nm
G: Typ. 525 nm
B: Typ. 465 nm
IR:Typ. 850 nm
LED FHV-LTM-MC
If purchasing the Smart Camera with integrated lighting module, refer to the 1-1-3 FHV7H-□□□□□-
S□□-□□ Series on page 1 - 3.
1 Confirm the Package
1 - 5
FHV Series Smart Camera Setup Manual (Z408-E1)
1-2 Sold Separately
1
1-2-2 Modules
