3-8

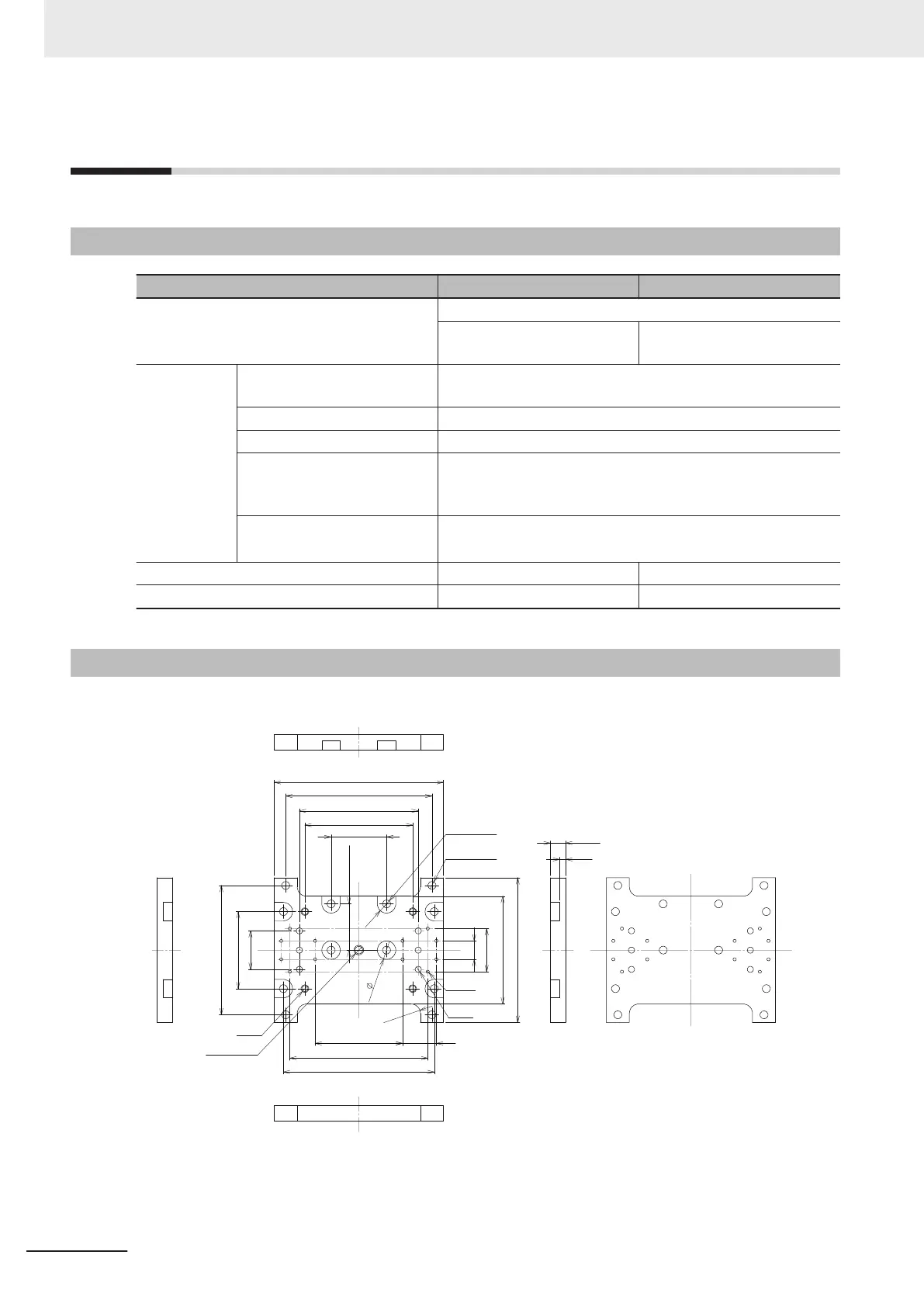

Mounting Fixtures
3-8-1
Specfications
Model FHV-XMT-7 FHV-XMT-7-TCC
Purpose Specifal fixture for FHV7 series
For Smart Camera body and
lighting controller mounting
For lighting controller mount-
ing
Usage
environment
Ambient temperature range Operating: 0 to +40℃, Storage: -25 to +65℃ (with no icing or
condensation)
Ambient humidity range Operating & Storage: 35 to 85%RH (With no condensation)
Vibration tolerance No corrosive gases
Shock resistance Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm,
Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep
count: 10
Vibration tolerance
Impact force: 150 m/s
2
, Test direction: 6 directions, three time
each (up/down, front/behind, left/right)
Material Aluminum (A6061) POM (Black)
Weight Approx. 220 g Approx. 50 g
3-8-2
Dimensions
• FHV-XMT-7
110
36 ±0.05
70
50 ±0.05
70 94
30 ±0.05
84
95
98 ±0.05
4-
8-5.2dia.
0
+0.1
6-R6
2-
12
12-M2
6-M4
4-R6
1/4-20UNC
4-M5
56.8 22
89.6
12
28
25
77.2
10
4
5.2dia.
0
+0.1
(Unit: mm)
3 Configuration
3 - 46
FHV Series Smart Camera Setup Manual (Z408-E1)
