Omron FHV Series - Dimensions

3-7-2
Dimensions

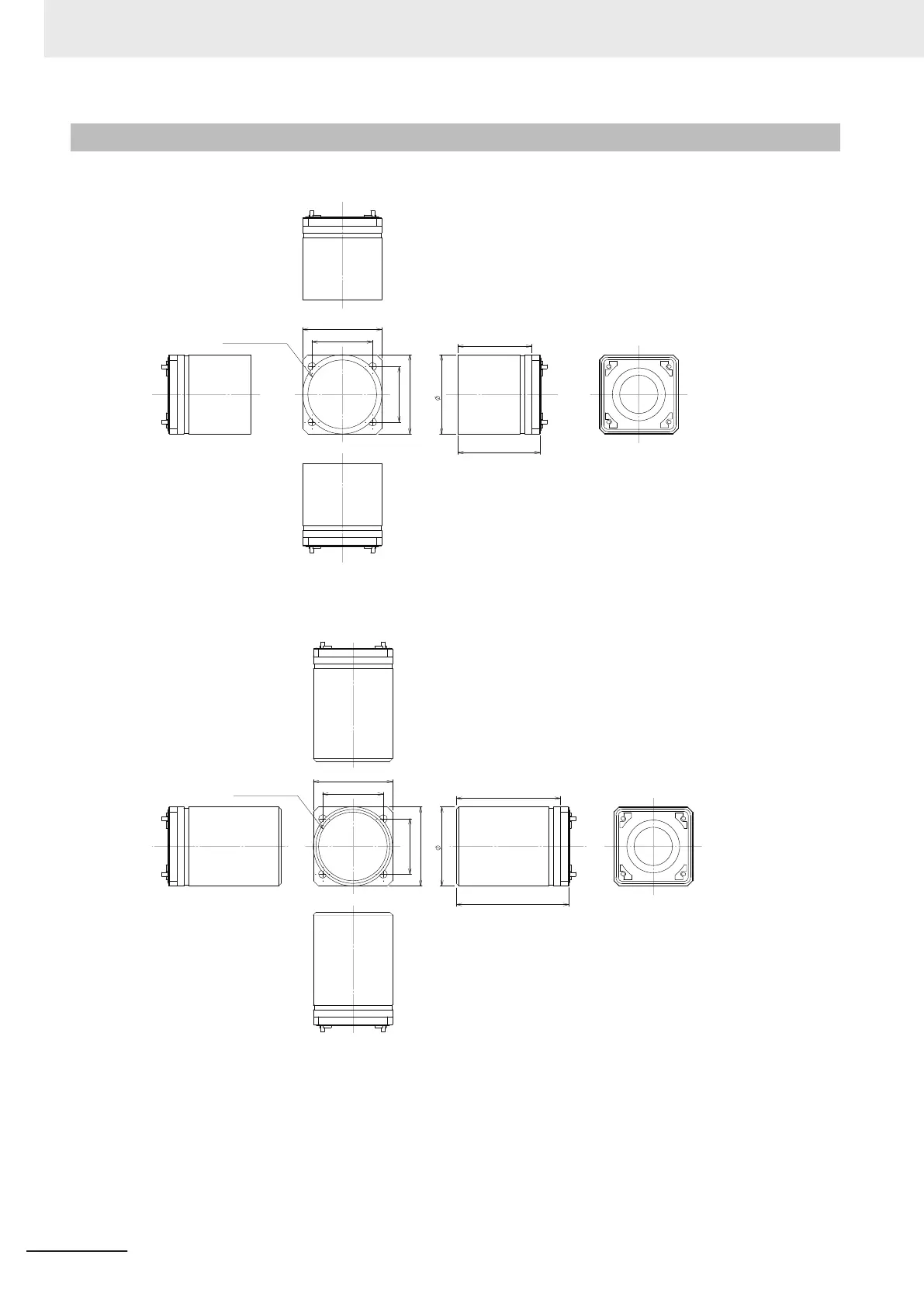

• FHV-XHD-S
60
60
46
42
M52x0.75DEPTH2.5
56
60
( 62.4 )
(Unit: mm)
• FHV-XHD-L
60
60
46
42
M52x0.75DEPTH2.5
79
60
( 85.4 )
(Unit: mm)
