Omron FHV Series - C Mount Lenses; Specifications

3-4

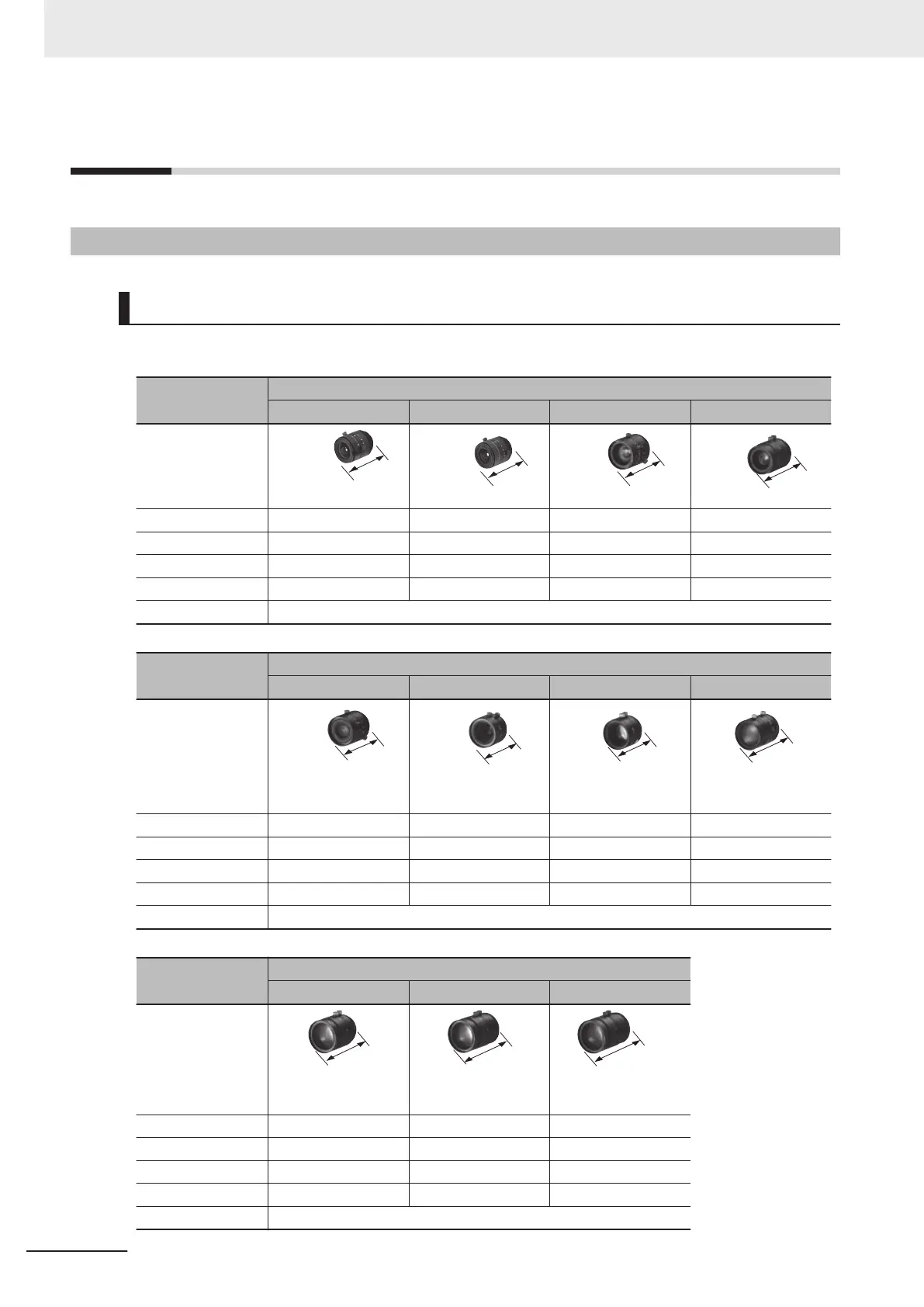

C Mount Lenses
3-4-1
Specifications
SV-V Series
FHV7H-□004 and FHV7H-□016 are recommended.
Model
3Z4S-LE
SV-03514V SV-04514V SV-0614V SV-0813V
Appearance/
Dimensions [mm]
30.4
29.5 dia.
29.5
29.5 dia.
30.0
29 dia.
34.0
28 dia.
Focal length [mm] 3.5 4.5 6 8
Aperture（F No.） 1.4 to Close 1.4 to Close 1.4 to Close 1.3 to Close
Filter size － － M27.0 P0.5 M25.5 P0.5
Max. sensor size 1/3-inch 1/3-inch 1/3-inch 1/3-inch
Mount C mount
Model
3Z4S-LE
SV-1214V SV-1614V SV-2514V SV-3518V
Appearance/
Dimensions [mm]
29.5
29 dia.
24.0
29 dia.
24.5
29 dia.
33.5 [WD: ∞] to
37.5 [WD: 300]
29 dia.
Focal length [mm] 12 16 25 35
Aperture（F No.） 1.4 to Close 1.4 to Close 1.4 to Close 1.8 to Close
Filter size M27.0 P0.5 M27.0 P0.5 M27.0 P0.5 M27.0 P0.5
Max. sensor size 1/3-inch 1/3-inch 1/3-inch 1/3-inch
Mount C mount
Model
3Z4S-LE
SV-5018V SV-7527V SV-10035V
Appearance/
Dimensions [mm]
37.0 [WD: ∞] to
39.4 [WD: 1000]
32 dia.
42.0 [WD: ∞] to
44.4 [WD: 1000]
32 dia.
32 dia.
43.9 [WD: ∞] to
46.3 [WD: 1000]
Focal length [mm] 50 75 100
Aperture（F No.） 1.8 to Close 2.7 to Close 3.5 to Close
Filter size M30.5 P0.5 M30.5 P0.5 M30.5 P0.5
Max. sensor size 1/3-inch 1/3-inch 1/3-inch
Mount C mount
