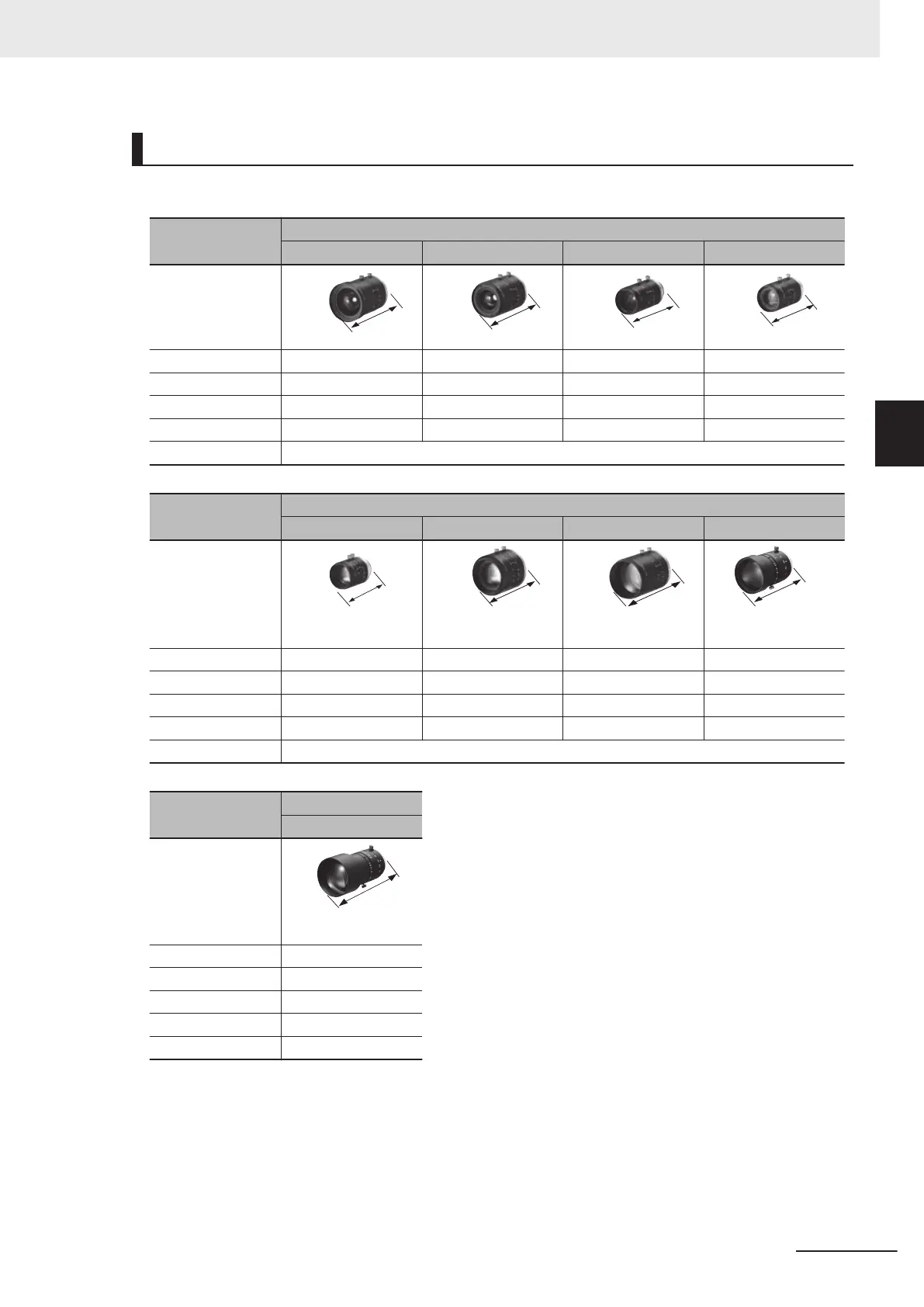

Omron FHV Series - Page 69

SV-H Series
FHV7H-□032, FHV7H-□050, FHV7H-□063R, and FHV7H-□120R are recommended.
Model
3Z4S-LE
SV-0614H SV-0814H SV-1214H SV-1614H
Appearance/
Dimensions [mm]
57.5
42 dia.
52.5
39 dia.
51.0
30 dia.
47.5
30 dia.
Focal length [mm] 6 8 12 16
Aperture（F No.） 1.4 to 16 1.4 to 16 1.4 to 16 1.4 to 16
Filter size M40.5 P0.5 M35.5 P0.5 M27.0 P0.5 M27.0 P0.5
Max. sensor size 2/3-inch 2/3-inch 2/3-inch 2/3-inch
Mount C mount
Model
3Z4S-LE
SV-2514H SV-3514H SV-5014H SV-7525H
Appearance/
Dimensions [mm]
36.0
30 dia.
45.5
44 dia.
57.5
44 dia.
49.5 [WD:∞] to
54.6 [WD:1200]
36 dia.
Focal length [mm] 25 35 50 75
Aperture（F No.） 1.4 to 16 1.4 to 16 1.4 to 16 2.5 to Close
Filter size M27.0 P0.5 M35.5 P0.5 M40.5 P0.5 M34.0 P0.5
Max. sensor size 2/3-inch 2/3-inch 2/3-inch 1-inch
Mount C mount
Model
3Z4S-LE
SV-10028H
Appearance/
Dimensions [mm]
66.5 [WD:∞] to
71.6 [WD:2000]
39 dia.
Focal length [mm] 100
Aperture（F No.） 2.8 to Close
Filter size M37.5 P0.5
Max. sensor size 1-inch
Mount C mount
