Omron FHV Series - C Mount Lens; IP67 Configuration

5-1-2

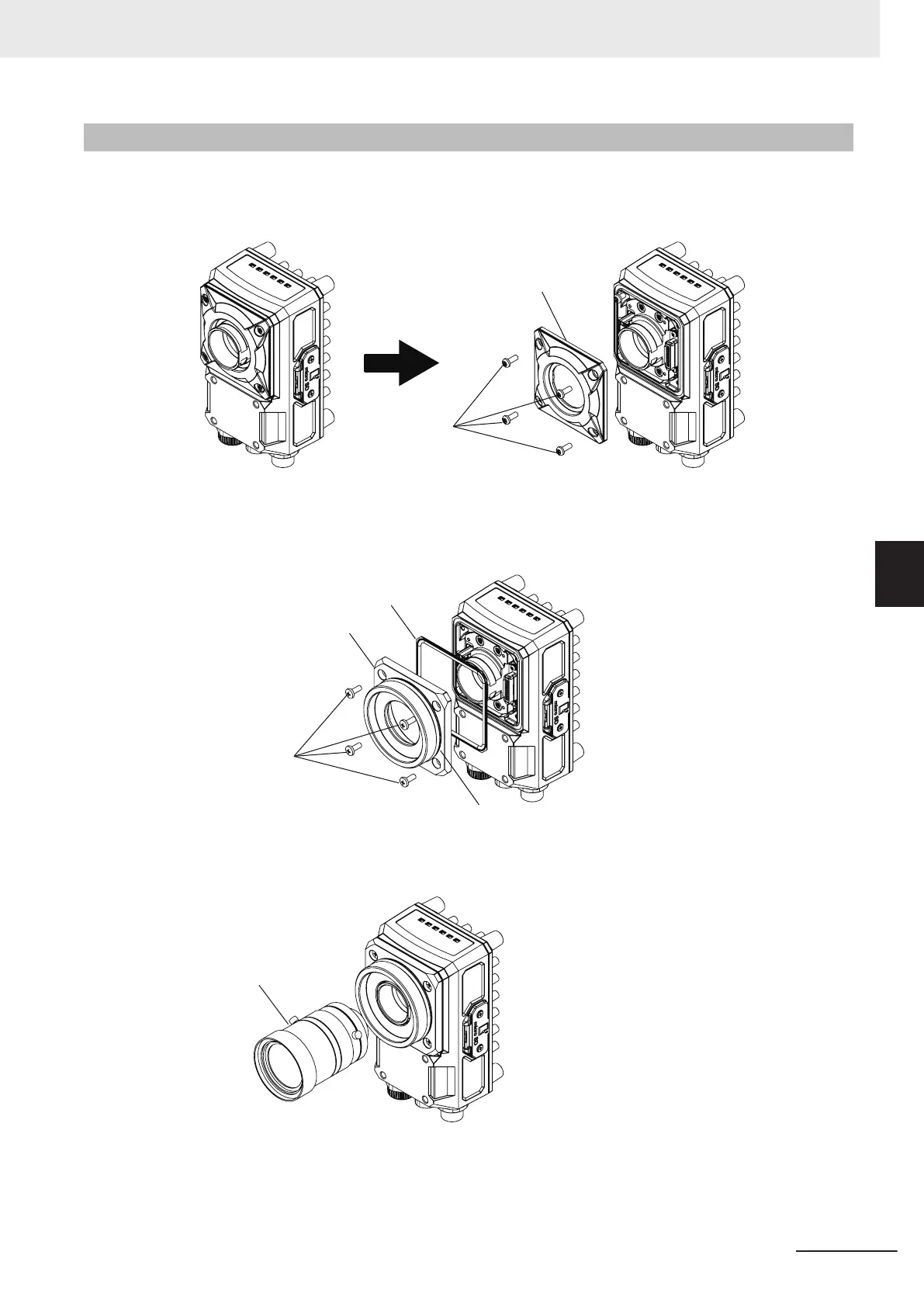

C Mount Lens / IP67 Configuration
1 Remove the C mount cover from the Smart Camera.
M3x8 screws
C mount cover
2 Attach the waterproof packing and then attach the hood base with the screws included with the
packing.
Recommended tightening torque: 0.54 N・m
Packing screws
Waterproof packing
for camera
Hood base
Waterproof packing for hood
(Mounted to the hood base)
3 Attach the C mount Lens.
C mount lens
5 Installation
5 - 3
FHV Series Smart Camera Setup Manual (Z408-E1)
5-1 Assembling Equipment
5
5-1-2 C Mount Lens / IP67 Configuration
