Omron H8PS User Manual

4.6 Step Number Limit (F5)
4-21
HOW TO USE THE
ADVANCED FUNCTIONS

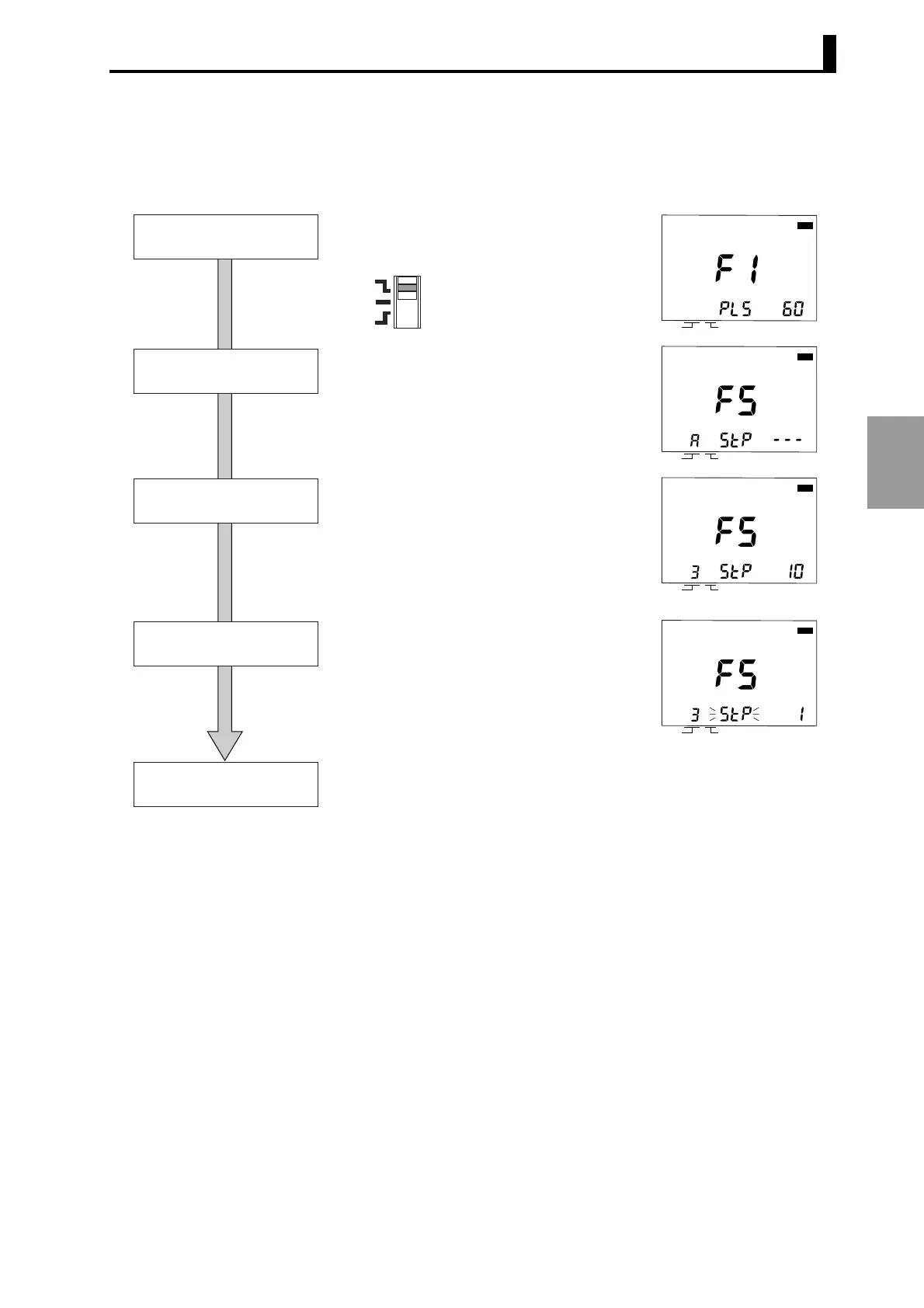

<Example 2>
Limiting the number of steps to "1" for cam 3
Function setting mode
With the mode switch set to PRGM, hold the
[ADV] key down for at least 3 seconds to enter
the function setting mode.
Press the [ADV] key to move to the "F5
(maximum number of steps set)" menu.
(The operation procedure up to this step is the
same as that in Example 1.)
Switching to F5
Complete setting by pressing the [WRITE] key.
("stp" stops flashing and remains lit.)
End of setting
Press the [+] or [−] key of the CAM keys to
display "3".
(In the default setting (this includes the status
after an "all clear" operation), "10" is
displayed for the step number.)
Designating the cam No.
Press the [+] or [−] key of the ANGLE keys to
set "1".
"stp" starts flashing when setting starts.
Setting the number of steps
CAM
STEP
PRG
TST
CAM
STEP
PRG
TST
PRGM
TEST
RUN
CAM
STEP
PRG
TST
CAM
STEP
PRG
TST
