Section 1 OUTLINE
1-4
OUTLINE

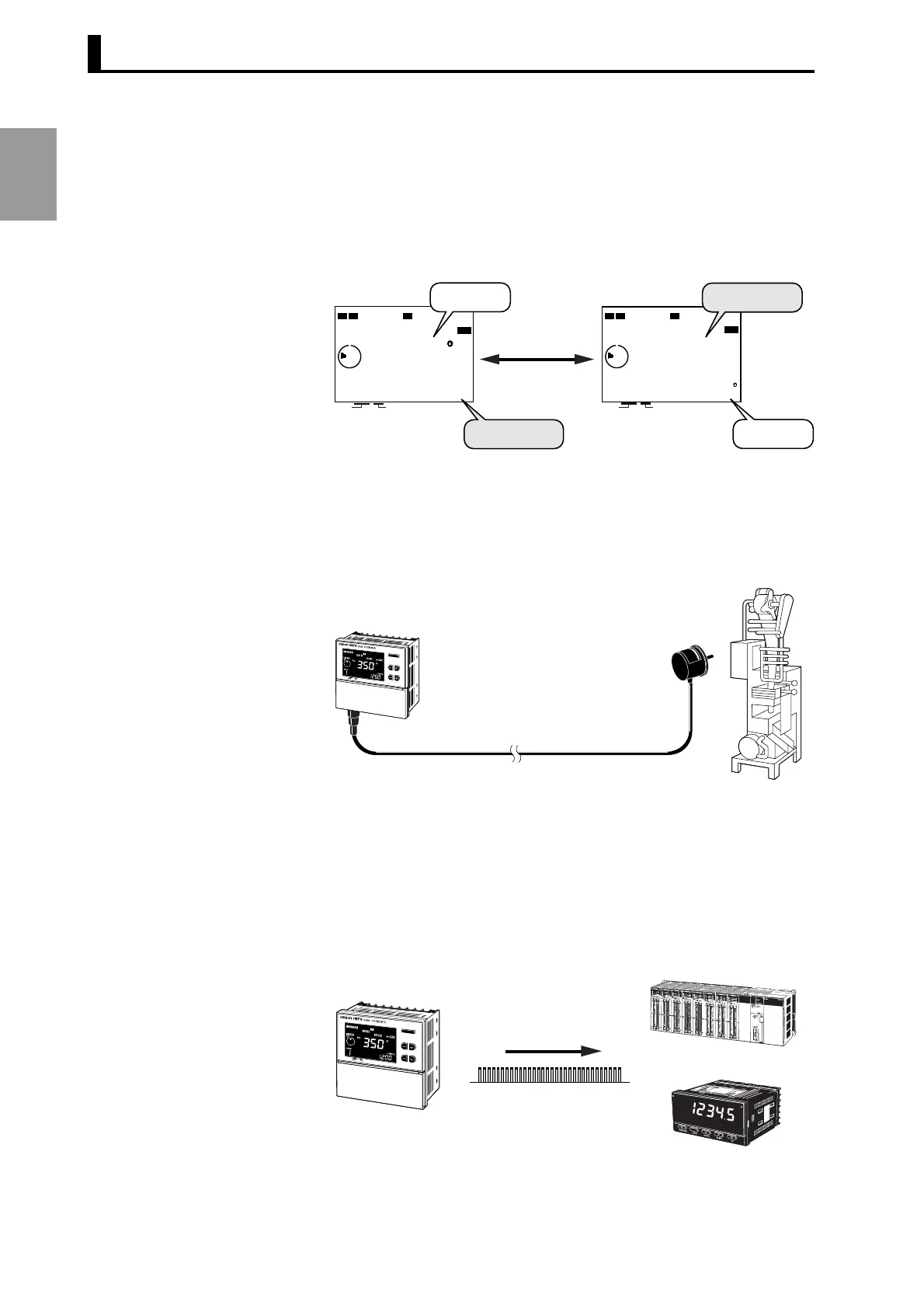

● Can be used as a
rotation meter
using the rotational
speed display
function
The H8PS Cam Positioner can always display the rotational speed and
present angle on the same display screen. It is also possible to
display the rotational speed in enlarged characters as Main display. In
applications where a rotation meter is independently installed,
installing one H8PS Cam Positioner can satisfy the user's require-
ments.
● Can be connected
at a distance of up
to 100 m from the
control target
equipment
The encoder cable can be extended to a length of up to 100 m.
Operation is reliable even if the cam positioner is installed at a
distance from the control target equipment (encoder mounting
position).
● Facility to set the
desired number of
output pulses and
the desired pulse
output starting
angle
You can output the desired number of pulses at the desired timing
during one turn of the encoder. Since a variety of devices can be
connected to the cam positioner and it is easy to set the pulse output
starting angle, it has many applications in addition to displaying
revolution speeds, such as setting the timing of systems.
Refer to "4.4 Pulse Output (F1/F2)".
264
1580
r/ min
PV
ST
RUN
CAM
STEP
1580
264
r/ min
PV
ST
RUN
CAM
STEP
Switchable
Present angle
Rotational speed
Present angle
Rotational speed
12 7
12 7
CHECK
CAM
STEP
CAM
STEP
Max. 100 m ! Encoder cable
Pulse output
PLC
Rotation meter
CHECK
CAM
STEP
CAM
STEP
