Omron H8PS User Manual

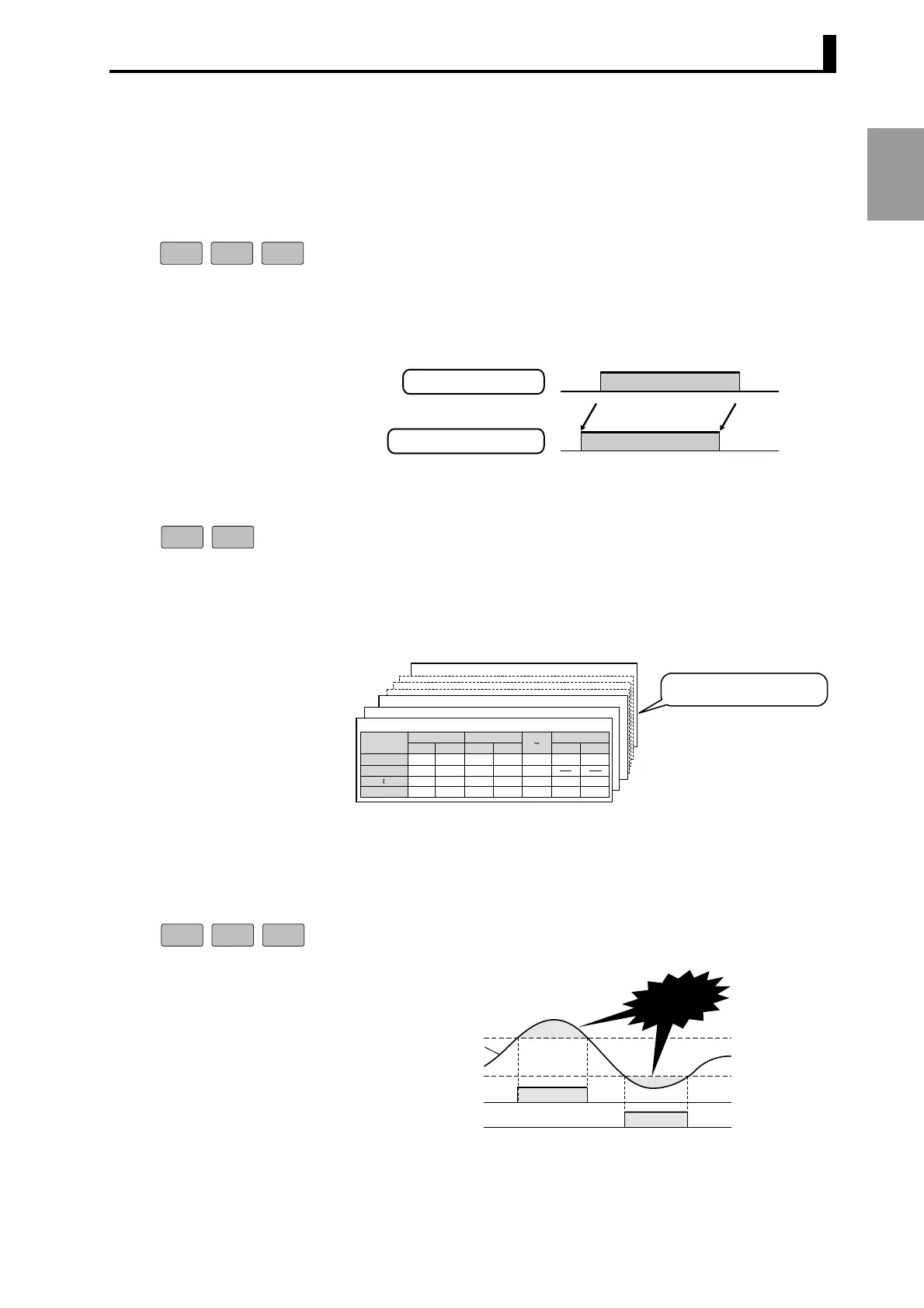

1.2 Features
1-5
OUTLINE
■ Convenient/Advanced Functions
● Advance angle
compensation
function
This function advances the ON/OFF timing from the preset angle in
proportion to the rotational speed of the machine (encoder). It
automatically compensates for the delay in output timing during high-
speed operation, eliminating the need to switch the program according
to the operation speed that is a characteristic of conventional systems.
Refer to "4.2 Advance Angle Compensation (ADV) Function".
Example When 2° is set to the angle advancement for a rotational
speed of 100 r/min
● Bank function The bank function allows registration of up to eight types of programs.
You can switch among them simply by selecting a desired program
when changing a setup or the targeted type of a workpiece.
The bank function also simplifies programming since it offers a
program copy function.
Refer to "4.8 Bank Function (F7/F8/F9)".
● Rotational speed
alarm (upper limit/
lower limit)
function
It is possible to set upper and lower limit values for the rotational
speed. When the actual rotational speed exceeds the upper-limit
value or falls below the lower-limit value, the corresponding alarm is
output.
Refer to "4.5 Speed Alarm (F3/F4)".
8 output 16 output 32 output
20°
Angle advancement of 10°
50°
10° 40°
In high-speed operation
(500r/min)
Cam program setting
16 output 32 output
Production of a wide variety
of products
Cam Program (Bank No. 7)
Cam Program (Bank No. 2)
Cam Program (Bank No. 1)
Cam Program (Bank No. 0)
Cam output
(cam number)
Step 0 Step 1 Step 9
ON angle OFF angle
145° 90° 135° 225° 270° 315°
20° 90° 135° 180°
32 90° 225° 270° 285° 315° 345°
OFF angle OFF angleON angle ON angle
8 output 16 output 32 output
Error occurs
Rotational speed
Upper limit alarm output
Lower limit alarm output
Upper limit value
Lower limit value
