Section 2 INSTALLATION
2-26
INSTALLATION

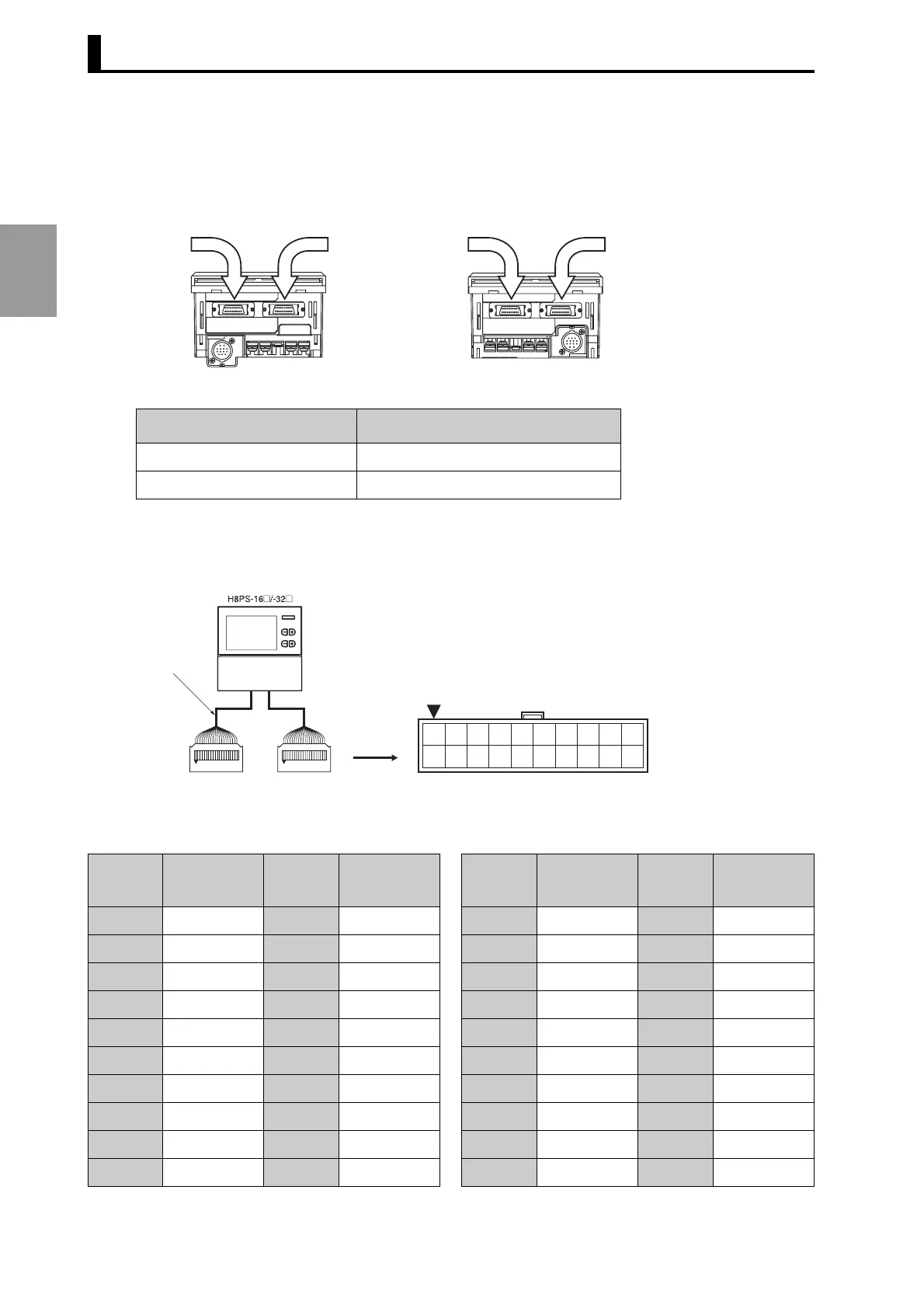

Output Cable Connections (16-/32-output Models Only)
* 16-output models do not have CN2 connector.
E5ZE-CBL200 Connector-type Output Cable (Order Separately) Connections
Wiring table - Output cable 1 Wiring table - Output cable 2
Output connector Output signal
Output connector (CN1) Cam 1 to Cam 16, COM and Vs
Output connector (CN2)* Cam 17 to Cam 32, COM and Vs
Output
Connector
pin No.
Output
Connector
pin No.
Output
Connector
pin No.
Output
Connector
pin No.
Cam 1 20 Cam 9 19 Cam 17 20 Cam 25 19
Cam 2 18 Cam 10 17 Cam 18 18 Cam 26 17
Cam 3 16 Cam 11 15 Cam 19 16 Cam 27 15
Cam 4 14 Cam 12 13 Cam 20 14 Cam 28 13
Cam 5 12 Cam 13 11 Cam 21 12 Cam 29 11
Cam 6 10 Cam 14 9 Cam 22 10 Cam 30 9
Cam 7 8 Cam 15 7 Cam 23 8 Cam 31 7
Cam 8 6 Cam 16 5 Cam 24 6 Cam 32 5
COM 4 COM 3 COM 4 COM 3
Vs 2 Vs 1 Vs 2 Vs 1
Output Connector 1 (CN1)
Output Connector 2 (CN2) (*)
Output Connector 1 (CN1)
Output Connector 2 (CN2) (*)
(Bottom view ) (Bottom view )
Flush Mounting Models
Surface Mounting Models
(CN1)
E5ZE-CBL200
Connector-type
Output Cable
(Order Separately)
(CN2)
XG4M-2030
MIL Connector
(made by OMRON)
1 3 5 7 9 1113151719
2 4 6 8 10 12 14 16 18 20
Pin Arrangement of XG4M-2030 Connectors
Output
Cable 1
Output
Cable 2
