Omron H8PS - Page 58

Section 2 INSTALLATION
2-28
INSTALLATION

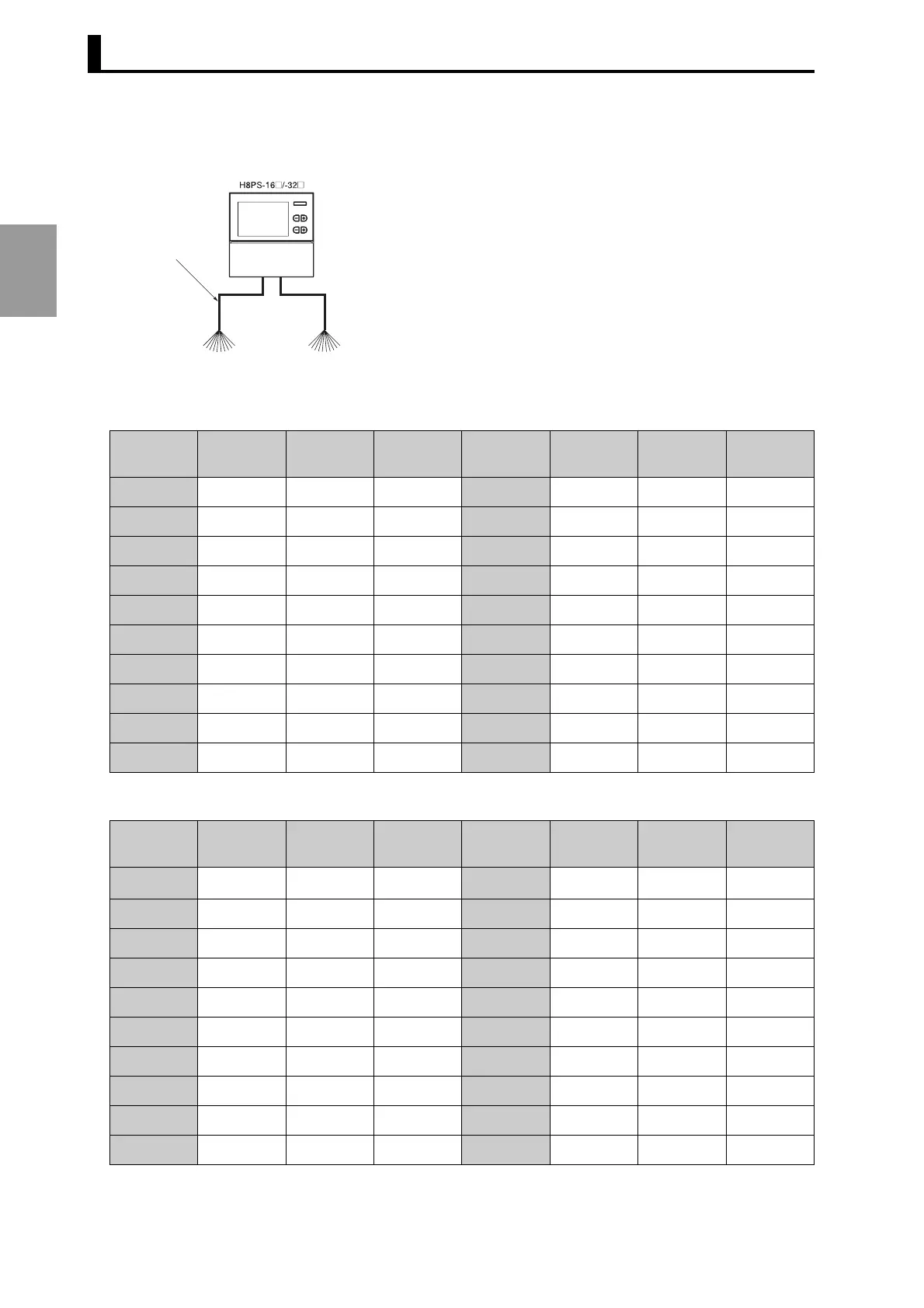

● Y92S-41-200 Discrete Wire Output Cable (Order Separately) Connections
Output Cable 1 Wiring Table
Output Cable 2 Wiring Table
Outputs
Cable
color
Marks
Marking
color
Outputs
Cable
color
Marks
Marking
color
Cam 1 Orange ■ Black Cam 9 Orange ■ Red
Cam 2 Gray ■ Black Cam 10 Gray ■ Red
Cam 3 White ■ Black Cam 11 White ■ Red
Cam 4 Yellow ■ Black Cam 12 Yellow ■ Red
Cam 5 Pink ■ Black Cam 13 Pink ■ Red
Cam 6 Orange ■ ■ Black Cam 14 Orange ■ ■ Red
Cam 7 Gray ■ ■ Black Cam 15 Gray ■ ■ Red
Cam 8 White ■ ■ Black Cam 16 White ■ ■ Red
COM Yellow ■ ■ Black COM Yellow ■ ■ Red
Vs Pink ■ ■ Black Vs Pink ■ ■ Red
Outputs
Cable
color
Marks
Marking
color
Outputs
Cable
color
Marks
Marking
color
Cam 17
Orange
■
Black
Cam 25 Orange
■
Red
Cam 18 Gray ■ Black Cam 26 Gray ■ Red
Cam 19 White ■ Black Cam 27 White ■ Red
Cam 20 Yellow ■ Black Cam 28 Yellow ■ Red
Cam 21 Pink ■ Black Cam 29 Pink ■ Red
Cam 22 Orange ■ ■ Black Cam 30 Orange ■ ■ Red
Cam 23 Gray ■ ■ Black Cam 31 Gray ■ ■ Red
Cam 24 White ■ ■ Black Cam 32 White ■ ■ Red
COM Yellow ■ ■ Black COM Yellow ■ ■ Red
Vs Pink ■ ■ Black Vs Pink ■ ■ Red
(CN1)
Y92S-41-200
Discrete Wire
Output Cable
(Order Separately)
Output Cable 2 Output Cable 1
(CN2)
