Omron K3MA-J User Manual

6-7
FUNCTION
DESCRIPTION

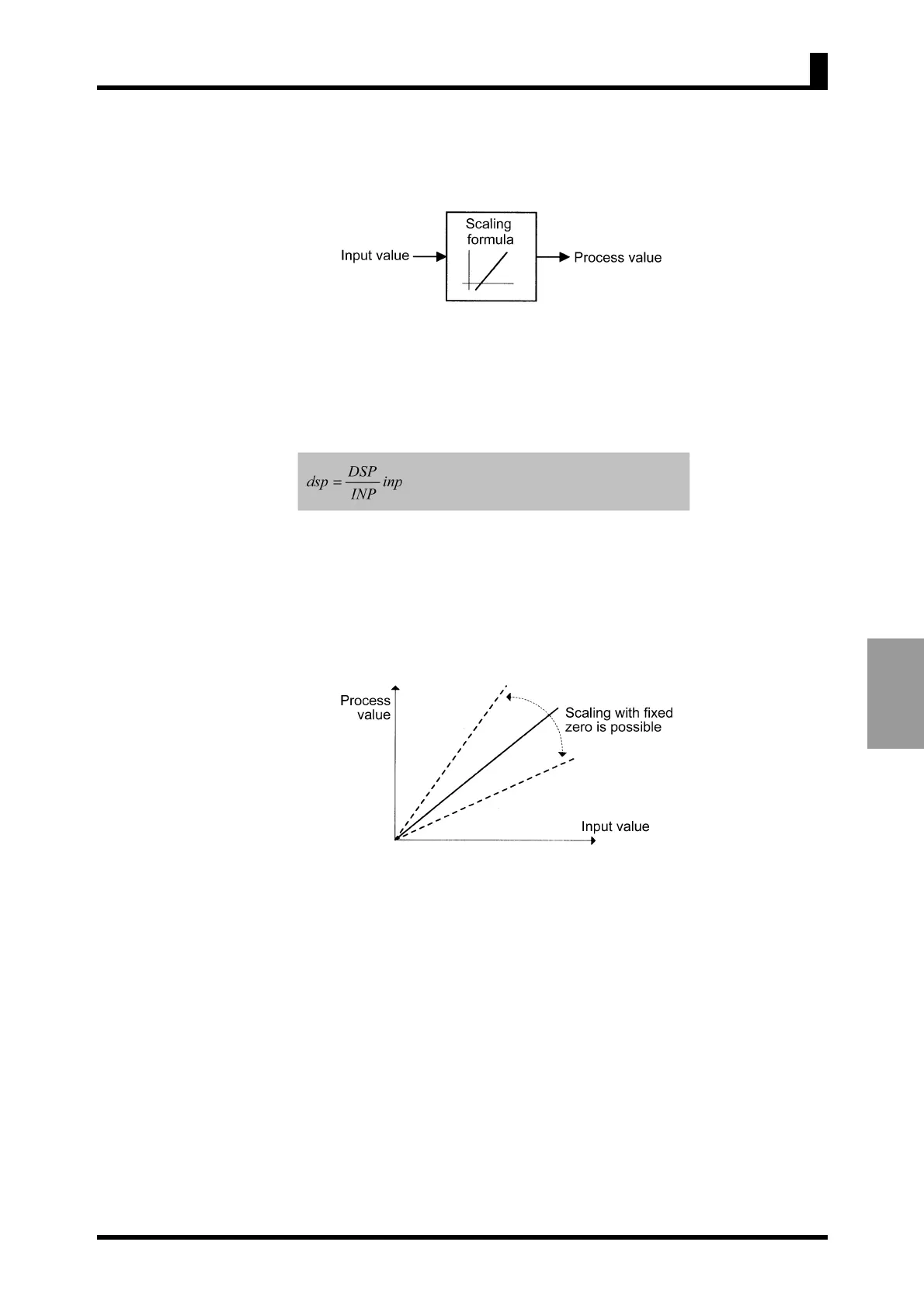

 Scaling
Scaling is to convert sampled input values to process values in sequence using a
predetermined scaling formula.
Scaling allows conversion of input values to process values in easy-to-understand
notation.
The scaling formula for pulse input is as follows.
Where;
INP: Input pulse frequency (Hz) corresponding to process value DSP
DSP: Process value corresponding to input pulse frequency INP
inp: Input pulse frequency (Hz)
dsp: Process value corresponding to inp
Enter INP and DSP to specify the scaling factor.
6-3 Measurement (K3MA-F)
