2-1 Starting the Ladder Monitor
34

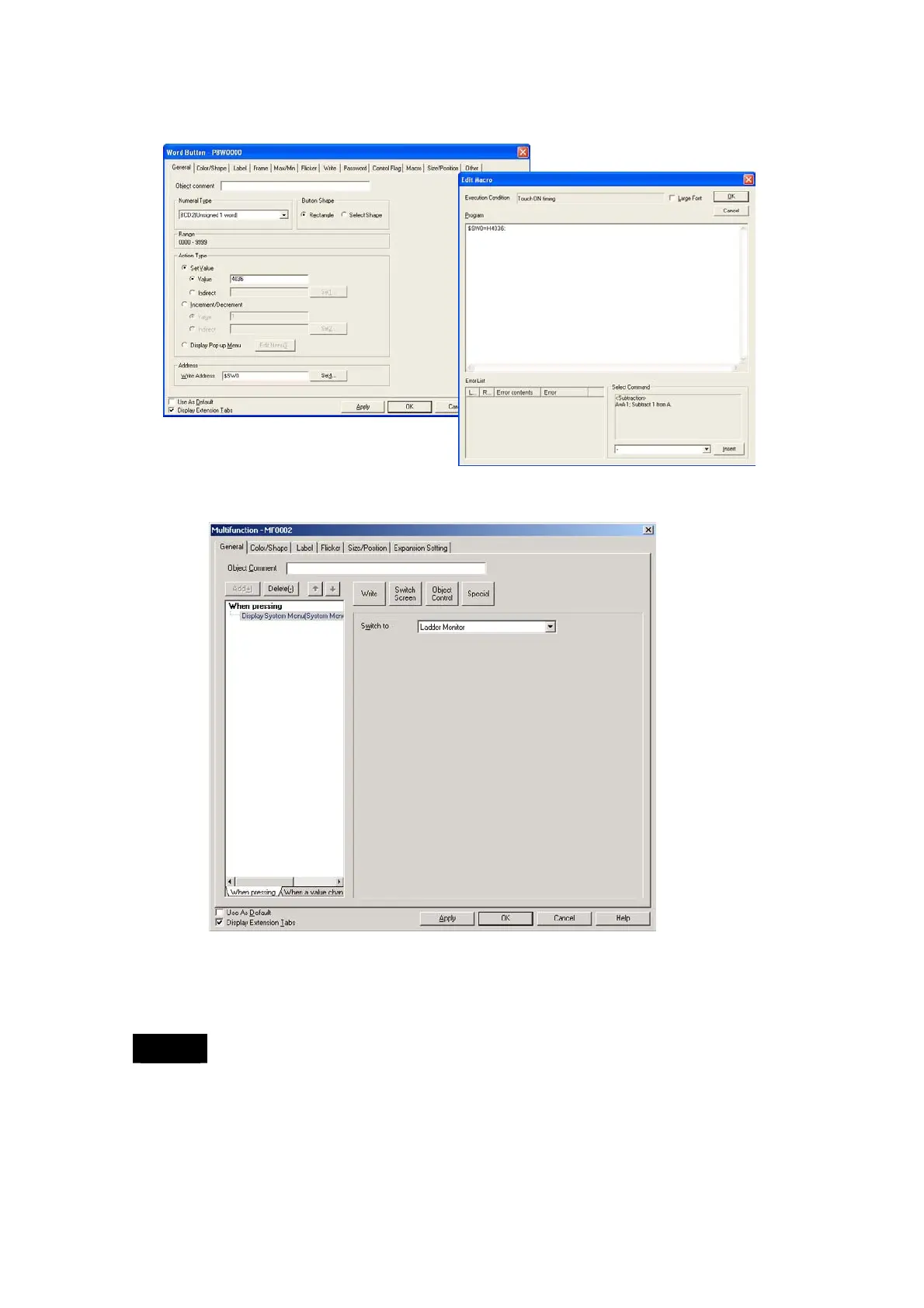

Fig. 1: When the Value Set for $SW0 Is Stored in BCD
Fig. 2: When A Multifunction Object Is Used
Operation on the PT Screen
1. Activate the object with setting 1 on the PT.
2. The Ladder Monitor will be started.
Note
To set $SW0, use the data type (binary/BCD) set in the Initial Value for System
Memory. (Select PT – System Settings and then click the System Memory List
Button on the Initial Tab Page in the CX-Designer).
•
Starting from the Alarm/Event Summary and History
With NS-series PT system version 8.0 or higher, the Ladder Monitor can be started from
the Alarm/Event Summary and History.
Setting Procedure
To Next Page
