Connecting to the Host’s RS-232C Port
Section 5-1
Note The maximum tensile load of the recommended cable is 30 N. Do not exceed this
load.
After connecting a connecting cable, always tighten the connector screws.
Recommended connectors, cables and crimp terminals for RS-422A/485
When making an RS-422A/485 connecting cable, as far as possible use the rec-
ommended parts indicated in the table below. Some units come supplied with
one connector and connector hood.
Check the required parts and prepare them in advance.

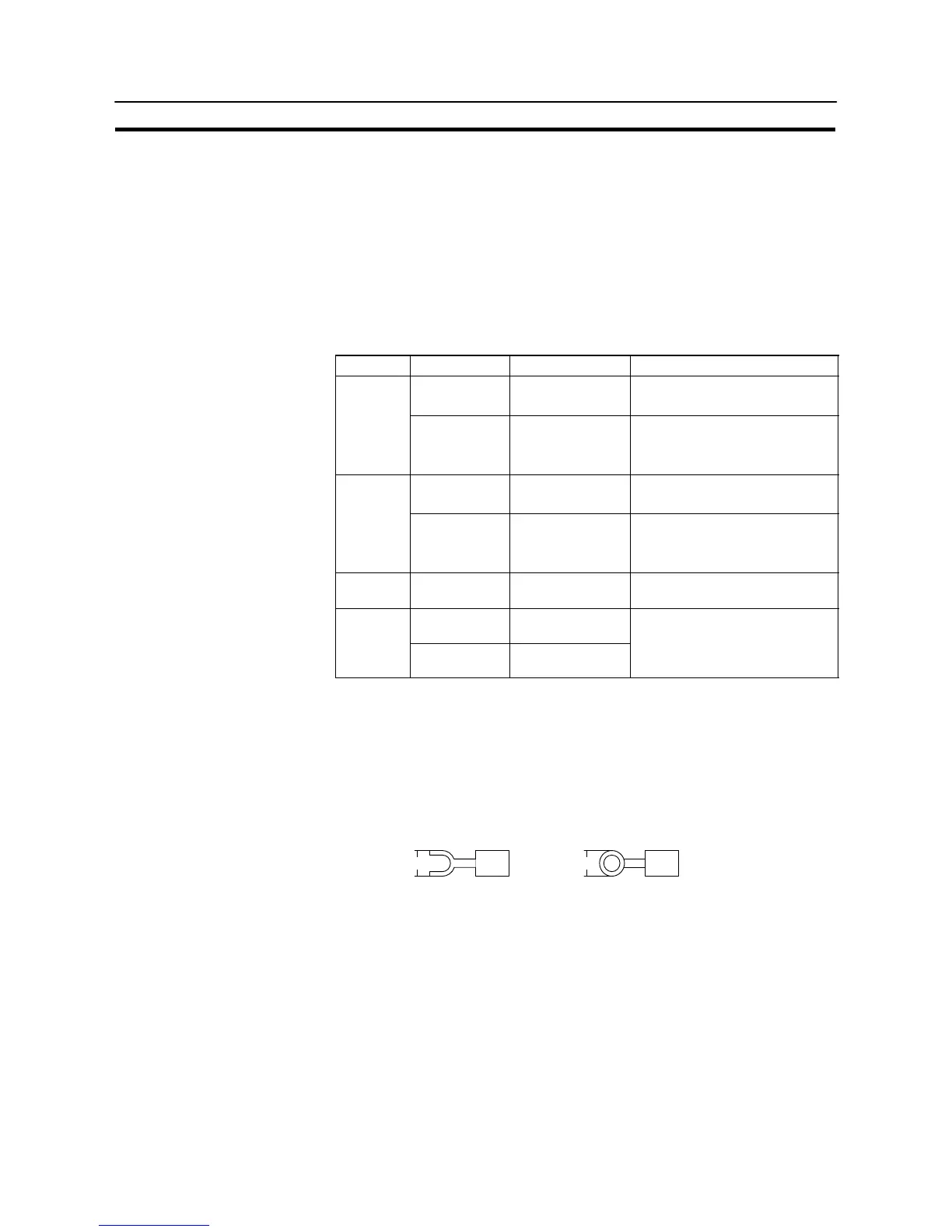

Name Model Maker Remarks
XM2A-2501
25-pin type
Made by OMRON
Delivered with the following units:
C500-LK203
Connector
DB-25P F-N
25-pin type
Made by JAE
Delivered with the following units:
3G2A6-LK201-EV1
3G2A5-LK201-EV1
XM2S-2511
25-pin type
Made by OMRON
Delivered with the following units:
C500-LK203
Connector
hood
DB-C2-J9
25-pin type
Made by JAE
Delivered with the following units:
3G2A6-LK201-EV1
3G2A5-LK201-EV1
Cable TKVVBS4P-03
Tachii Electric
Wire Co., Ltd.
Crimp
1.25-N3A
(fork type)
Japan Solderless
Terminal MFG
Recommended cable size:
Crimp
terminals
Y1.25-3.5L
(fork type)
Morex Inc.
AWG22 to 18
(0.3 to 0.75 mm
2
)
The terminal screws of the NT-AL001 are M3 specification. When wiring, use
crimp terminals for M3 use. Tighten terminal screws with a tightening torque of
0.5 N@m.
Note Always use crimp terminals for wiring.
- Examples of applicable terminals
Fork type
6.2 mm or less
Round type
6.2 mm or less
To Next Page
