Touch Switches
Section 7-7
S Cursor moving key function

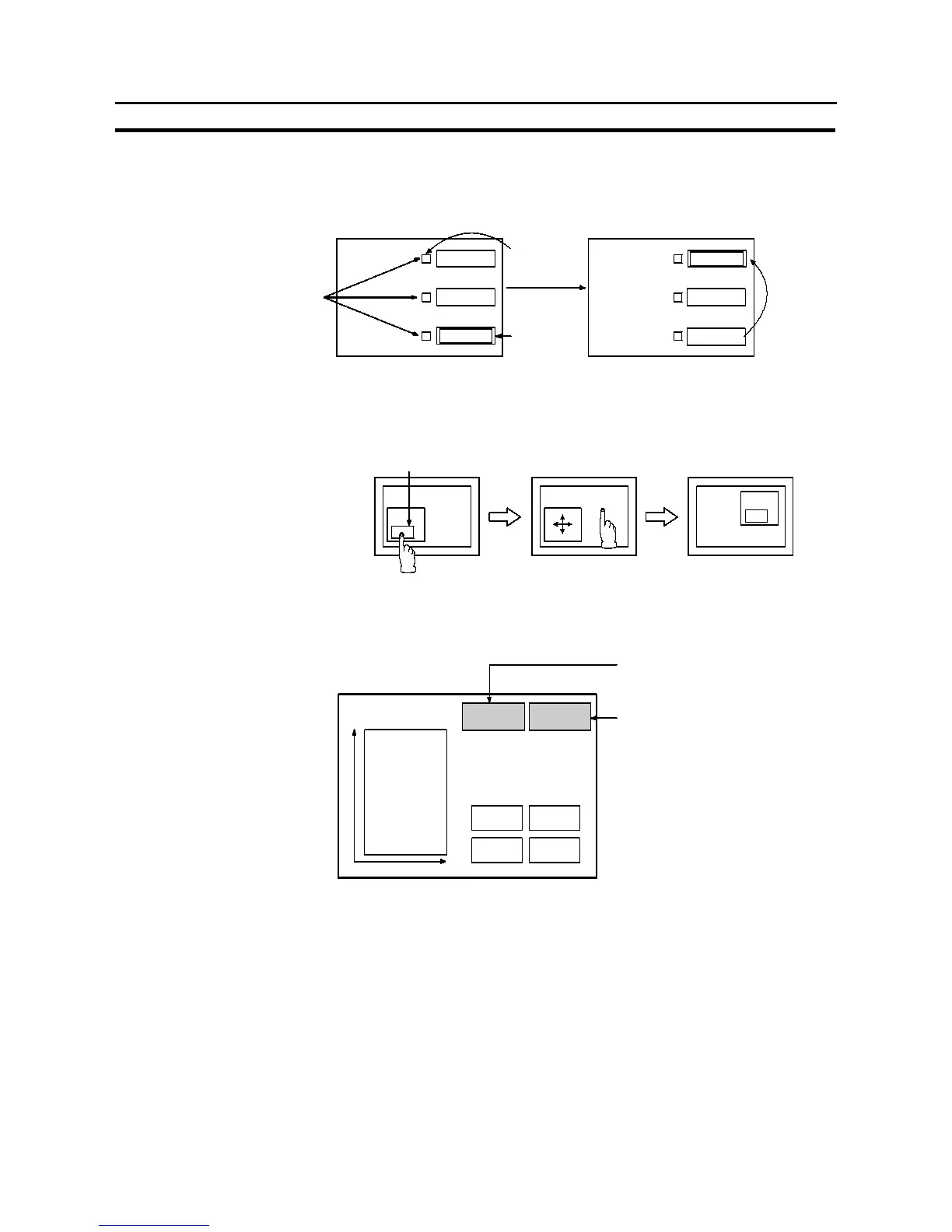

When there are a number of numeral setting or character string input fields on
the screen, this function makes it possible to move the cursor to any required
input field.
Cursor
moving keys
Press here
Input position
Input position
moves
S Window move
By pressing a touch switch on a window, the window can be moved by touch
panel operation at NT31/NT31C.
Move
Move
Window move touch switch.
Touch the center of the position where
the window will be moved to.
S Screen print key function
This function allows a hard copy of the currently displayed screen to be printed
out at a printer connected to the NT31/NT31C by pressing a touch switch.
+10 +1
#
10
#
1
Screen hard copy cancel key
When this key is pressed, printing of th
screen hard copy is canceled.
[Temperature adjustment]
COPY
START
COPY
CANCEL
Current temp.: 20
_
C
Set temp: 20
_
C
Screen hard copy start key
When this key is pressed,
printing of a screen hard copy is started.
[Restrictions]
S A maximum of 256 touch switches can be registered for one screen. (Same for
window screen.) For an overlapping screen comprising 8 child screens, the
maximum is 256 per screen.
There is no restriction on the number of touch switches that canbe registered for
one screen data file: any number can be registered as long as the data file ca-
pacity is not exceeded. However, if a large number of elements are registered,
check that the restrictions on element display are complied with by referring to
“Display Restrictions” (page 644).
S When polygons are used as the display graphics for touch switches, one poly-
gon can be given up to 255 vertices.
