Omron NT31 User Manual

427
Inputting Numeric Values
Section 7-12

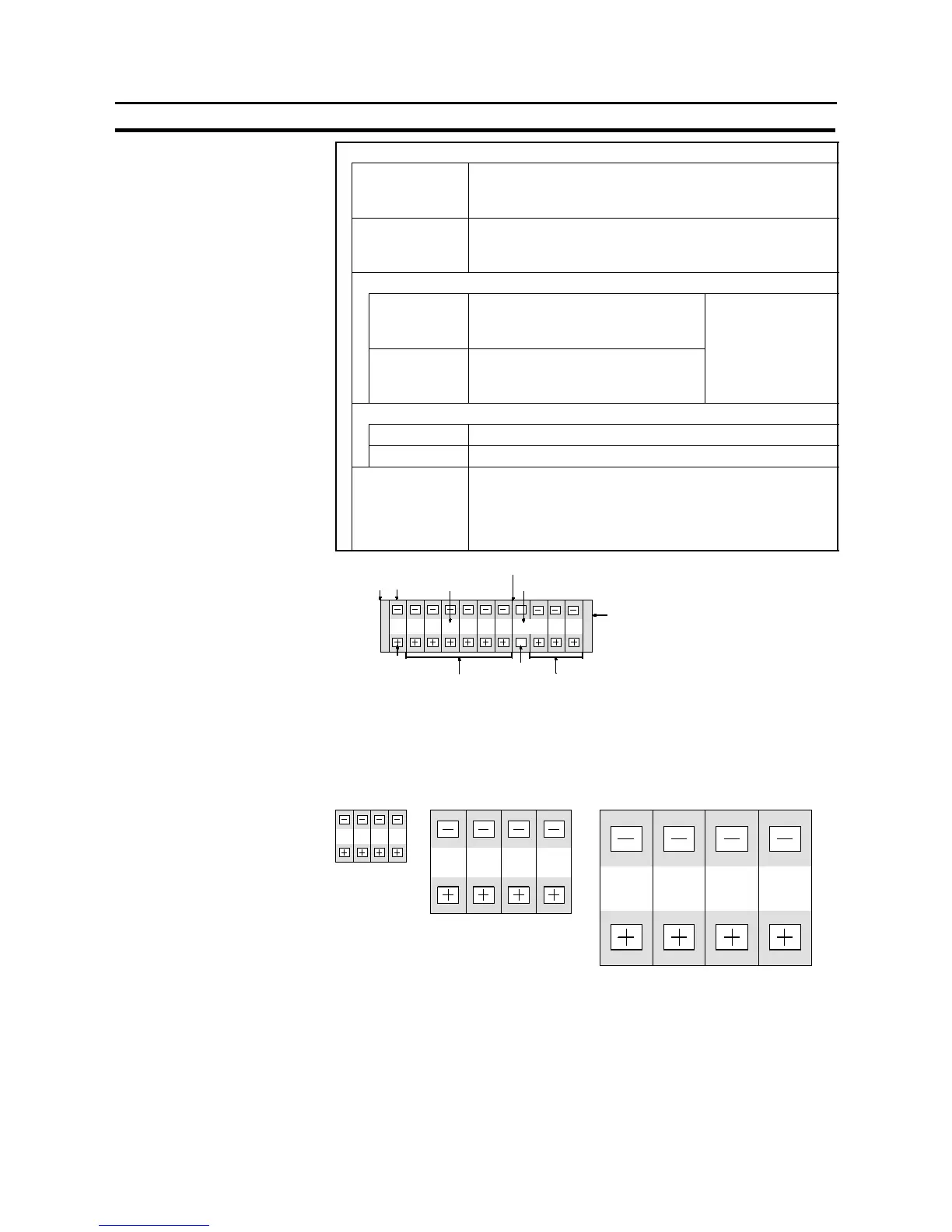

Settings
Table Entry Number of the numeral memory table into which the input
numeric value is written
Range: 0 to 1999
Display Type Display format for the numeric value (“Input numeric value
and stored data”, page 428)
Decimal/Hexadecimal
Format (“Number of digits displayed”, page 428)
Integer Number of digits in the integer part of
the numeric value
Range: 1 to 10
Maximum combined
Decimal Number of digits in the decimal
fraction of the numeric value
Range: 0 to 9
M
a
x
i
m
u
m
c
o
m
b
i
n
e
d
total of 10 digits
Limit (“Upper/lower (max./min.) limit check”, page 431)
Maximum Upper limit for numeric values that can be input
Minimum Lower limit for numeric values that can be input
Display Sign Whether or not negative numbers are indicated (setting
ineffective if “Hexadecimal” has been set for “Display
Format”) (“Input numeric value and stored data”, page 428)
Check mark (negative numbers indicated)/
No check mark (negative numbers not indicated)
000000. 000
Color of the input field (foreground/background color of tiling pattern)
Position Frame color Character color Background color of numerals
End plate
Sign display
Number of digits in integer part
Decimal point
Number of digits in decimal fraction
S Enlarged display
Thumbwheel type numeral setting input fields can be displayed in the following
three sizes. The sizes of the touch switches in each case are 1
×
1, 2
×
2, and
3
×
3, taking the minimum unit (20
×
20 dots) as the reference.
1234
1234
Small Medium Large
1234
