428
Inputting Numeric Values
Section 7-12

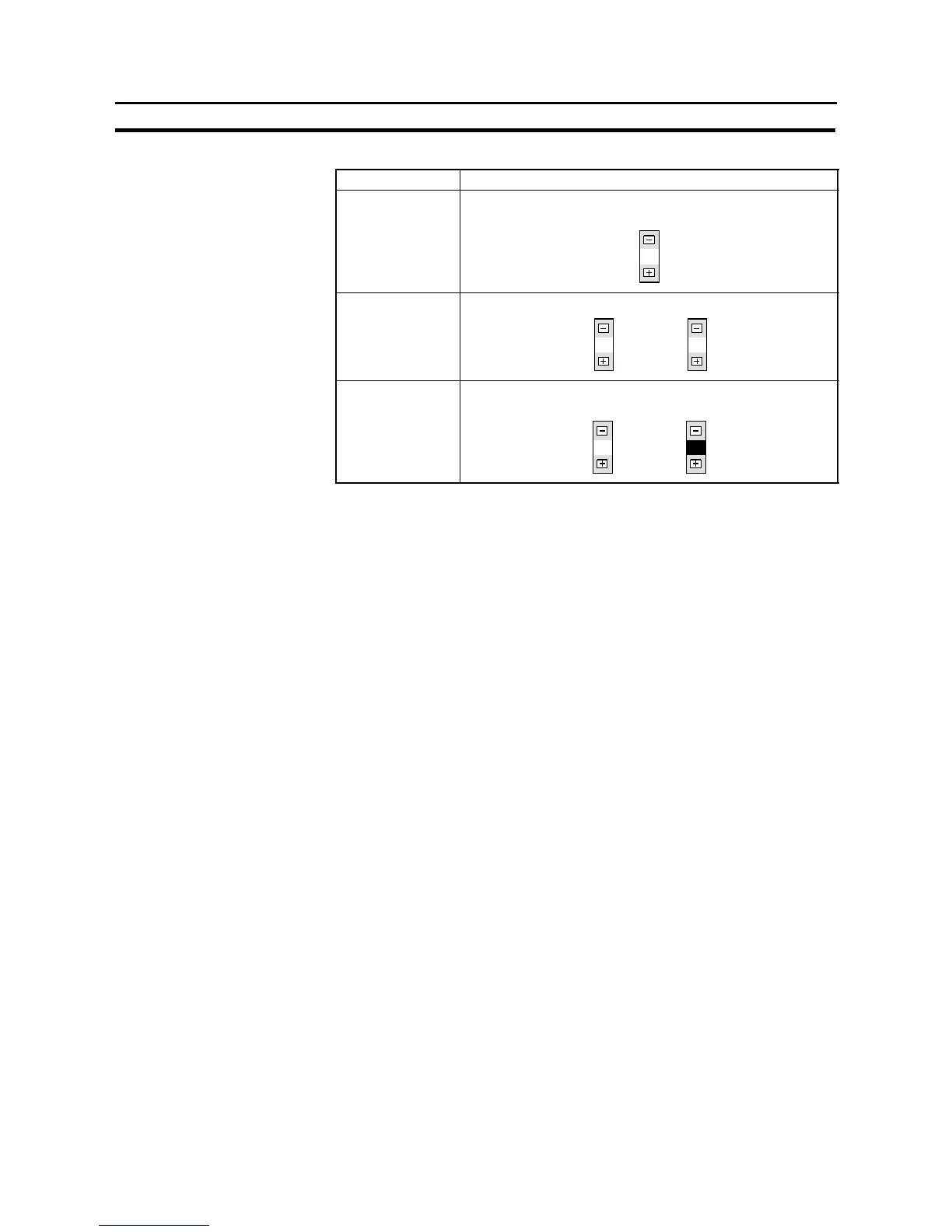

S Display attributes and drawing result
Display Attribute Drawing Result
Standard The numeral setting input field is displayed with the specified
foreground color and background color.
1
Flash Repeated alternation of the “standard” display and no display.
%
1
Inverse Flash Repeated exchange of the foreground color and background
color.
%
1
1
S Number of digits displayed
All contents of numeral memory tables are stored as integers. To display a nu-
meric value that has a decimal fraction in a numeral setting input field, set the
“Decimal” setting to “1” or higher to specify the number of places after the deci-
mal point. A decimal point is then automatically inserted.
The maximum combined total of digits in the integer part and decimal fraction
part is 10 digits. The integer part must always comprise at least one digit.
Note that if the number of digits of the numeric value is greater than the total of
the settings for “Integer” and “Decimal”, an error occurs and “
#
” is displayed for
all the digits.
Example:
Displaying “123456”
- Setting for “Integer” = 8; setting for “Decimal” = 0:
Resulting display: 00123456
- Setting for “Integer” = 4; setting for “Decimal” = 4:
Resulting display: 0012.3456
- Setting for “Integer” = 2, setting for “Decimal” = 4:
Resulting display: 12.3456
- Setting for “Integer” = 1, setting for “Decimal” = 4:
Resulting display:
######
S Input numeric value and stored data
The range of numeric values that can be input and the conversion method for
storage depend on the following settings.
Display Type (“Decimal”/“Hexadecimal”)
Display Sign (whether or not negative values are displayed)
To Next Page
