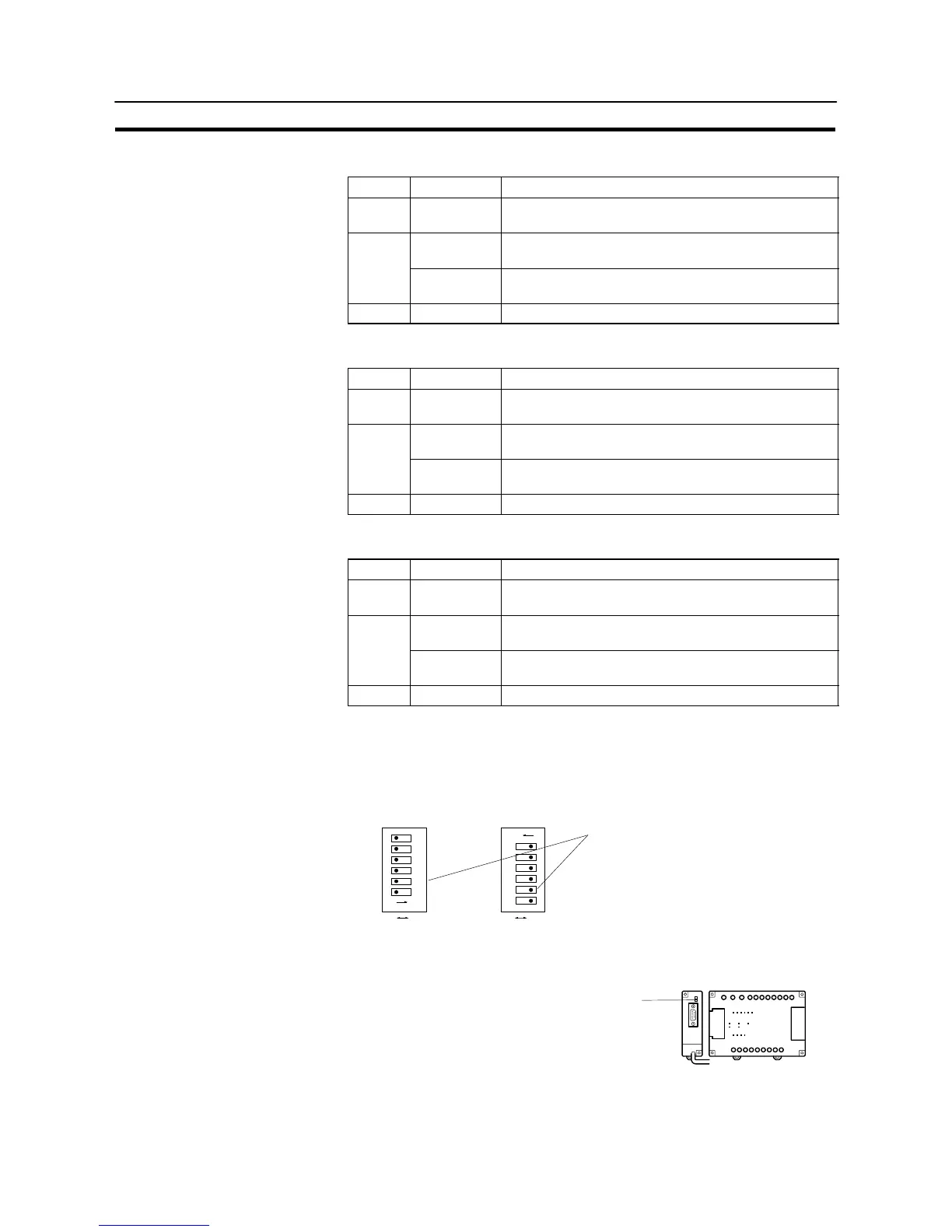

Connecting to the RS-232C Port at the Host
Section 4-1
When using port A of the communication board of C200HX/HG/HE (-ZE)
Word # Writing Value Settings
DM6555 0001 Host link mode, no CTS control
Communication conditions set by the contents of DM
DM6556 0303 Data length 7 bits, 2 stop bits, even parity,
communications speed: 9600 bps
0304 Data length 7 bits, 2 stop bits, even parity,
communications speed: 19200 bps
DM6558 0000 Unit # 00
When using port B of the communication board of C200HX/HG/HE (-ZE)
Word # Writing Value Settings
DM6550 0001 Host link mode, no CTS control
Communication conditions set by the contents of DM
DM6551 0303 Data length 7 bits, 2 stop bits, even parity,
communications speed: 9600 bps
0304 Data length 7 bits, 2 stop bits, even parity,
communications speed: 19200 bps
DM6553 0000 Unit # 00
When using a CPM1
Word # Writing Value Settings
DM6650 0001 Host link mode
Communication conditions set by the contents of DM
DM6651 0303 Data length 7 bits, 2 stop bits, even parity,
communications speed: 9600 bps
0304 Data length 7 bits, 2 stop bits, even parity,
communications speed: 19200 bps
DM6653 0000 Unit # 00
[Setting the DIP switches on the front of a C200HX/HG/HE (-ZE)]
When using a C200HX/HG/HE (-ZE) or CQM1, the DIP switches on the front
panel must be set as shown below in order to make the settings in the PC sys-
tem setting area (data memory) effective.
OFFONONOFF
1
2
3
4
5
6
ON
ON
C200HX/HG/HE-(Z)E
CQM1
RS-232C port communication condition setting
Set DIP SW5 to “OFF” to make the settings
made in PC system setting effective.
1
2
3
4
5
6
[Setting the switches on a CPM1 RS-232C adapter]
CPM1
Set the mode setting switch to “HOST” (upper position).
CPM1-
CIF01
