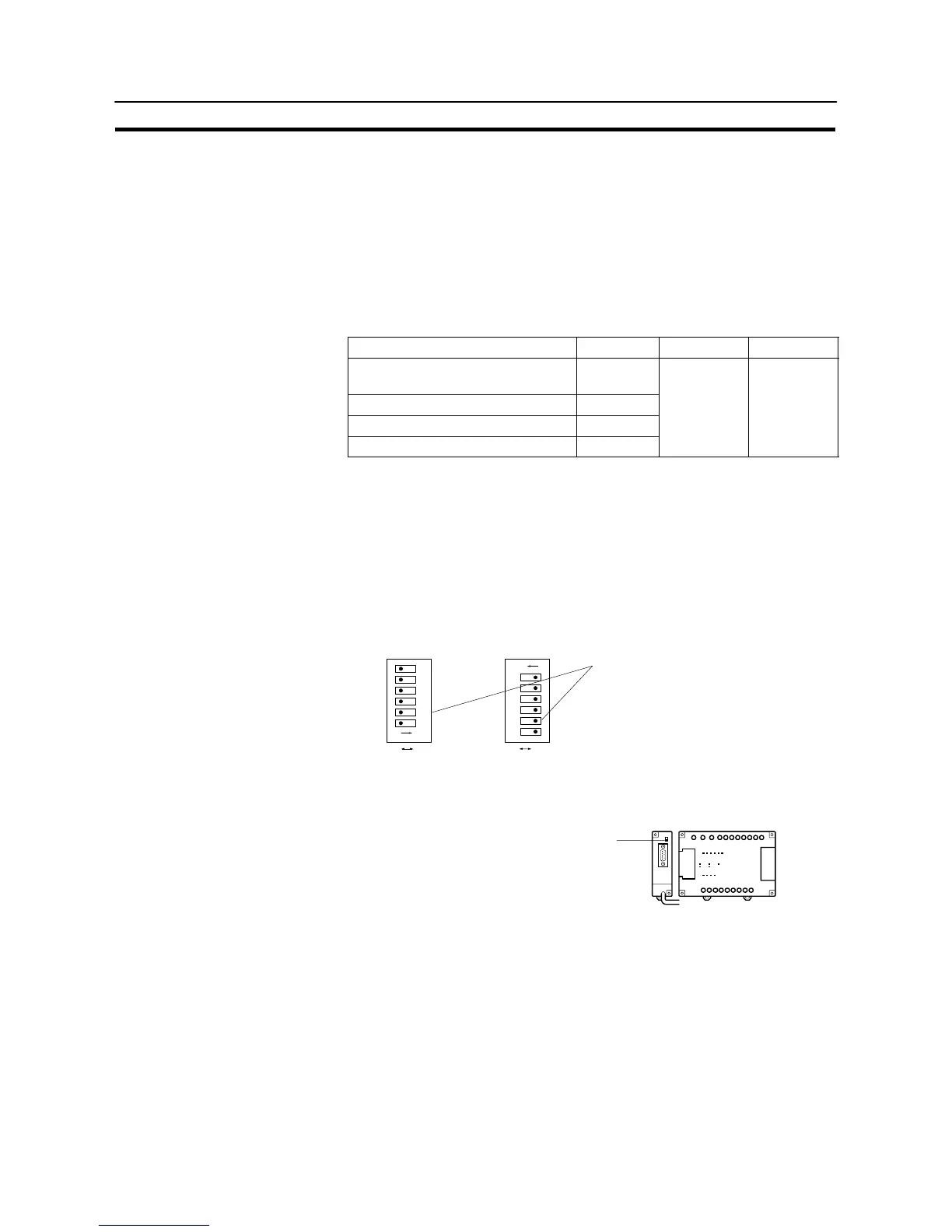

Connecting to the RS-232C Port at the Host
Section 4-1
S Settings at the host
The setting methods for each unit are as follows.
S Connecting to a C-series C200HS, C200HX/HG/HE(-ZE), CPM1, CQM1,
SRM1
[PC system setting area settings]
Write the “PC system setting area” (data memory) settings directly from a pe-
ripheral tool (e.g. SYSMAC support software) in accordance with the host
model and port.
Host Model Word # Writing Value Setting
RS-232C port of C200HS,
C200HX/HG/HE(-ZE), CQM1, SRM1
DM6645
Port A of C200HX/HG/HE(-ZE)
(*1)
DM6555
4000
Use NT link
Port B of C200HX/HG/HE(-ZE)
(*1)
DM6550
4000
(1:1)
CPM1 DM6650
*1 RS-232C port of the communication board
For details on operations relating to the “PC system setting area”, refer to the
manual for the PC which is used.
[Setting the DIP switches on the front of a C200HX/HG/HE(-ZE)]
When using a C200HX/HG/HE(-ZE) or CQM1, the DIP switches on the front
panel must be set as shown below in order to make the settings in the “PC
system setting area” (data memory) effective.
C200HX/HG/HE-(Z)E CQM1
RS-232C port communication condition setting
Set DIP SW5 to “OFF” to make the settings
made in PC system setting effective.
OFF ON
1
2
3
4
5
6
1
2
3
4
5
6
ON
OFFON
ON
[Setting the switches on a CPM1 RS-232C adapter]
CPM1-
CIF01
Set the mode setting switch to “NT” (lower position).
