Omron NX-AD series - System Configuration of Slave Terminals

1 - 5
1 Features and System Configuration
NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)
1-2 System Configuration
1
1-2-2 System Configuration of Slave Terminals
A building-block remote I/O slave provided with a group of NX Units connected to a Communications
Coupler Unit is generically called a Slave Terminal.
The NX Units can be flexibly combined with a Communications Coupler Unit to achieve the optimum
remote I/O slave for the application with less wiring, less work, and less space.

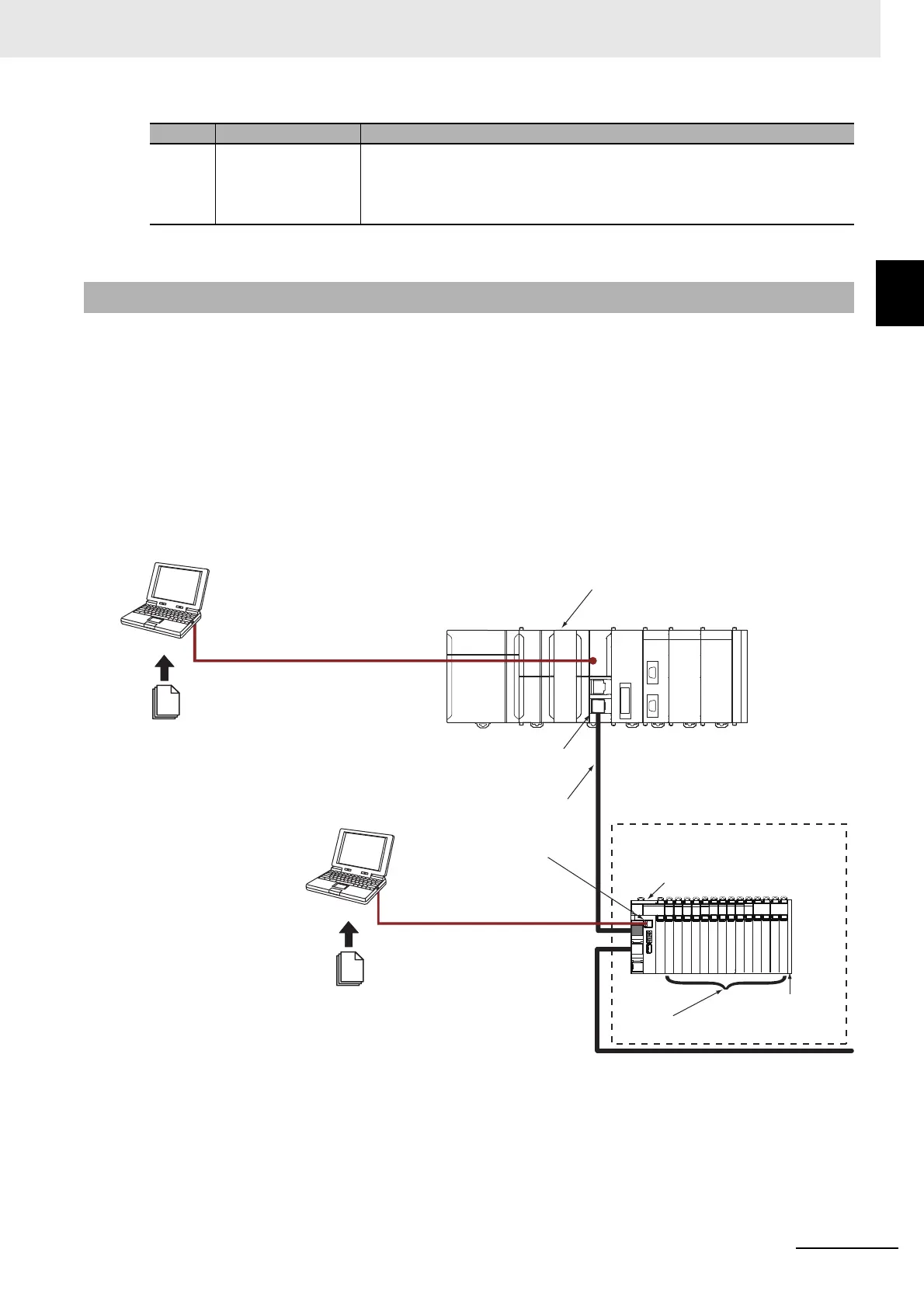

The following figure shows an example of the system configuration when an EtherCAT Coupler Unit is
used as a Communications Coupler Unit.
Refer to the user’s manual for the connected Communications Coupler Unit for details on how to config-
ure the system when any other type of Communications Coupler Unit is used.
*1. The connection method for the Support Software depends on the model of the CPU Unit or Industrial PC.
(D) Support Software
(Sysmac Studio)
A computer software application for setting, programming, debugging, and
troubleshooting NJ/NX/NY-series Controllers.
For an NX1P2 CPU Unit, this application performs setting operation by making
a connection to a built-in EtherNet/IP port.
1-2-2 System Configuration of Slave Terminals
Symbol Item Description
(A) EtherCAT master
NJ/NX-series CPU Unit, NY-series Industrial PC,
or master from another manufacturer
(G) Communications cable
Ethernet cables
(B) NX Series
EtherCAT Coupler Unit
NX-ECC20
• EtherCAT Slave Terminal
(E) Support Software
*1
(E) Support Software
(F) ESI files
(D) End Cover
(C) NX Units
EtherCAT port
(F) ESI files
Peripheral USB port
.xml
.xml
Connection to peripheral USB
port on EtherCAT Coupler Unit
