Appendices
NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)
A-7 Displaying the Edit Unit
Operation Settings Tab Page
A
A-7-2 Slave Terminal
This section describes how to display the Edit Unit Operation Settings Tab Page that is used to create
Unit operation settings on the Sysmac Studio for NX Units in the Slave Terminal.
You can use the methods described below to display the Edit Unit Operation Settings Tab Page on the
Edit Slave Terminal Configuration Tab Page on the Sysmac Studio.
Refer to the Sysmac Studio Version 1 Operation Manual (Cat. No. W504) for the method of displaying
the Edit Slave Terminal Configuration Tab Page.
Refer to the operation manual for the Support Software that you are using for the method of displaying
the Edit Slave Terminal Configuration Tab Page or Edit Unit Operation Settings Tab Page with Support
Software other than Sysmac Studio.

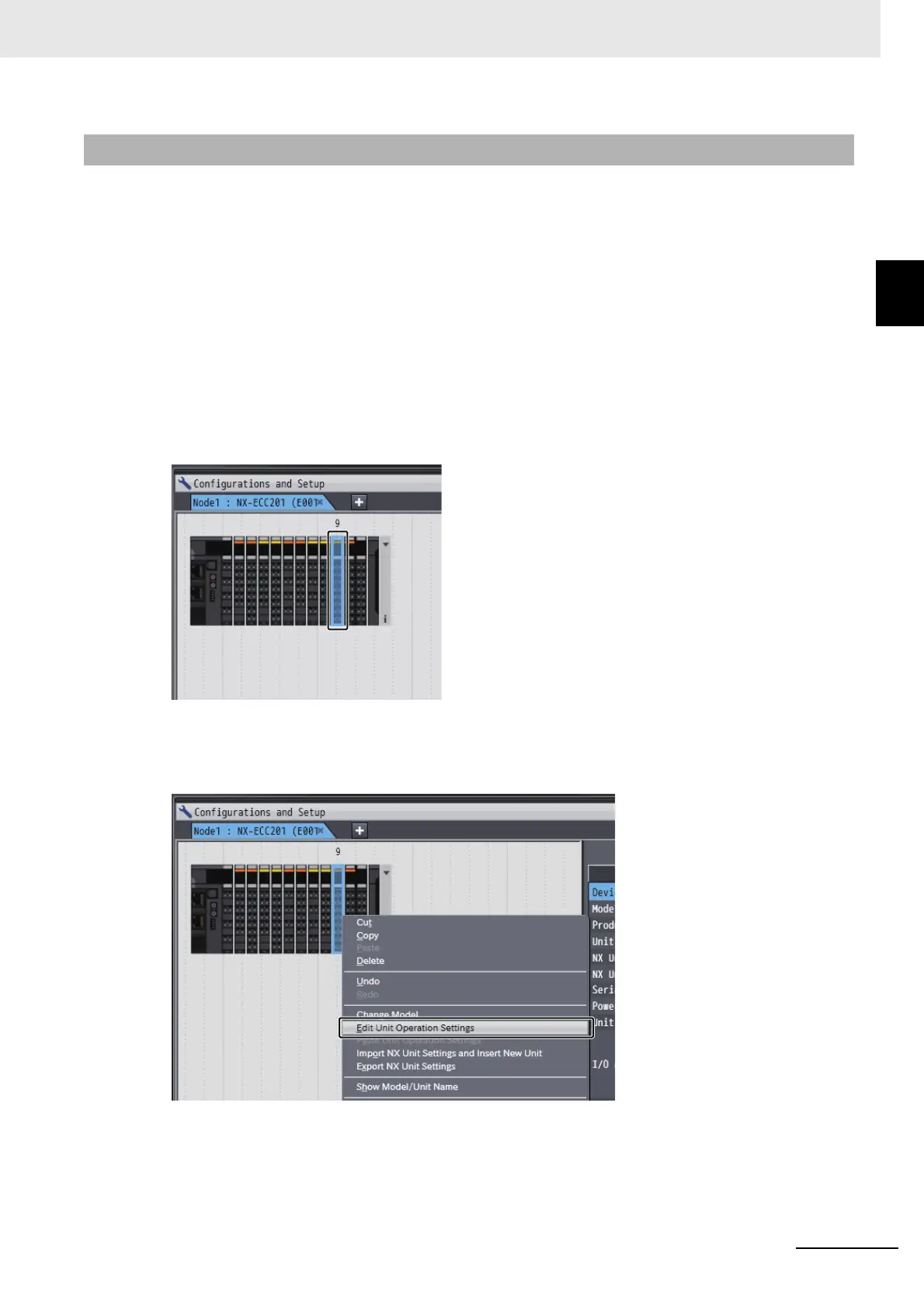

z Method 1
Double-click the NX Unit to set.
z Method 2
Right-click the NX Unit and select Edit Unit Operation Settings from the menu.
A-7-2 Slave Terminal
