7 - 3
7 Wiring
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
7-1 EtherNet/IP Network Wiring
7
7-1-3 Pin Arrangement of Communications Connectors on the EtherNet/IP Coupler Unit
Precautions for Safe Use
• Double-check all switches and other settings and double-check all wiring to make sure that
they are correct before turning ON the power supply. Use the correct wiring parts and tools
when you wire the system.
• Do not exceed the ranges that are given in the specifications for the communications dis-
tance and number of connected Units.
Precautions for Correct Use
• The maximum length between nodes is 100 m. However, some cables are specified for less
than 100 m. Generally speaking, if the conductors are twisted wire rather than solid wire,
transmission performance will be lower, and reliable communications may not be possible at
100 m. Confirm details with the cable manufacturer.

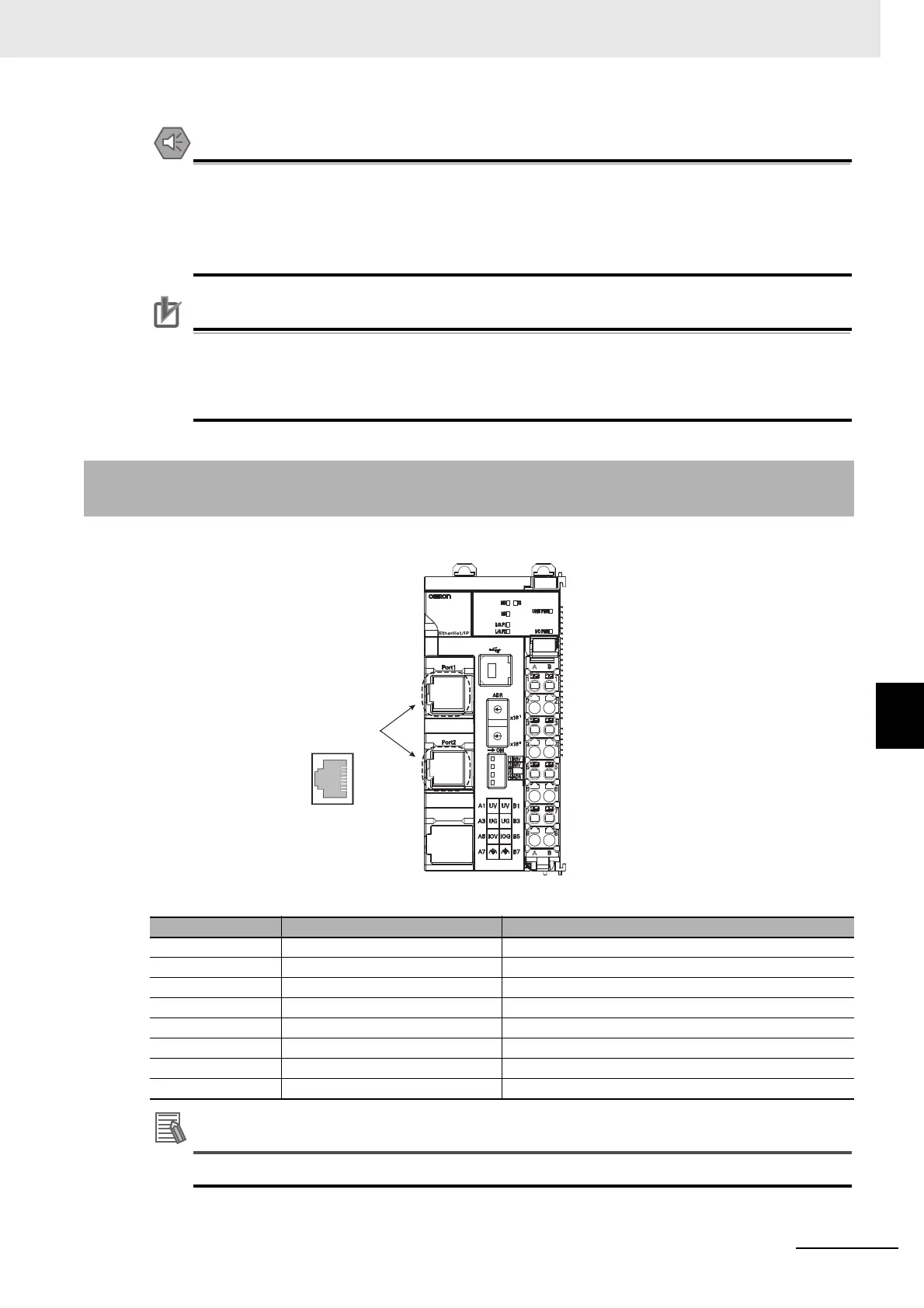

The pin arrangement of the Ethernet communications connectors is given below.
Additional Information
Refer to the NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506).
7-1-3 Pin Arrangement of Communications Connectors on the
EtherNet/IP Coupler Unit
Pin No. Signal name Abbreviation
1 Send data + TD+
2 Send data − TD−
3 Receive data + RD+
4 Not used − ---
5 Not used − ---
6 Receive data − RD−
7 Not used − ---
8 Not used − ---
Communications
connectors
1
8
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
NX-EIC202
1
2
6
5
4
3
7
8
AB
1
2
6
5
4
3
7
8
A
B
NET
