3 Part Names and Functions
NX-series Digital I/O Unit User’s Manual (W521)
3-1 Part Names
3
3-1-2 M3 Screw Terminal Block Type
3-1-2 M3 Screw Terminal Block Type

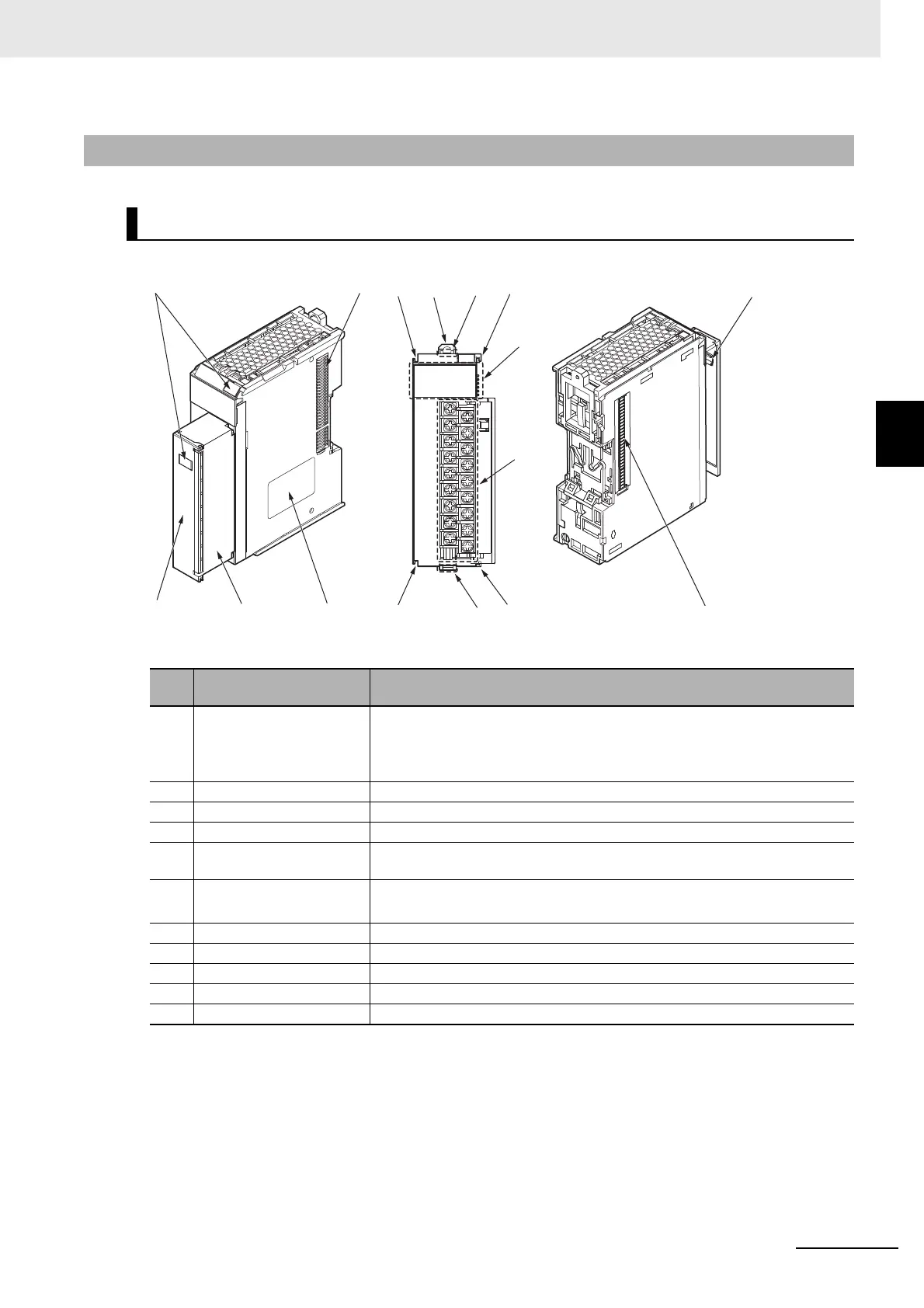

NX Units (30 mm Width)
Let-
ter
Name Function
(A) Marker attachment loca-
tions
The locations where markers are attached. The markers made by OMRON
are installed for the factory setting. Commercially available markers can also
be installed.
Refer to 4-1-2 Attaching Markers on page 4-4
(B) NX bus connector This connector is used to connect each Unit.
(C) Unit hookup guides These guides are used to connect two Units.
(D) DIN Track mounting hooks These hooks are used to mount the NX Unit to a DIN Track.
(E) Protrusions for removing
the Unit
The protrusions to hold when removing the Unit.
(F) Indicators The indicators show the current operating status of the Unit.
Refer to 3-2 Indicators on page 3-13
(G) Screw terminals These screw terminals are used to connect the wires.
(H) Terminal block lever This lever is used to fix the terminal block on the NX Unit.
(I) Unit specifications The specifications of the Unit are given.
(J) Terminal block The terminal block is used to connect external devices.
(K) Terminal block cover This cover is used to protect the screw terminals.
(C)
(D)
(J) (I)
(G)
(F)
(C)
(A)
(E)
(C) (B)
(C) (H)
(B)
(K)
(A)
