9 Setting Up Slave Terminals
9 - 46
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
Note 1. The H, W, D, and E characters can also be input in lower case as h, w, d, and e.
2. Be sure to directly enter the CPU Unit's I/O memory address (e.g., 100, W100, D0) or a network vari-
able as a character string.
6 Input the size of the tag in the Size Field, in bytes. The input size should match the actual size
(refer to section 9-5-4 Determine Tag Sizes on page 9-40 for more information).
7 Click the Regist button to register the tag.
If an I/O memory address is specified for a tag name, the Edit Tags Dialog Box will be displayed
with the next consecutive address as the tag name for editing the next tag. Once you have reg-
istered the tags, click the Cancel button.

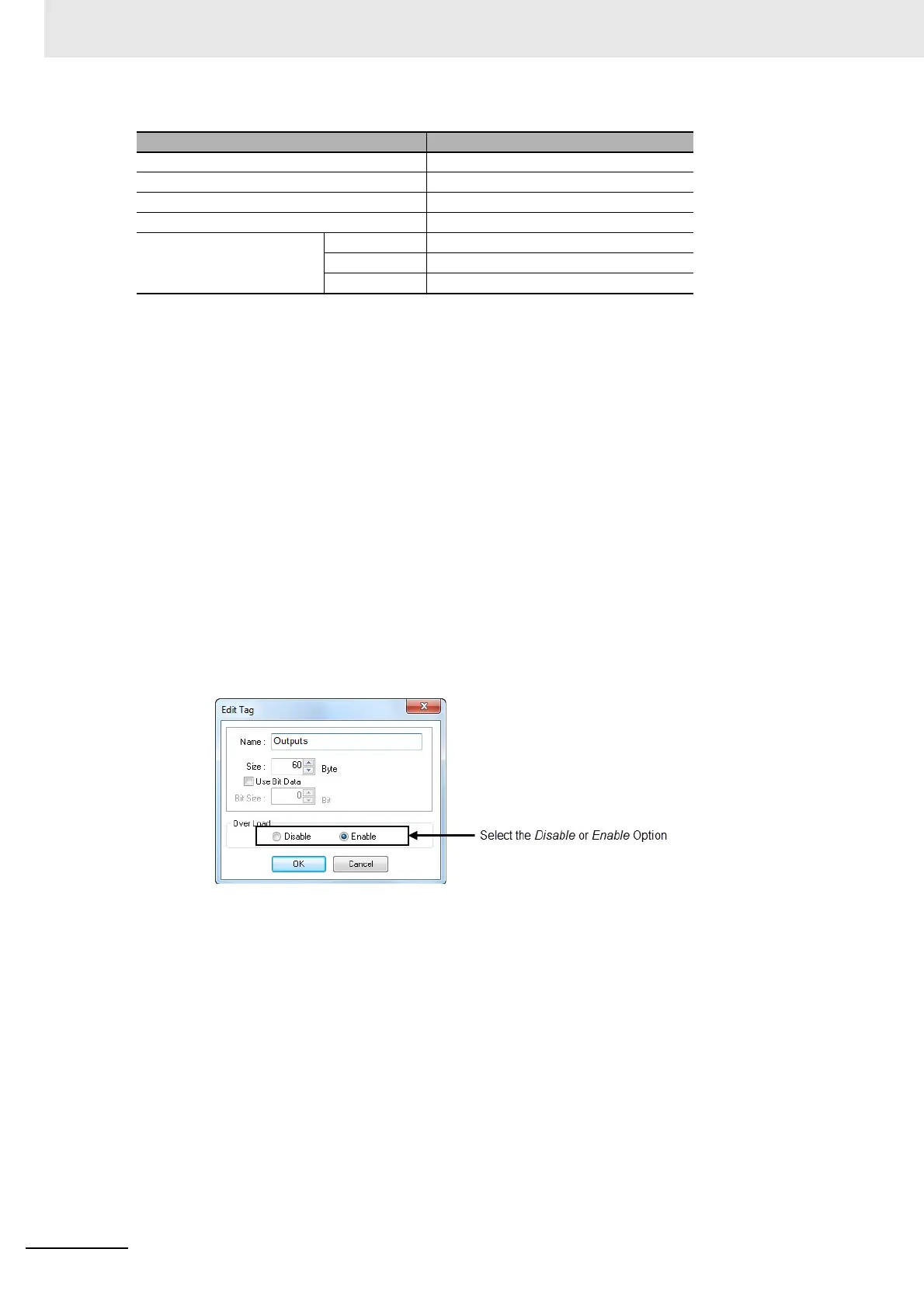

8 Click the Out - Produce Tab, and then click the New button. The Edit Tag Dialog Box is dis-
played. Input the output tag in the same way. Use the Fault Action setting of the output (pro-
duce) tag to specify whether to clear the output data or continue to send it when a major fault
occurs in the CPU Unit. The Fault Action setting is not required for input (consume) tag sets.
• Retain output for major fault: Hold (default) - Output data maintains its previous status even
after a major fault occurs.
• Clear output at major fault: Clear - Output data is cleared to 0 when a major fault occurs.
Note When any of the following errors occurs in the originator PLC while tag data links are in progress, the
connection will be forcibly disconnected.
• Fatal CPU Unit error
• I/O refreshing error
• CPU Unit WDT error
• I/O bus error
CPU Unit’s data area Address (Text to input in Name Field.)
CIO Area 0000 to 6143
Holding Area H000 to H511
Work Area W000 to W511
DM Area D00000 to D32767
EM Area Bank 0 hex E0_00000 to E0_32767
... ...
Bank 18 hex E18_00000 to E18_32767
To Next Page
