Omron NX1P2 series User Manual

5 Installation and Wiring
5 - 18
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

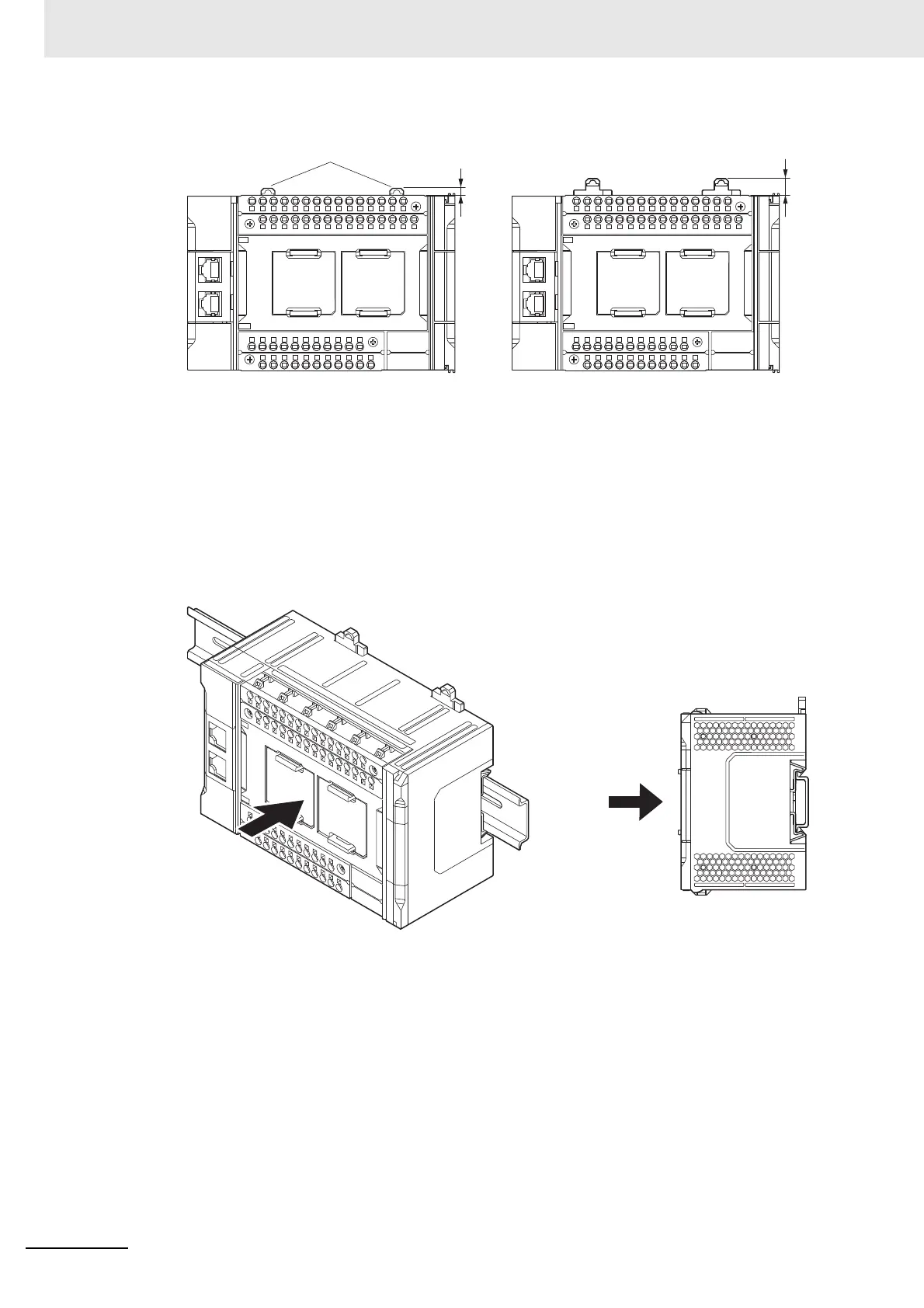

2 Make sure that the DIN Track mounting hooks on the CPU Unit are in the unlocked position.
If the DIN Track mounting hooks are pulled up, they are in the unlocked position.
If the DIN Track mounting hooks are pressed down, they are in the locked position.
Use a flat-blade screwdriver to pull up the DIN Track mounting hook on the Unit to release the
locked position.
3 Press the CPU Unit straight against the DIN Track.
4.5 mm
9.7 mm
DIN Track mounting hooks
DIN Track Mounting
Hooks in Locked Position
DIN Track Mounting
Hooks in Unlocked Position

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
