Omron NX1P2 series

5 Installation and Wiring
5 - 48
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

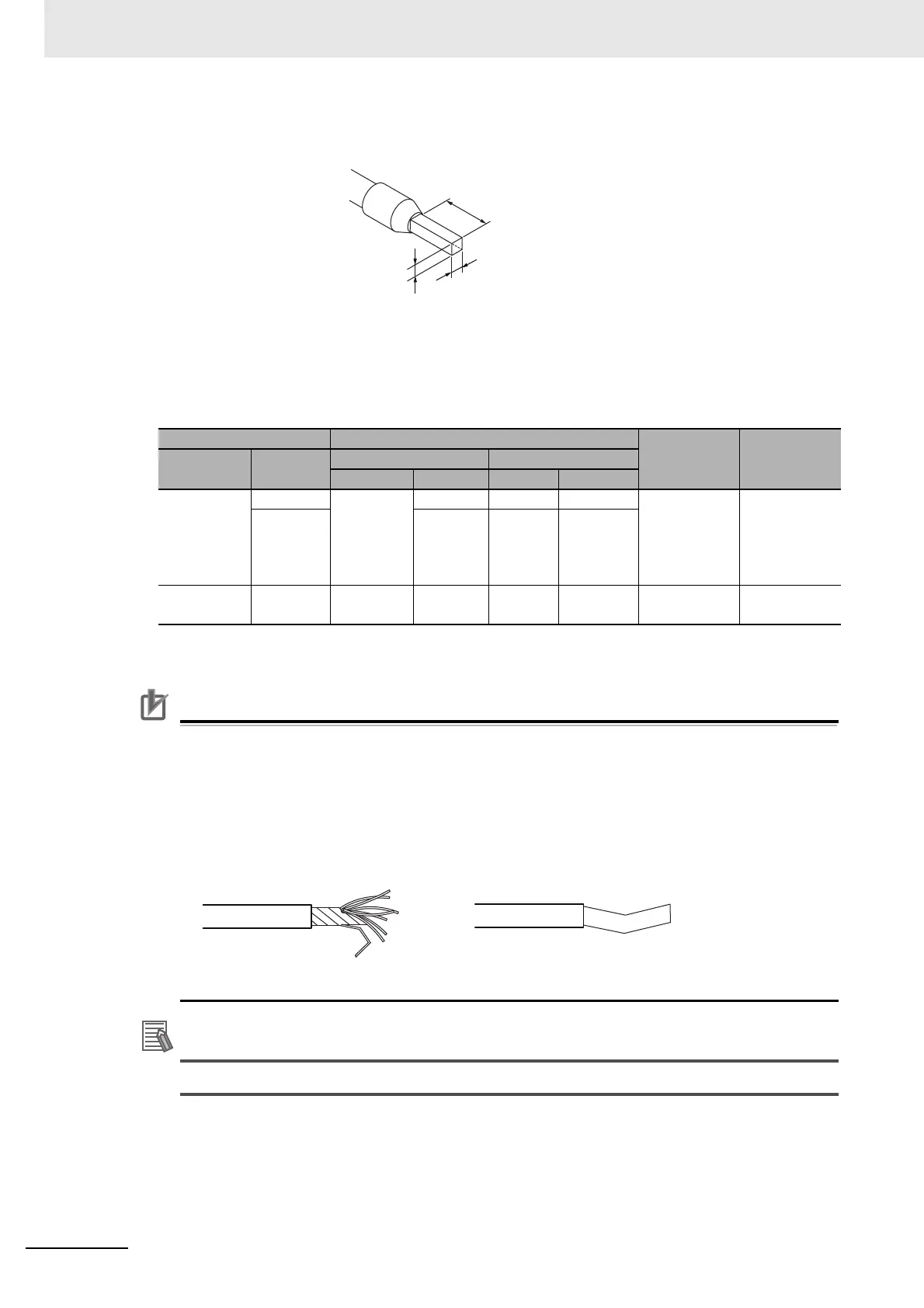

When you use any ferrules other than those in the above table, crimp them to the twisted wires so
that the following processed dimensions are achieved.
 Using Twisted or Solid Wires
If you use twisted wires or solid wires, use the following table to determine the correct wire specifica-
tions.
Precautions for Correct Use
• Use cables with suitable wire sizes for the carrying current. There are also restrictions on the
current due to the ambient temperature. Refer to the manuals for the cables and use the
cables correctly for the operating environment.
• For twisted wires, strip the sheath and twist the conductor portion. Do not unravel or bend the
conductor portion of twisted wires or solid wires.
Additional Information
If more than 2 A will flow on the wires, use plated wires or use ferrules.
Terminals Wire type
Wire size
Conductor
length (strip-
ping length)
Classifica-
tion
Current
capacity
Twisted wires Solid wire
Plated Unplated Plated Unplated
All terminals
except
ground
terminals
2 A max. Possible Possible Possible Possible 0.08 to 1.5
mm
2
(AWG
28 to 16)
8 to 10 mm
Greater
than 2 A
and 4 A or
less
Not pos-
sible
Possible
*1
*1. Secure wires to the screwless clamping terminal block. Refer to Securing Wires on page 5-51 for how to
secure wires.
Not possi-
ble
Ground
terminals
--- Possible Possible Possible Possible
2.0 mm
2
10 to 12 mm
8 to 10 mm
2.4 mm max.
(Terminals other than ground terminals)
2.7 mm max.
(Ground terminals)
1.6 mm max.
(Terminals other than ground terminals)
2.0 mm max.
(Ground terminals)
Unravel wires Bend wires
NG NG
