5-4-8 Wiring to the CPU Unit Terminal Block
This section describes how to connect and remove wires.

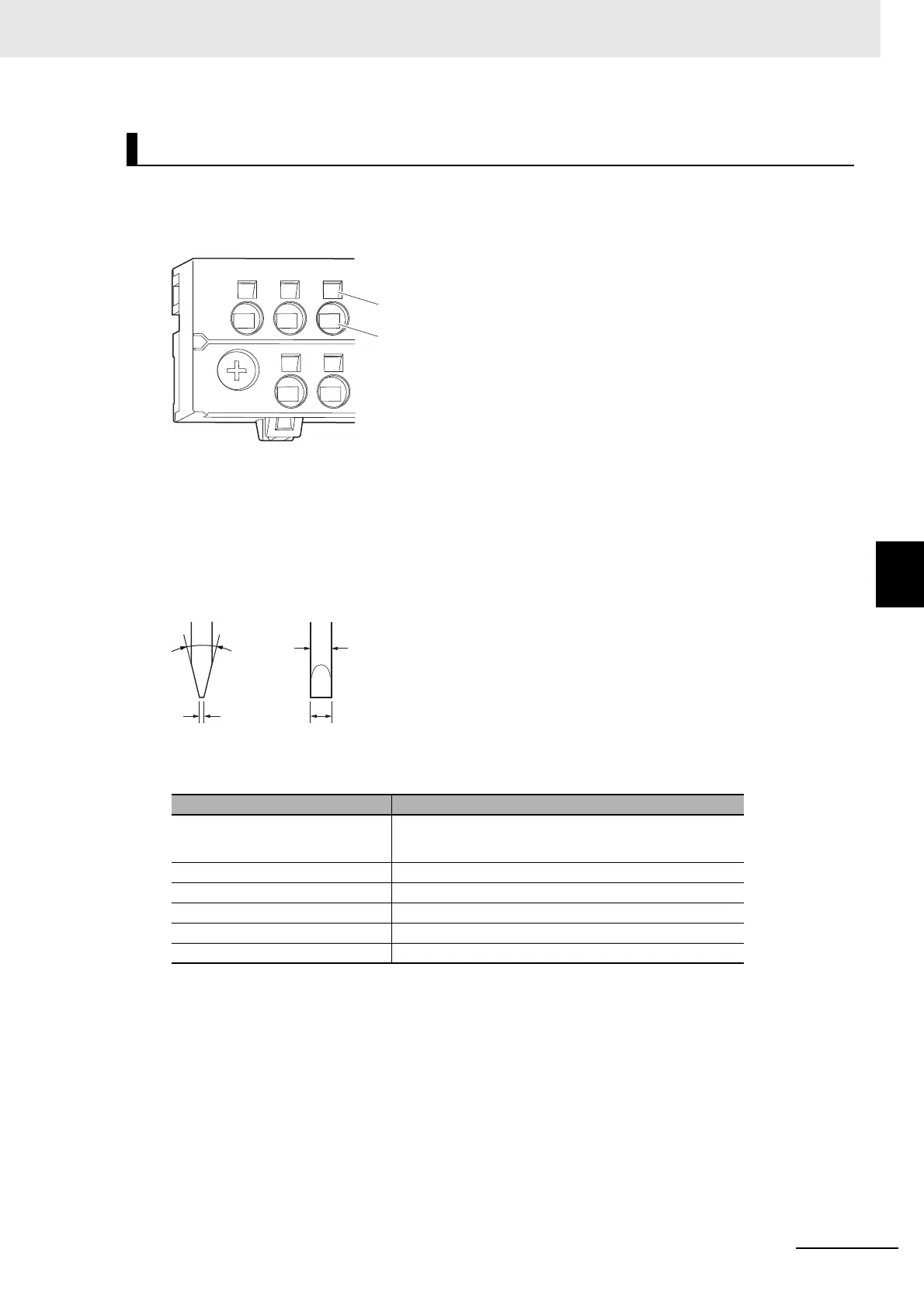

 Terminal Block Parts and Names
The above figure shows the output terminal block at the bottom. For the input terminal block, turn it
upside down.
 Required Tools
Use a flat-blade screwdriver to connect and remove wires.
Use the following flat-blade screwdriver.
Recommended screwdriver model
Connecting/Removing Wires
Model Manufacturer
SZS 0,4×2,5
SZF 0-0,4×2,5
*1
*1. You can purchase the SZF 0-0,4×2,5 screwdriver (manufactured by Phoenix Contact)
from OMRON by specifying the OMRON's model number (XW4Z-00B).
Phoenix Contact
ESD 0.40×2.5 Wera
0,4×2,5×75 302 Wiha
AEF.2,5×75 Facom
210-719 Wago
SDI 0.4×2.5×75 Weidmuller
Release hole
Terminal hole
2.5 mm
0.4 mm
Front view
8 to 12°
Side view
2.5-mm dia.
