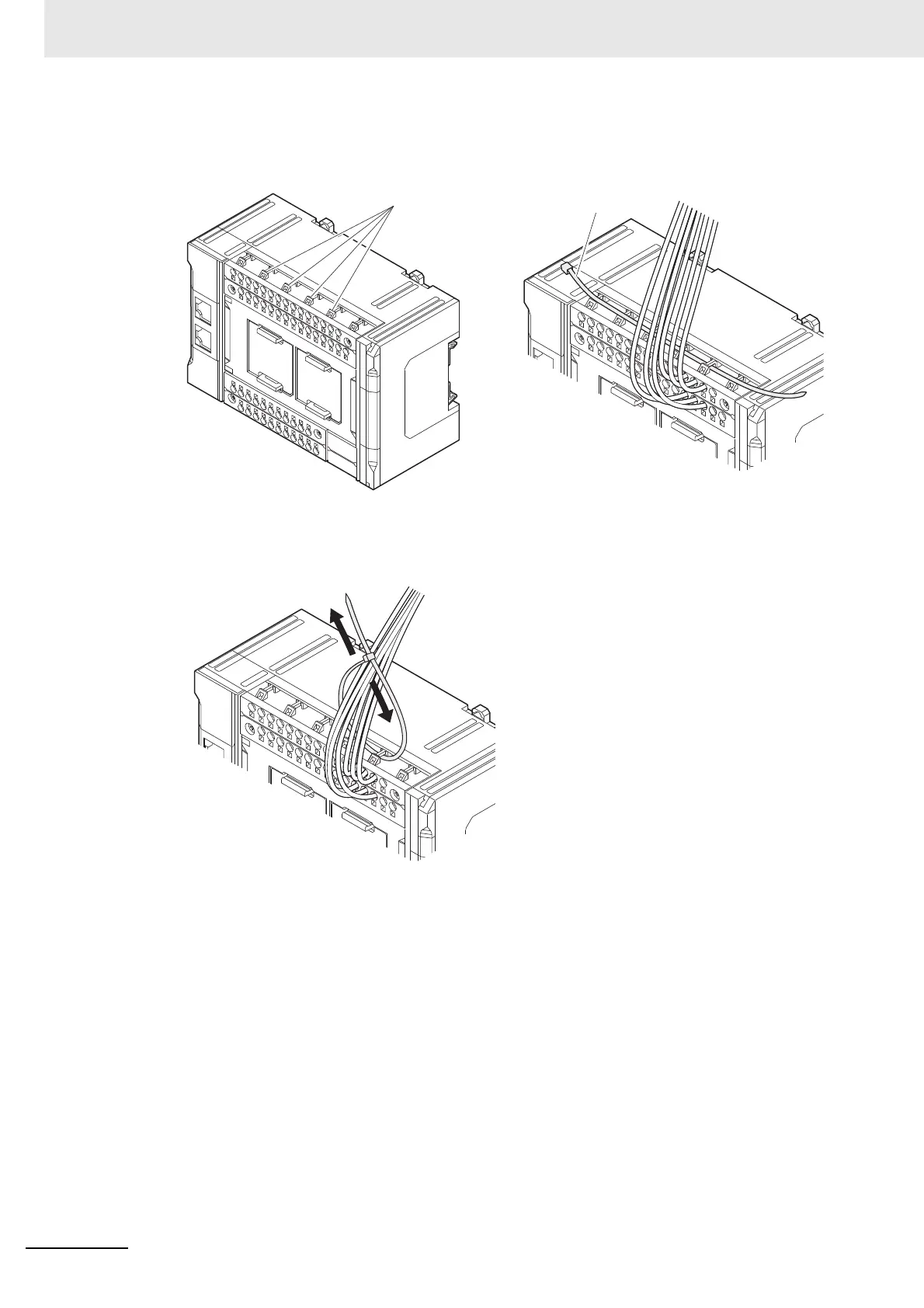

2 Pass a cable tie through the holes for securing wires on the upper and lower sides of the screw-
less clamping terminal block.
3 Bundle five to six wires with a cable tie and secure them to the screwless clamping terminal
block.
Hole for securing wires
Cable tie
