Omron NX1P2 series User Manual

5 - 57
5 Installation and Wiring
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-4 Wiring
5
5-4-8 Wiring to the CPU Unit Terminal Block
This feature is intended for the NX1P2-9024DT CPU Unit that has 24 built-in I/O points and prevents
incorrect attachment of input and output terminal blocks.
Although the shapes of the input and output terminal blocks are the same, they cannot be swapped and
attached in the wrong way. This feature prevents troubles caused by a terminal block that is attached to
a wrong place after it is wired.
When you remove the terminal blocks from the CPU Unit for wiring, be careful not to swap and attach
the input terminal block and output terminal block in the wrong way.

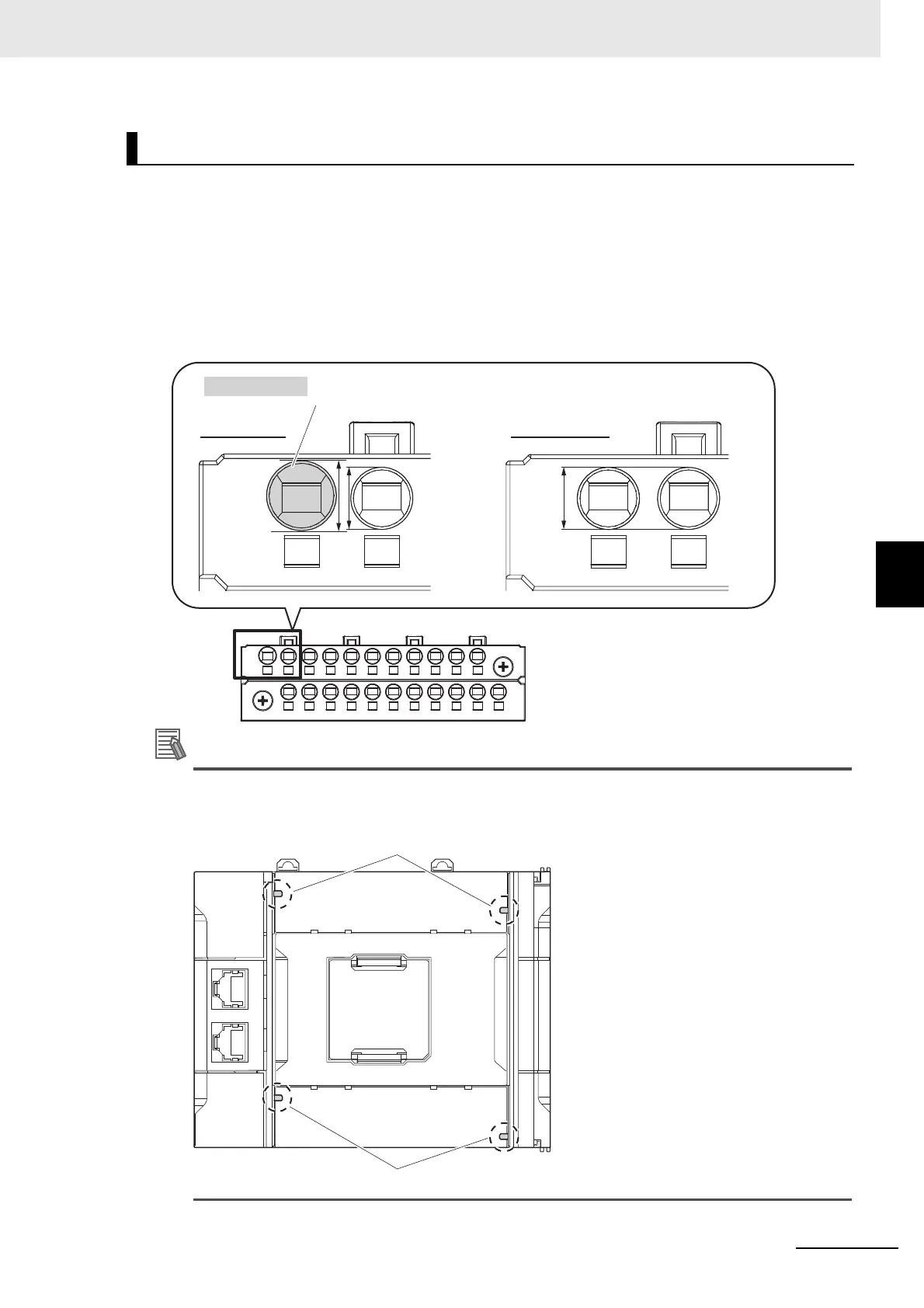

The following figure shows how to distinguish the input and output terminal blocks from each other.
Additional Information
As shown below, wrong insertion of the terminal blocks is prevented by the ribs.
Do not insert the terminal block forcefully.
Preventing Incorrect Attachment of Terminal Blocks
Enlarged view
Input terminal
block
Output terminal
block
This terminal hole of the input terminal block is larger than others.
Rib for preventing wrong insertion
Rib for preventing wrong insertion

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
