Omron NX1P2 series

5 Installation and Wiring
5 - 66
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

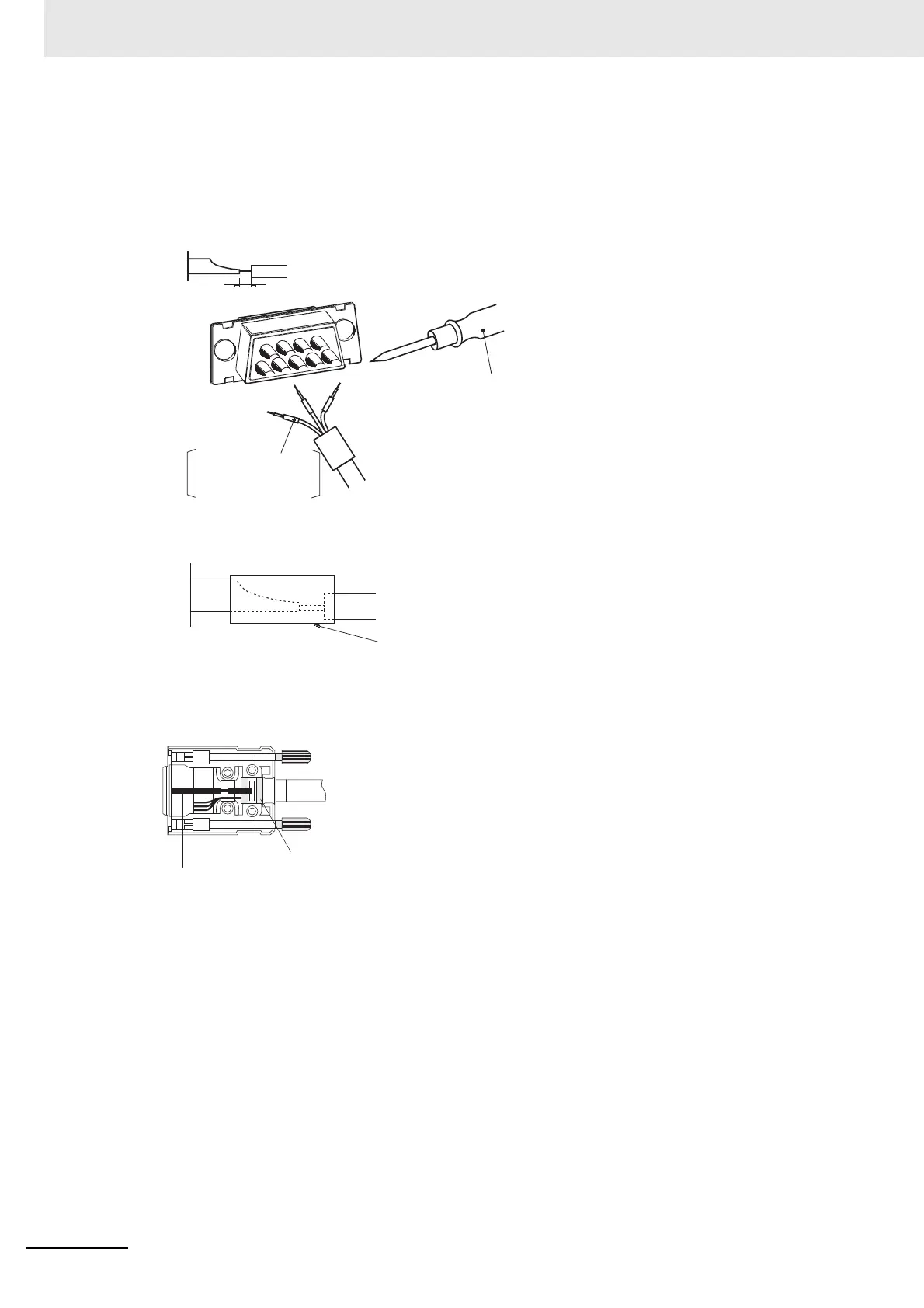

 Soldering
1 Place a heat-shrinking tube on each conductor.
2 Temporarily solder each conductor to the corresponding connector terminals.
3 Completely solder each conductor.
4 Return the heat-shrinking tube to the soldered portion, then heat the tube to shrink it with a heat
gun.
 Assembling Connector Hood
Assemble the connector hood as shown below.
Soldering iron
Heat-shrinking tube
Inside diameter:
1.5 mm, l = 10
1 mm
Heat-shrinking tube
Alminum foil tape
Ground plate
