• Host computers, HMIs, and other NJ/NX-series Controllers are connected to the built-in EtherNet/IP
port.
• A DeviceNet network is connected to a CJ-series DeviceNet Unit mounted to the NJ-series CPU Unit.
• A serial communications network is connected to the following Units.
Serial Communications Option Board
NX-series Communications Interface Unit
CJ-series Serial Communications Unit
Refer to the NJ/NX-series CPU Unit Software User’s Manual (Cat. No. W501) for details on the network
configuration.

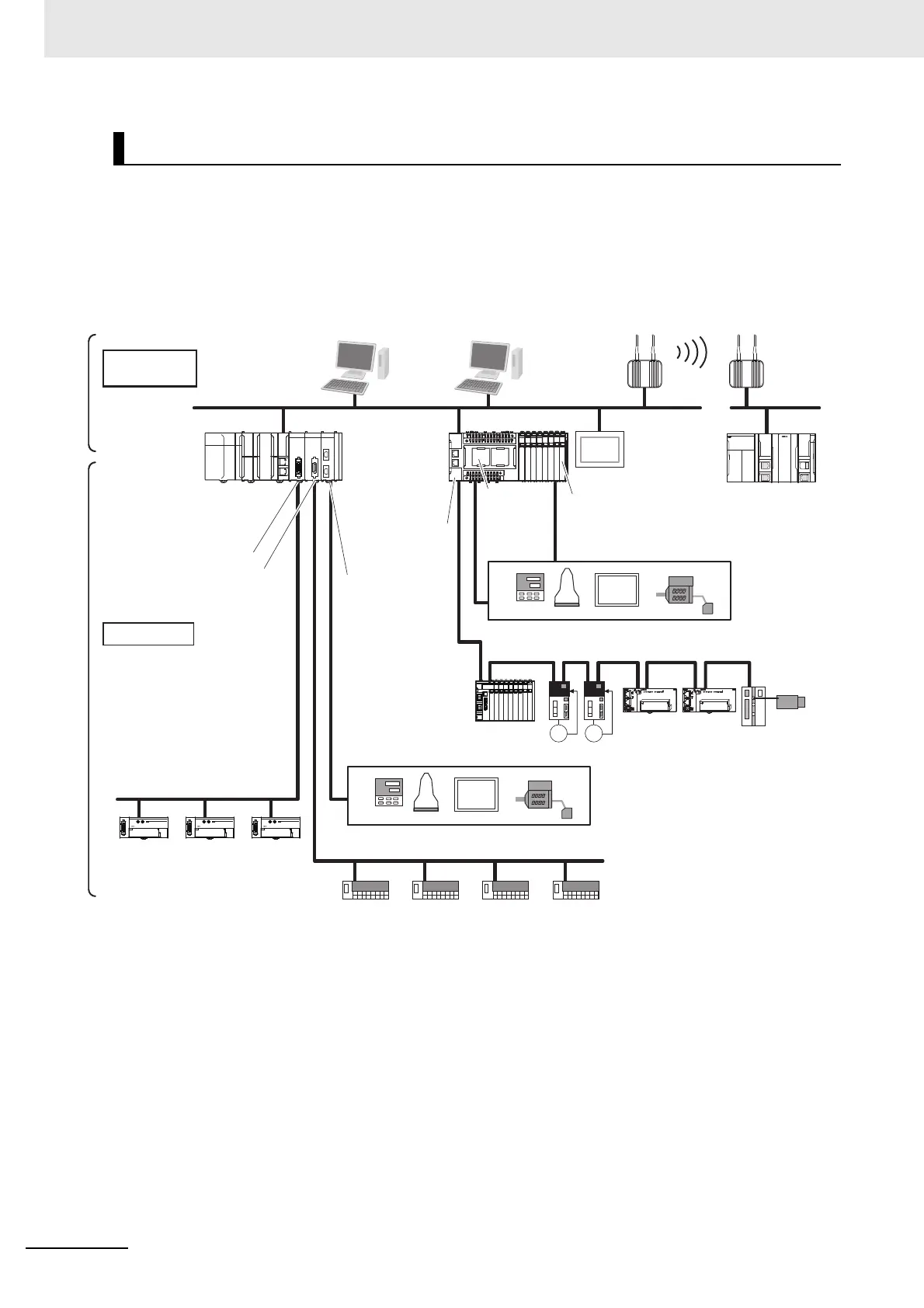

Network Configurations
Sysmac
Studio
RS-232C,
RS-422A/485
DeviceNet
CompoNet
REMOTE TERMINAL
01234567 8 9 10 11 12 13 14 15
OUT
CRT1-OD16
CRT1-OD16
MS NS WORD NODE ADR
REMOTE TERMINAL
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
OUT
CRT1-OD16
CRT1-OD16
MS NS WORD NODE ADR
REMOTE TERMINAL
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
OUT
CRT1-OD16
CRT1-OD16
MS NS WORD NODE ADR
EtherNet/IP
EtherCAT
Built-in EtherNet/IP portBuilt-in EtherNet/IP port
FA
Communications
Software
FA Wireless
LAN Unit
Built-in EtherCAT
port
Serial
Communications
Option Board
EtherCAT
Slave Terminal
Vision
Systems
Serial communications
devices
Serial
communications
devices
General-purpose
slaves
General-purpose components or OMRON components
General-purpose components or OMRON components
NX-series Communications
Interface Unit
NX-series
NX1P2
CPU Unit
NJ-series
CPU Unit
Servo Drives
DeviceNet slaves
CompoNet slaves
Field Level
CompoNet Master Unit
DeviceNet Unit
Serial
Communications
Unit
Information
Level
Programmable
terminal
NJ/NX Series
CPU Unit
