Omron NX1P2 series User Manual

3 - 15
3 Configuration Units
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
3-1 CPU Units
3
3-1-4 Terminal Blocks

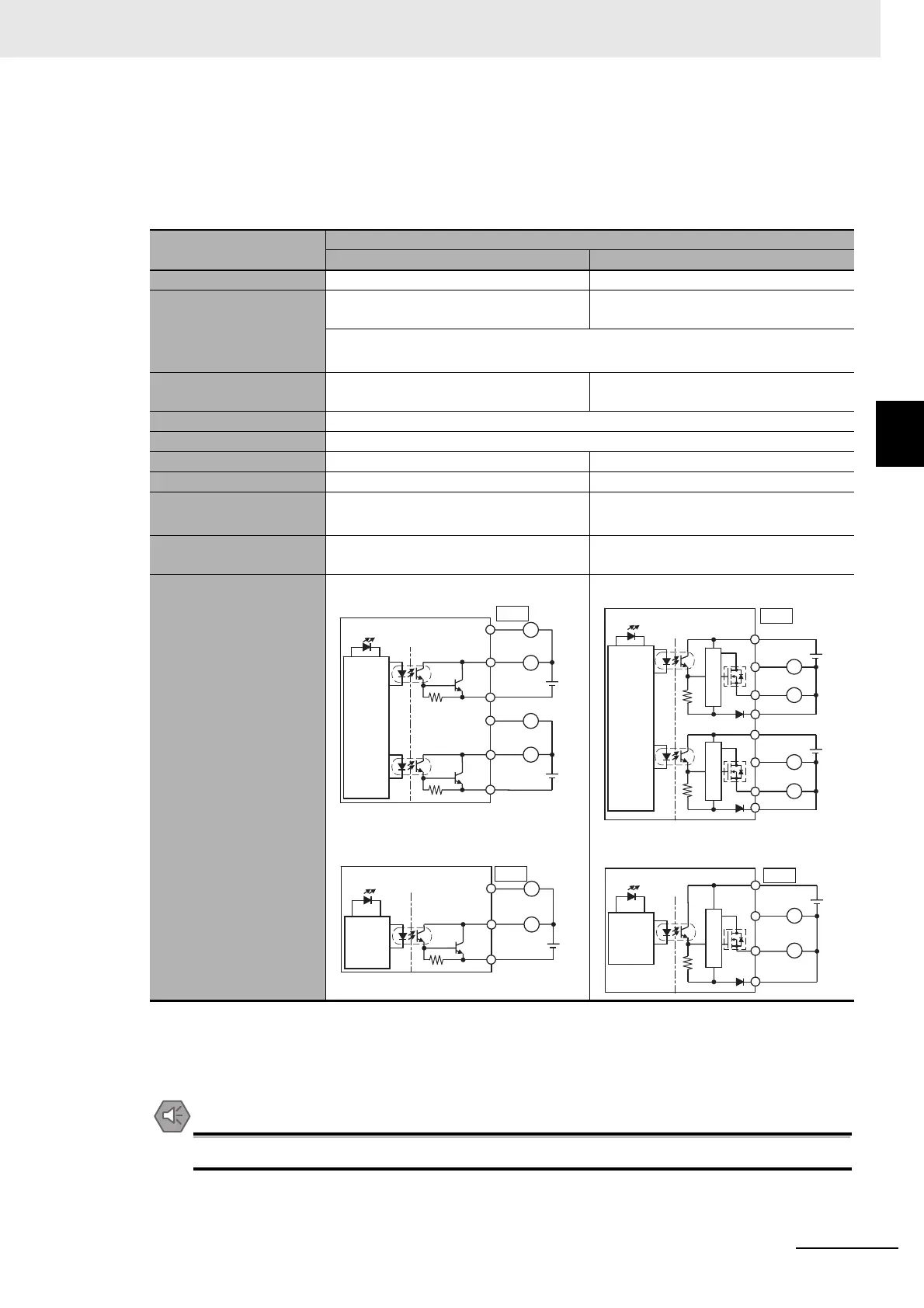

 Output Specifications
The models of the CPU Units are divided according to the following two output types: the NPN (sink-
ing) type and PNP (sourcing) type.
There is no difference in specifications between the models with different output terminal numbers.
Precautions for Safe Use
Do not apply voltages or connect loads in excess of the maximum switching capacity.
Item
Specification
NX1P2-DT NX1P2-DT1
Internal I/O common NPN (sinking) PNP (sourcing)
Maximum switching
capacity
12 to 24 VDC (10.2 to 28.8 VDC), 300
mA per point
24 VDC (15 to 28.8 VDC), 300 mA per
point
NX1P2-140DT: 1.8 A/common (3.6 A/Unit)
NX1P2-9024DT: 2.4 A/common (2.4 A/Unit)
Minimum switching
capacity
12 to 24 VDC (10.2 to 28.8 VDC), 1 mA 24 VDC (15 to 28.8 VDC), 1 mA
Leakage current 0.1 mA max.
Residual voltage 1.5 V max.
ON response time 0.1 ms max. 0.5 ms max.
OFF response time 0.8 ms max. 1.0 ms max.
Current consumption
from I/O power supply
*1
*1. The internally consumed current from I/O power supply. The current flows from the common terminal Cn (+V)
to the 0Vn terminal. The current consumption of any external load is excluded.
--- NX1P2-140DT1: 40 mA/common
NX1P2-9024DT1: 50 mA/common
Load short-circuit pro-
tection
Not provided
Provided
*2
*2. The load short-circuit protection is provided for each point of the PNP (sourcing) type output terminal. It pro-
tects the output circuits when a load short circuit occurs.
Circuit configuration
NX1P2-140DT NX1P2-140DT1
NX1P2-9024DT NX1P2-9024DT1
Output indicator
08
07
L
L
Internal
circuits
10.2 to 28.8 VDC10.2 to 28.8 VDC
C1 (0V)
C0 (0V)
15
00
L
L
OUT
. . .
. . .
. . .
. . .
Output indicator
L
Internal
circuits
08
15
L
L
L
15 to 28.8 VDC
C1 (+V)
0V1
C0 (+V)
15 to 28.8 VDC
07
00
0V0
OUT
Short-circuit protection
Short-circuit protection
. . .
. . .
. . .
. . .
Output indicator
L
Internal
circuits
10.2 to 28.8 VDC
09
00
C0 (0V)
L
OUT
. . .
. . .
Output indicator
Internal
circuits
Short-circuit protection
15 to 28.8 VDC
C0 (+V)
L
L
09
00
0V0
OUT
. . .
. . .

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
