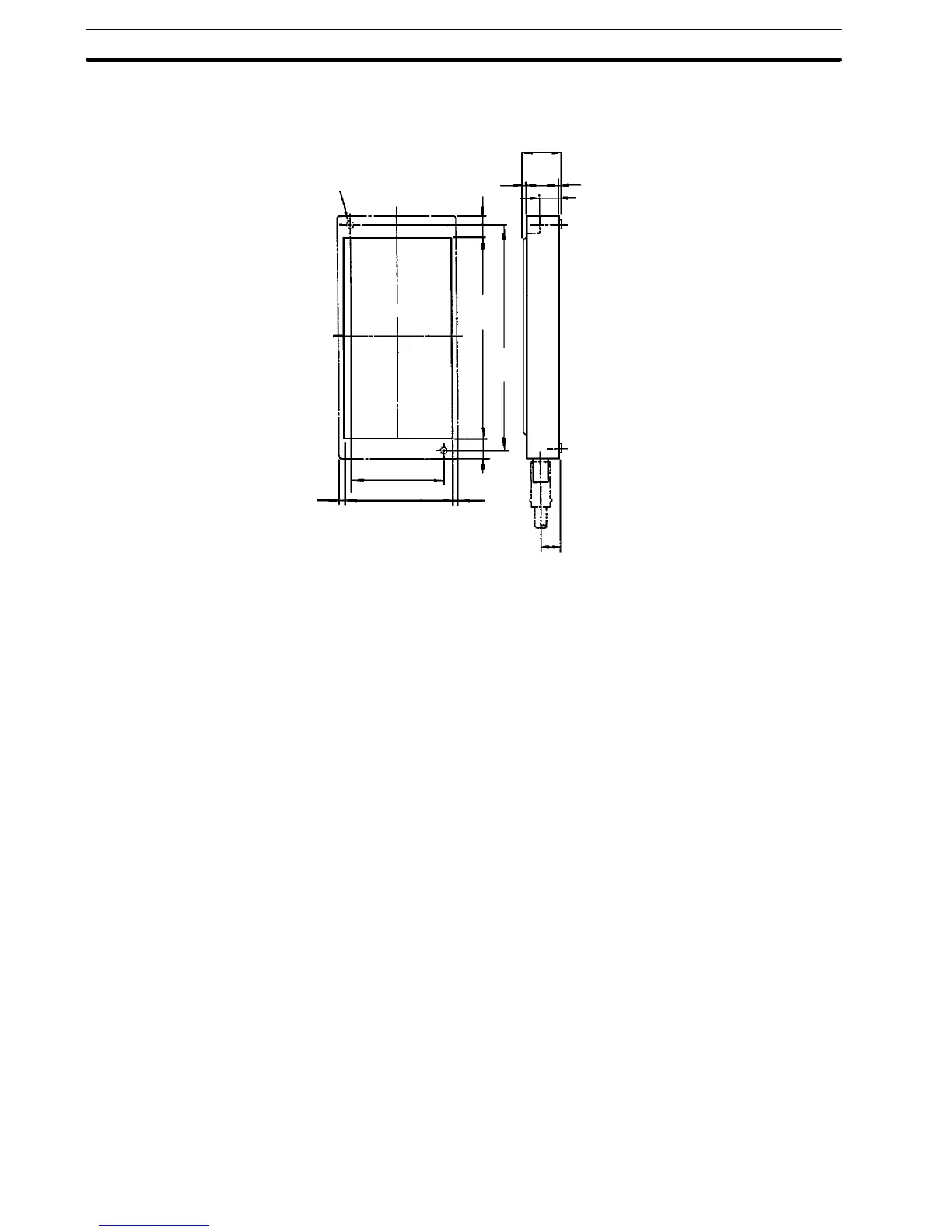

Cut the housing panel and mount the operator shown on the left.
2-M4 MTG hole
Panel cutout
0.089
(2.25)
0.394 (10)
1.967 (50)
2.303 (58.5)
4.921
(125)
4.409
(112)
0.453
(11.5)
0.089
(2.25)
0.453
(11.5)
0.638
(16.2)
0.728
(18.5)
0.020 (0.5)
0.382 (9.7)
0.071 (1.8)
Note Use only the special extension cable. Two types of cables are
available: 1 m and 3 m long.
