No. 17
ON
ON
ON
Normal rotation 1
Frequency
Jog signal
Forward run rotation signal
Reverse run rotation signal
Time
Reverse rotation

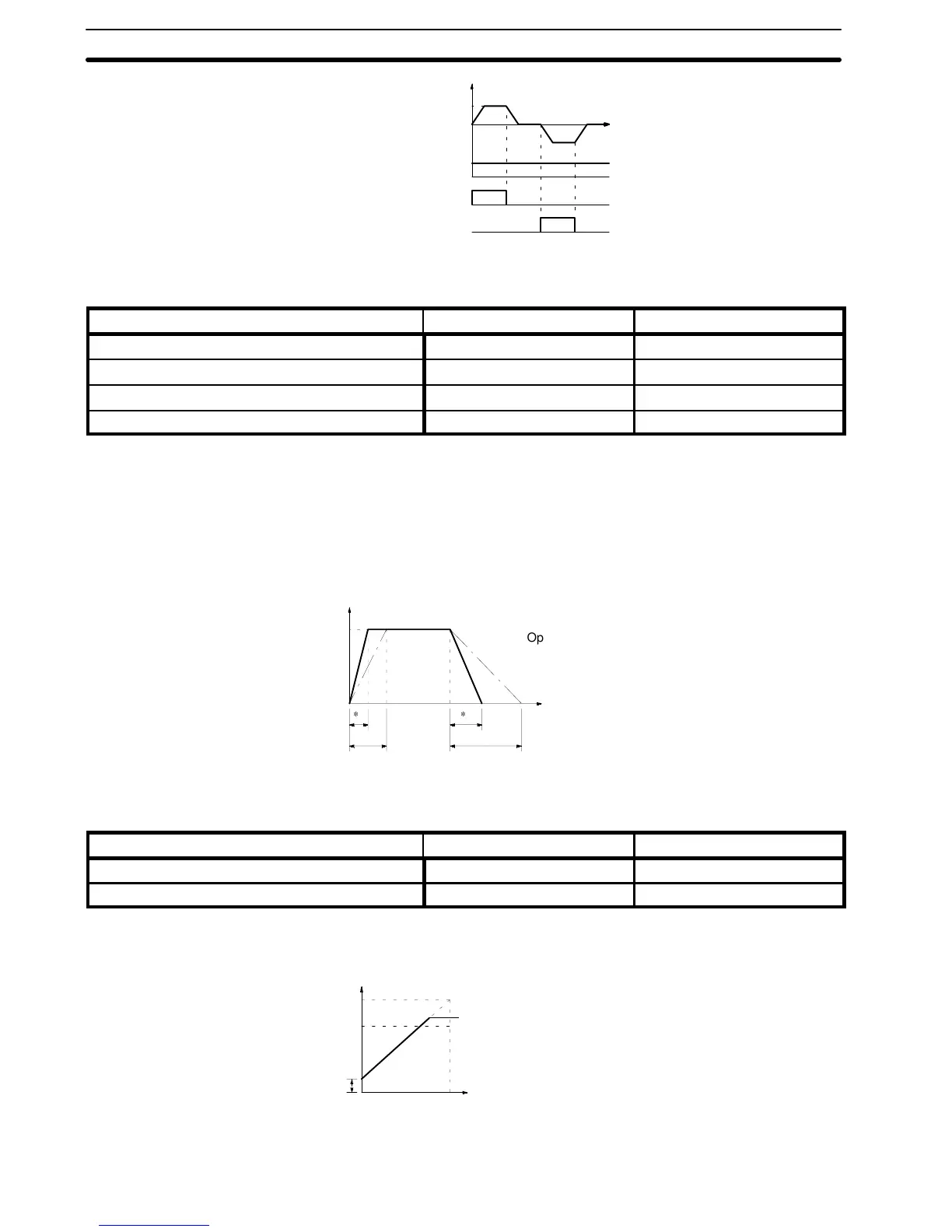

2-10-6 Accel/Decel Time and Patterns
Item name Constant to be set Factory preset
Acceleration time 1 No. 9 10.0 s
Deceleration time 1 No. 10 10.0 s
Acceleration time 2 No. 11 10.0 s
Deceleration time 2 No. 12 10.0 s
Each item can be set from 0.0 sec to 600.0 sec.
The set time indicates the interval required before the maximum
output frequency No. 2 is reached.
Time marked with
A
can be set for two-step switching using an ex-
ternal contact.
No. 2
No. 9
No. 12No. 11
Output frequency
No. 10
Open: No. 9 and 10 are selected.
Closed: No. 11 and 12 are selected.
Time
Output frequency
2-10-7 Output Frequency Control (Gain/Bias)
Item name Constant to be set Factory preset
Frequency command gain No. 22 1.0
Frequency command bias No. 23 0.00
Output frequency (gain/bias) can be set freely according to fre-
quency setting (0 to 10 V or 4 to 20 mA)
No. 22
0
100%
No. 23
10 V
(4 mA) (20 mA)
Bias
(100% = 1.00)
Limit value
Frequency setting
Gain
Section 2-10
