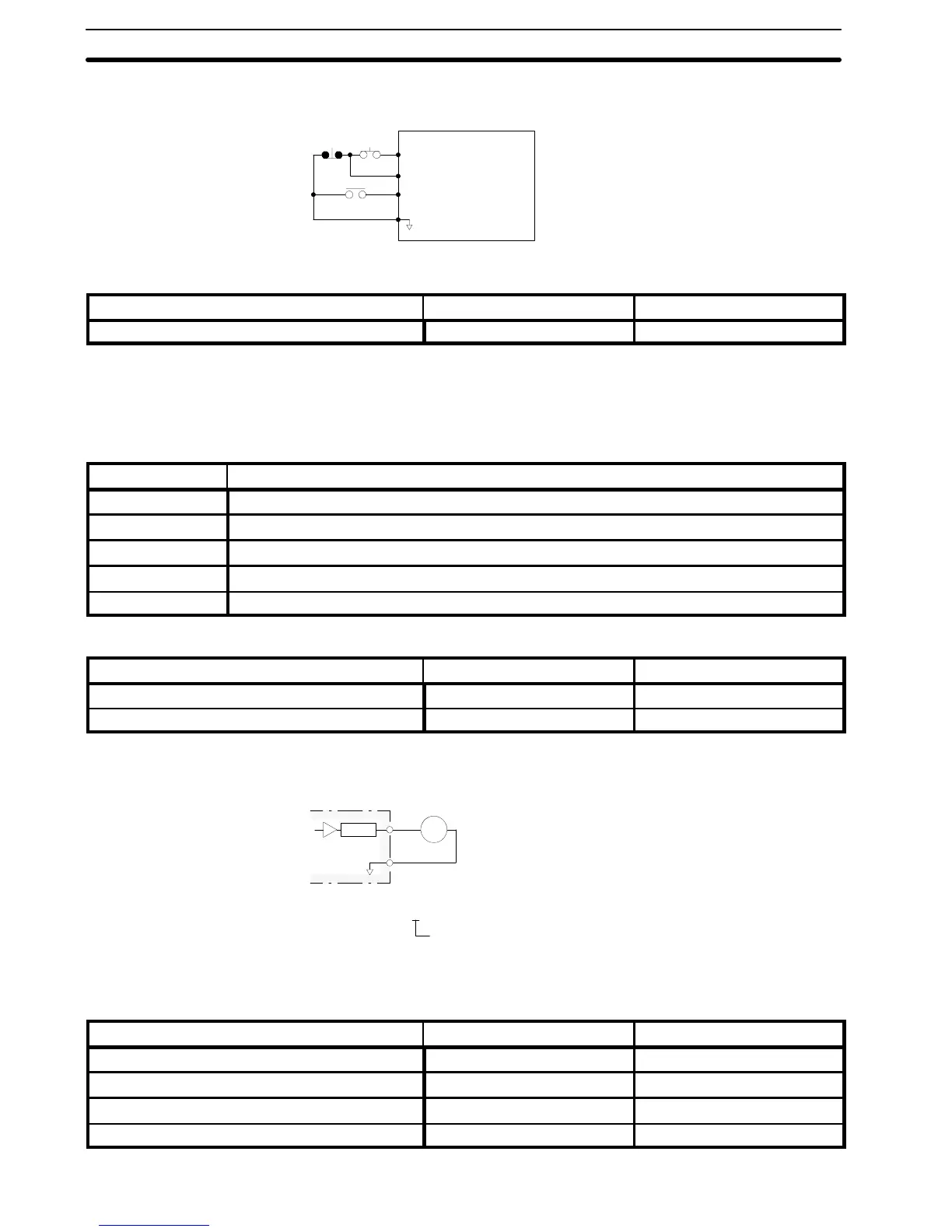

Terminal function at 3-WIRE sequence selection
3G3SV
1
2
7
9
Run command
(run at “closed”)
Stop command
(stop at “open”)
FWD/REV run
selection
(FWD run at “open”,
REV run at “closed”)
2-10-15Multifunction Output Function
Item name Constant to be set Factory preset
Multifunction output function No. 34 and No. 35 Refer to page 41.
Functions of external output terminals 14 to 16, and 15 and 16 can
be switched.
Function of terminal 14 to 16: set into No. 34.
Function of terminal 15 and 16: set into No. 35.
Set value Function
0 (see note) In operation
1 (see note) Frequency agreed
2 Zero speed
3 Frequency detection (output frequency
≥
frequency detection level)
4 Overtorque detected
2-10-16Frequency/Current Meter Calibration
Item name Constant to be set Factory preset
Analog output gain No. 45 1.00
analog output selection No. 21 0000
Frequency/current meter connected to the inverter can be cali-
brated without using a resistor for calibration.
bn-11
+
--
FM
18
19
Frequency/current meter
(3 V 1 mA full scale)
No. 21 = xx0x
0: Output frequency meter
1: Output current meter
2-10-17Overtorque Detection Function
Item name Constant to be set Factory preset
Overtorque detection level No. 38 160%
Overtorque detection time No. 39 0.1 s
Overtorque detection signal No. 34 and No. 35 Refer to page 41.
Overtorque detection selection No. 37 Refer to page 42.
Section 2-10
