Omron SYSDRIVE 3G3SV-B2002-E - 2-8 Monitor

,
Description Key Operation Digital Operator Display

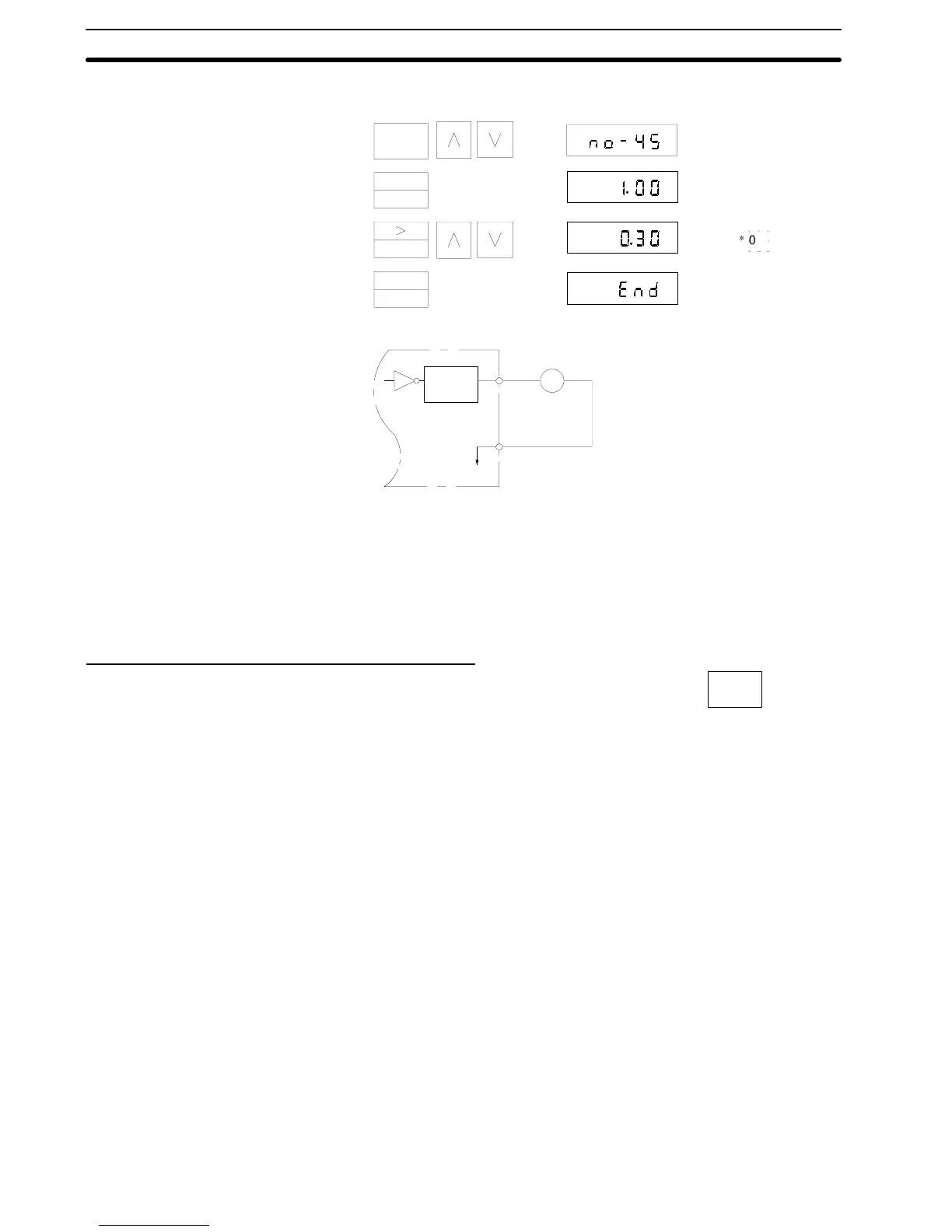

Select constant (No. 45).
Data are displayed.
Change the set value.
DSPL
DATA
ENTER
RESET
DATA
ENTER
...10V

0.3 = 3.0 V
18
19
FM
+--
No. 45
3V,1mA
FREQ. meter calibration
2-8 Monitor
Frequency reference value, output frequency, output current and
fault contents can be monitored.
Typical Monitor Contents and Display
The monitor item is changed every time when the DSPL keyisde-
pressed.
 Section 2-8
