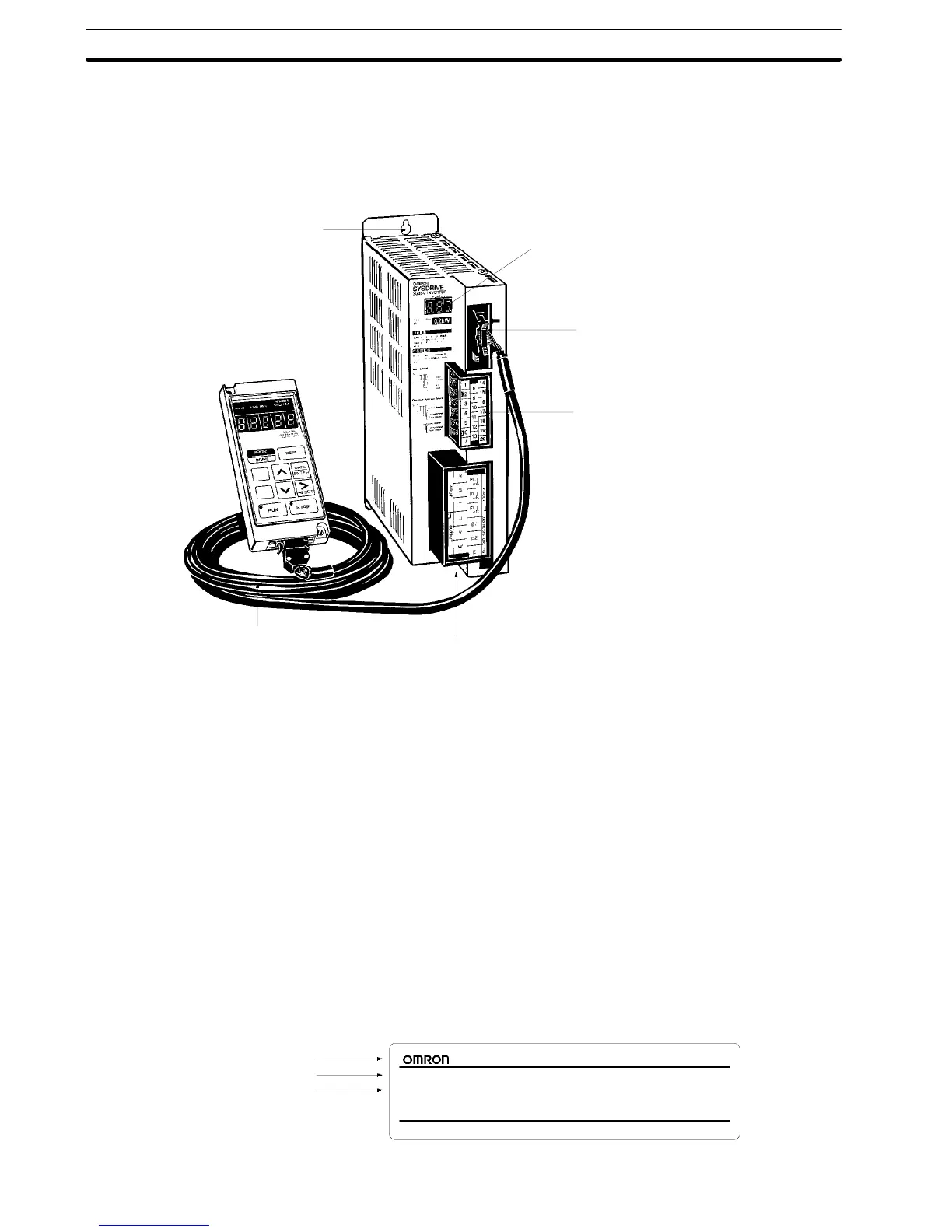

1-1 Parts Names of the 3G3SV
The following shows the SYSDRIVE 3G3SV connected with the
digital operator (option).
MTG hole
Digital display section
Connector for digital operator
Control circuit terminal block
(with acrylic cover)
Main circuit terminal block (with acrylic cover)
Remote operator special cable
(optional)
Digital operator
(optional)
1-2 Receiving
This SYSDRIVE 3G3SV has been put through demanding tests at
the factory before shipment.
After unpacking, check for the following.
•Verify the part numbers with the purchase order sheet and/or
packing slip.
•Transit damage.
If any part of 3G3SV is damaged or lost, immediately notify the
shipper.
Nameplate Data
Input specifications
Output specifications
Inverter model
3G3SV-B2015 200 V CLASS INVERTER
INPUT: AC3PH 200 to 230 V 50/60 Hz 6.5 A
OUTPUT: AC3PH 0 to 230 V 3.0 kVA 6.5 A
LOT No. SER No.
OMRON Corporation MADE IN JAPAN
Section 1-2
