4-2 Function Mode
4
Functions
Window Comparator (Disconnection Detection FVDc/FIDc/FEDc)
•The Inverter activates the window comparator output when the FV/FI/FE analog input value is
within the upper and lower limit levels of the window comparator. This function allows you to
monitor analog input based on the desired level (e.g. to detect a disconnection).

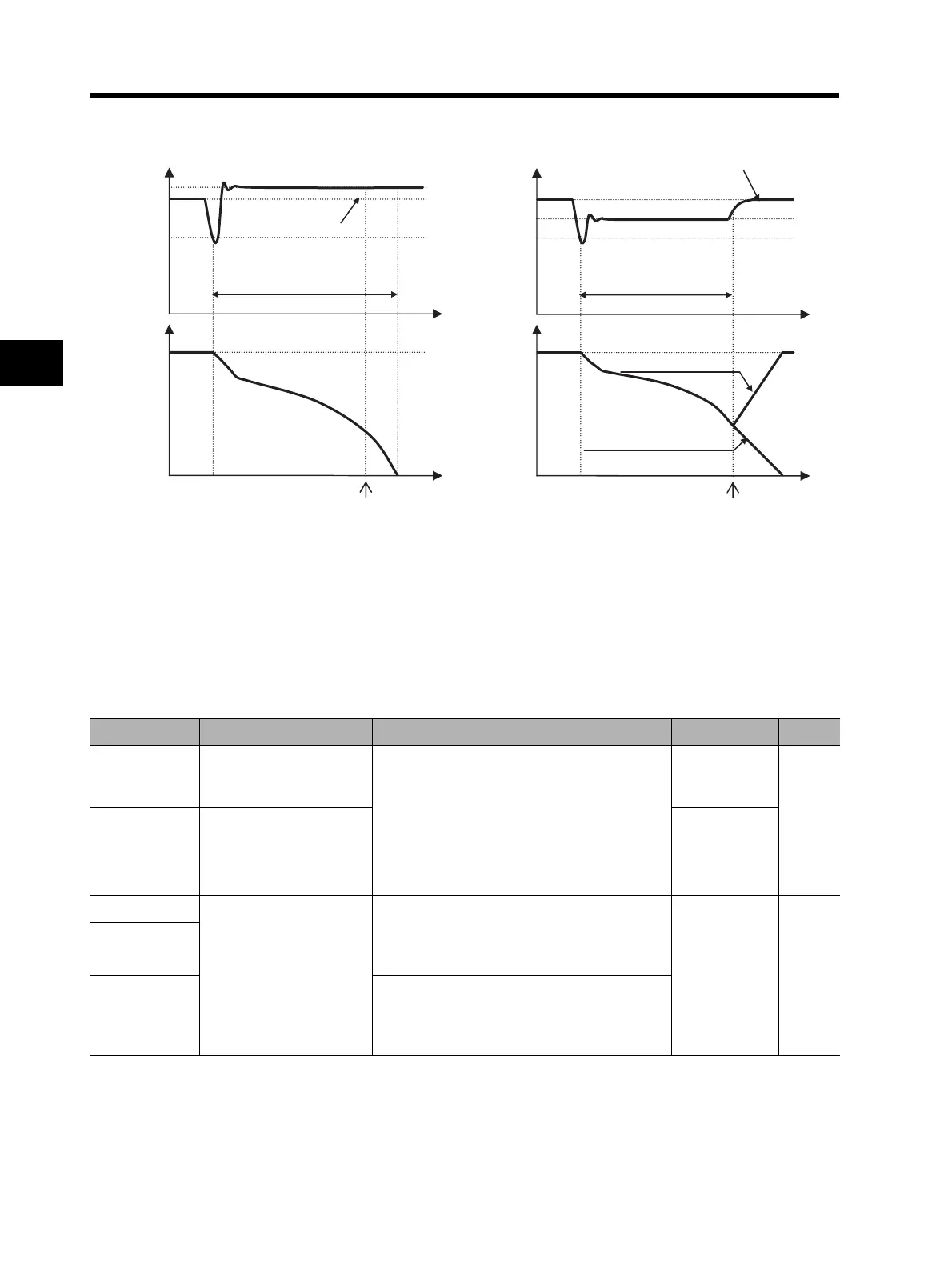

(Example 1)
Main circuit P-N voltage
Vpn (V)
Time
Time
Output
frequency
(Hz)
DC voltage kept constant
b050 = 02, 03
(Deceleration stop)
Power recovery
Main circuit DC voltage
b052
b051
Note: The main circuit DC voltage level, while the function is running, may fall below the b052 set value depending
on the proportional gain and integral time settings.
Power recovery
Main circuit P-N voltage
Vpn (V)
Time
Time
Output
frequency
(Hz)
DC voltage kept constant
b050 = 03 (Operation)
b050 = 02
(Deceleration stop)
Main circuit DC voltage
at power recovery
b052
b051
(Example 2)
Power recovery
Parameter No. Function name Data Default setting Unit
C021 to C025
Multi-function output
terminals P1 to P5
selection
27: FVDc (analog FV disconnection
detection)
28: FIDc (analog FI disconnection detection)
29: FEDc (analog FE disconnection
detection)
54: WCFV (window comparator FV)
55: WCFI (window comparator FI)
56: WCFE (window comparator FE)


C026
Relay output (MA, MB)
function selection
05
b060 (FV)
Window comparator
FV/FI/FE upper limit level
Set an upper limit level.
Setting range: 0 to 100
Lower limit: Lower limit level + Hysteresis
width × 2
100 %
b063 (FI)
b066 (FE)
Set an upper limit level.
Setting range: -100 to 100
Lower limit: Lower limit level + Hysteresis
width × 2
