2-18
2-2 Wiring
2
Design
3G3RX-A4750
3G3RX-A4900
3G3RX-A411K
3G3RX-A413K
Ro,To: M4
Ground terminal: M8
Others: M10

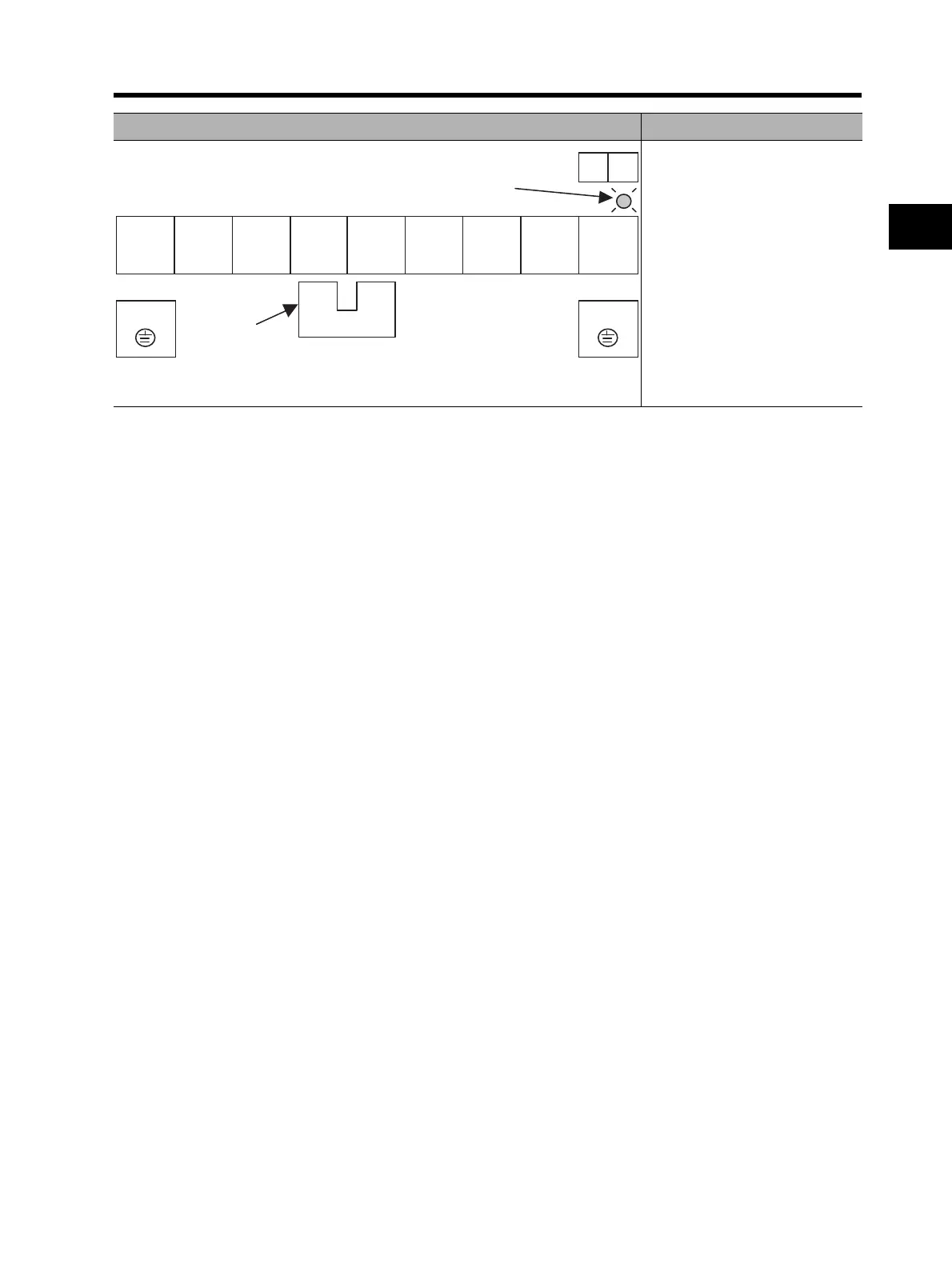

Terminal arrangement Applicable model
CHARGE LED indicator
+1-P/+2
short-circuit bar
When not using the DC
reactor, keep the +1-P/+2
short-circuit bar attached.
Ro To
G
G
R/L1 S/L2 T/L3 +1
P/+2 N/- U/T1 V/T2 W/T3
