2-17
2-2 Wiring
2
Design
3G3RX-A2450
3G3RX-A4450
3G3RX-A4550
Ro,To: M4
Ground terminal: M8
Others: M8
[EMC filter function switching method]
3G3RX-A2550
Ro,To: M4
Ground terminal: M8
Others: M10
[EMC filter function switching method]

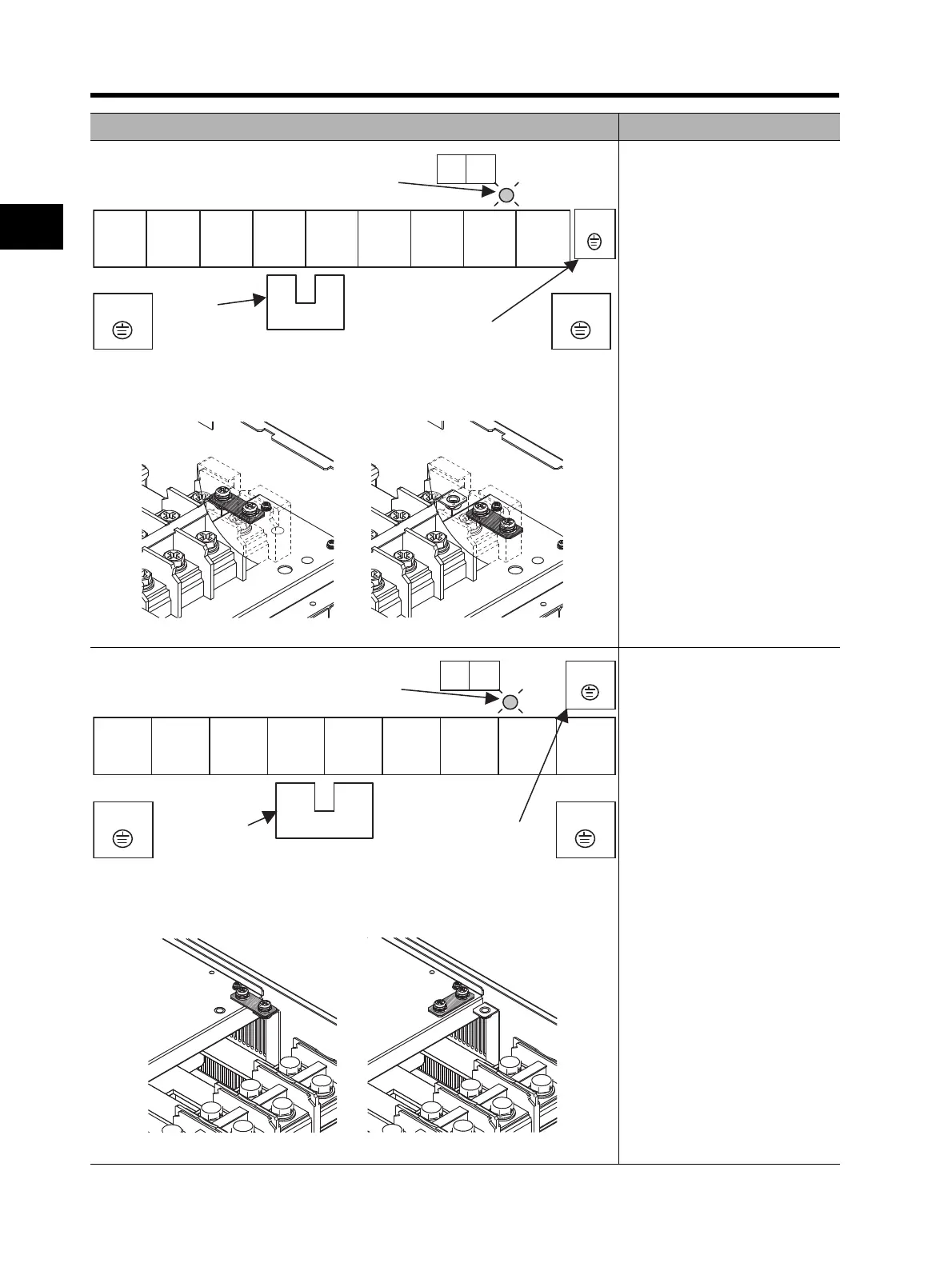

Terminal arrangement Applicable model
Ro To
GG
G
R/L1 S/L2 T/L3 +1
P/+2 N/- U/T1 V/T2 W/T3
Ground terminal with
short-circuit bar (shaded area)
for EMC filter function switching
+1-P/+2
short-circuit bar
When not using the DC
reactor, keep the +1-P/+2
short-circuit bar attached.
CHARGE LED indicator
EMC filter enabled EMC filter disabled (factory default)
Ro To
G
G
G
R/L1 S/L2 T/L3 +1
P/+2 N/- U/T1 V/T2 W/T3
Ground terminal with
short-circuit bar
(shaded area) for EMC
filter function switching
+1-P/+2
short-circuit bar
When not using the DC
reactor, keep the +1-P/+2
short-circuit bar attached.
CHARGE LED indicator
EMC filter enabled EMC filter disabled (factory default)
