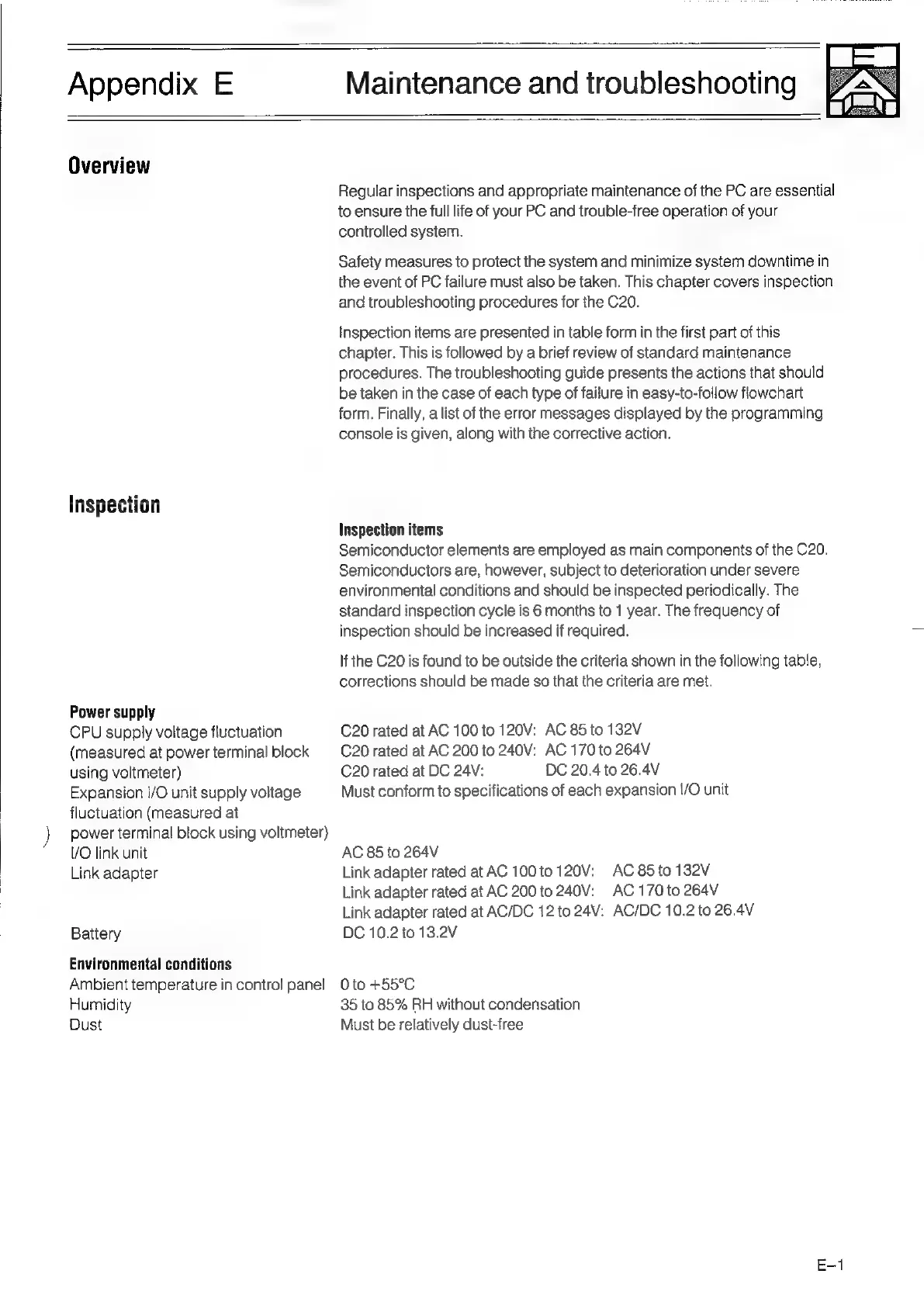

Appendix
E
Maintenance
and
troubleshooting
Overview
Power
supply
CPU
supply
voltage
fluctuation
(measured
at
power
terminal
block
using
voltmeter)
Expansion
I/O
unit
supply
voitage
fluctuation
(measured
at
power
terminal
block
using
voltmeter)
VO
link
unit
Link
adapter
Battery
Environmental
conditions
Ambient
temperature
in
control
panel
Humidity
Dust
Regular
inspections
and
appropriate
maintenance
of
the
PC
are
essential
to
ensure
the
full
life
of
your
PC
and
trouble-free
operation
of
your
controlled
system.
Safety
measures
to
protect
the
system
and
minimize
system
downtime
in
the
event
of
PC
failure
must
also
be
taken.
This
chapter
covers
inspection
and
troubleshooting
procedures
for
the
C20.
Inspection
items
are
presented
in
table
form
in
the
first
part
of
this
chapter.
This
is
followed
by
a
brief
review
of
standard
maintenance
procedures.
The
troubleshooting
guide
presents
the
actions
that
should
be
taken
in
the
case
of
each
type
of
failure
in
easy-to-follow
flowchart
form.
Finally,
a
list
of
the
error
messages
displayed
by
the
programming
console
is
given,
along
with
the
corrective
action.
Inspection
items
Semiconductor
elements
are
employed
as
main
components
of
the
C20.
Semiconductors
are,
however,
subject
to
deterioration
under
severe
environmental
conditions
and
should
be
inspected
periodically.
The
standard
inspection
cycle
is
6
months
to
1
year.
The
frequency
of
inspection
should
be
increased
if
required.
If
the
C20
is
found
to
be
outside
the
criteria
shown
in
the
following
table,
corrections
should
be
made
so
that
the
criteria
are
met.
C20
rated
at
AC
100
to
120V:
AC
85
to
132V
C20
rated
at
AC
200
to
240V:
AC
170
to
264V
C20
rated
at
DC
24V:
DC
20.4
to
26.4V
Must
conform
to
specifications
of
each
expansion
1/O
unit
AC
85
to
264V
Link
adapter
rated
at
AC
100to
120V:
AC
85
to
132V
Link
adapter
rated
at
AC
200
to
240V:
AC
170
to
264V
Link
adapter
rated
at
AC/DC
12
to
24V:
AC/DC
10.2
to
26.4V
DC
10.2
to
13.2V
Oto
+55°C
35
to
85%
RH
without
condensation
Must
be
relatively
dust-free
