Omron SYSMAC C Series User Manual

Using the programming console
Instruction
OUT
END(FUNO1)
At this point, the display will be the one shown at left
to allow you to reconsider. If you then.press
MONTR
you have finished the memory clearing operation and the display will
change to this.
Now if you press
CLR
you can begin writing your program.
Getting started, summarized
Putting all these steps together, here's a summary on what to do to begin
programming the CPU:
1. Confirm whether a RAM chip is mounted and the DIP switches are set
correctly.
2. Apply power to PC
3. Turn mode selector switch to PROGRAM
. Do these key sequences:
5. If you want to completely clear the old memory, press
PLA REC
Example program

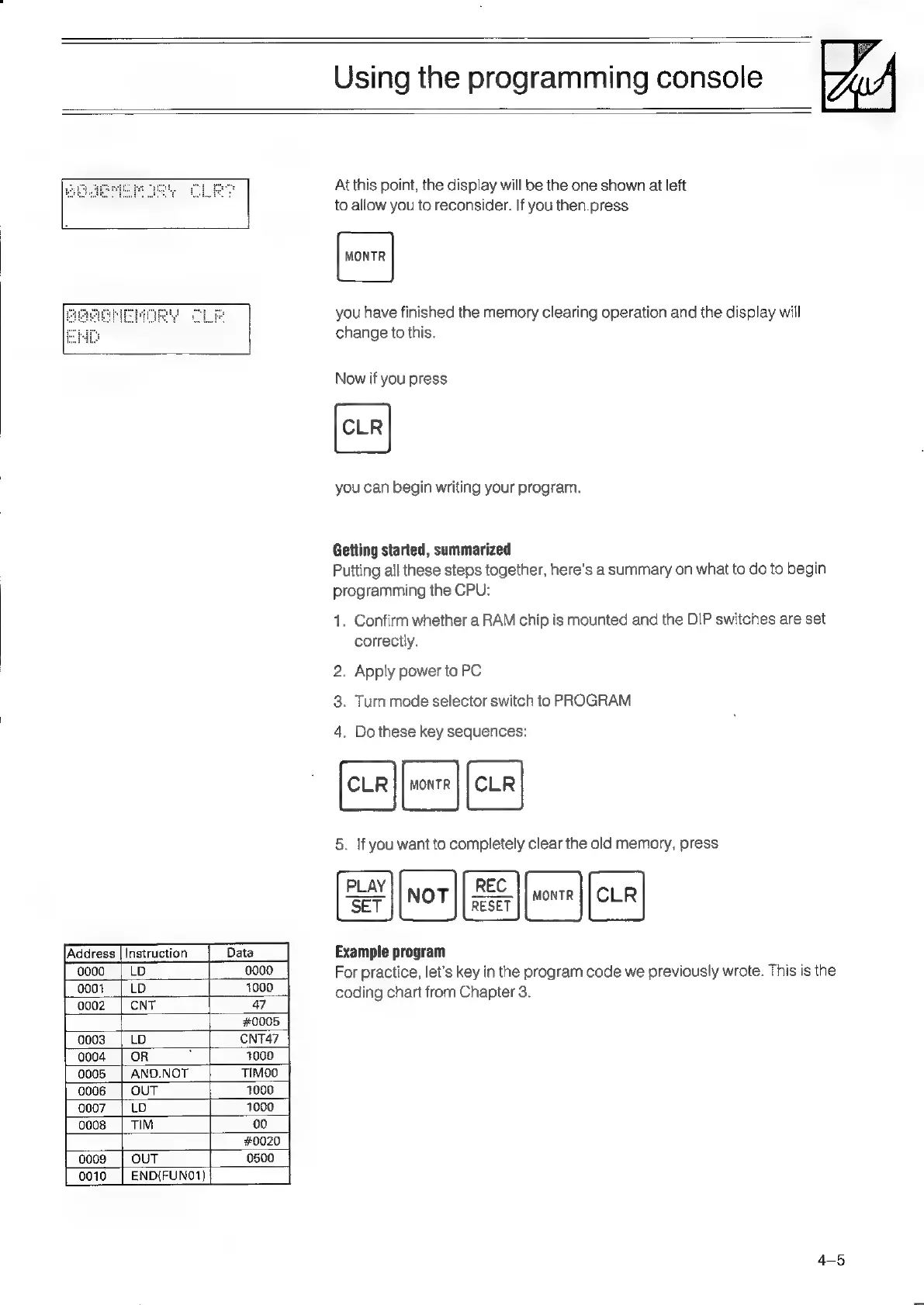

For practice, let's key in the program code we previously wrote. This is the
coding chart from Chapter 3.
