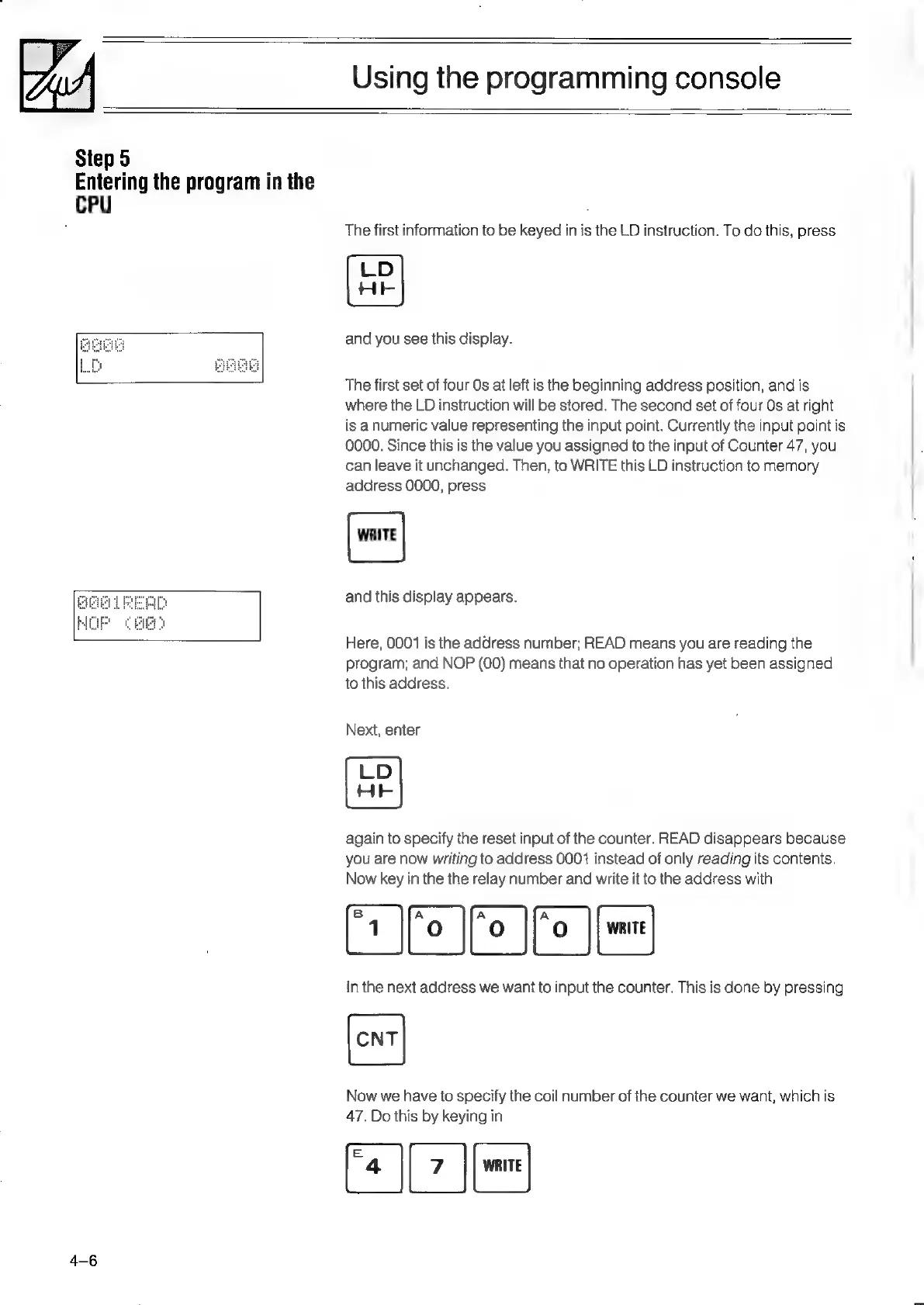

Using
the
programming
console
Step
5
Entering
the
program
in
the
CPU
The
first
information
to
be
keyed
in
is
the
LD
instruction.
To
do
this,
press
LD
HE
and
you
see
this
display.
The
first
set
of
four
Os
at
left
is
the
beginning
address
position,
and
is
where
the
LD
instruction
will
be
stored.
The
second
set
of
four
Os
at
right
is
a
numeric
value
representing
the
input
point.
Currently
the
input
point
is
0000.
Since
this
is
the
value
you
assigned
to
the
input
of
Counter
47,
you
can
leave
it
unchanged.
Then,
to
WRITE
this
LD
instruction
to
memory
address
0000,
press
WRITE
and
this
display
appears.
Here,
0001
is
the
address
number;
READ
means
you
are
reading
the
program;
and
NOP
(00)
means
that
no
operation
has
yet
been
assigned
to
this
address.
Next,
enter
LD
HE
again
to
specify
the
reset
input
of
the
counter.
READ
disappears
because
you
are
now
writing
to
address
0001
instead
of
only
reading
its
contents.
Now
key
in
the
the
relay
number
and
write
it
to
the
address
with
in
the
next
address
we
want
to
input
the
counter.
This
is
done
by
pressing
CNT
Now
we
have
to
specify
the
coil
number
of
the
counter
we
want,
which
is
47.
Do
this
by
keying
in
E
