Installing
the
C20
Installing
memory
chips
The
procedure
for
installing
memory
chips
is
described
below:
1.
Use
the
information
given
in
the
table
above
to
confirm
that
the
type
of
chip
you
have
is
correct.
2.
Remove
the
front
panel
of
the
CPU
by
loosening
the
mouting
screws
with
a
flat-bladed
screwdriver.
You'll
be
able
to
see
the
CPU’s
circuit
board.
Caution:
Before
opening
the
CPU,
always
be
sure
that
the
power
supply
to
the
C20
has
been
turned
OFF.

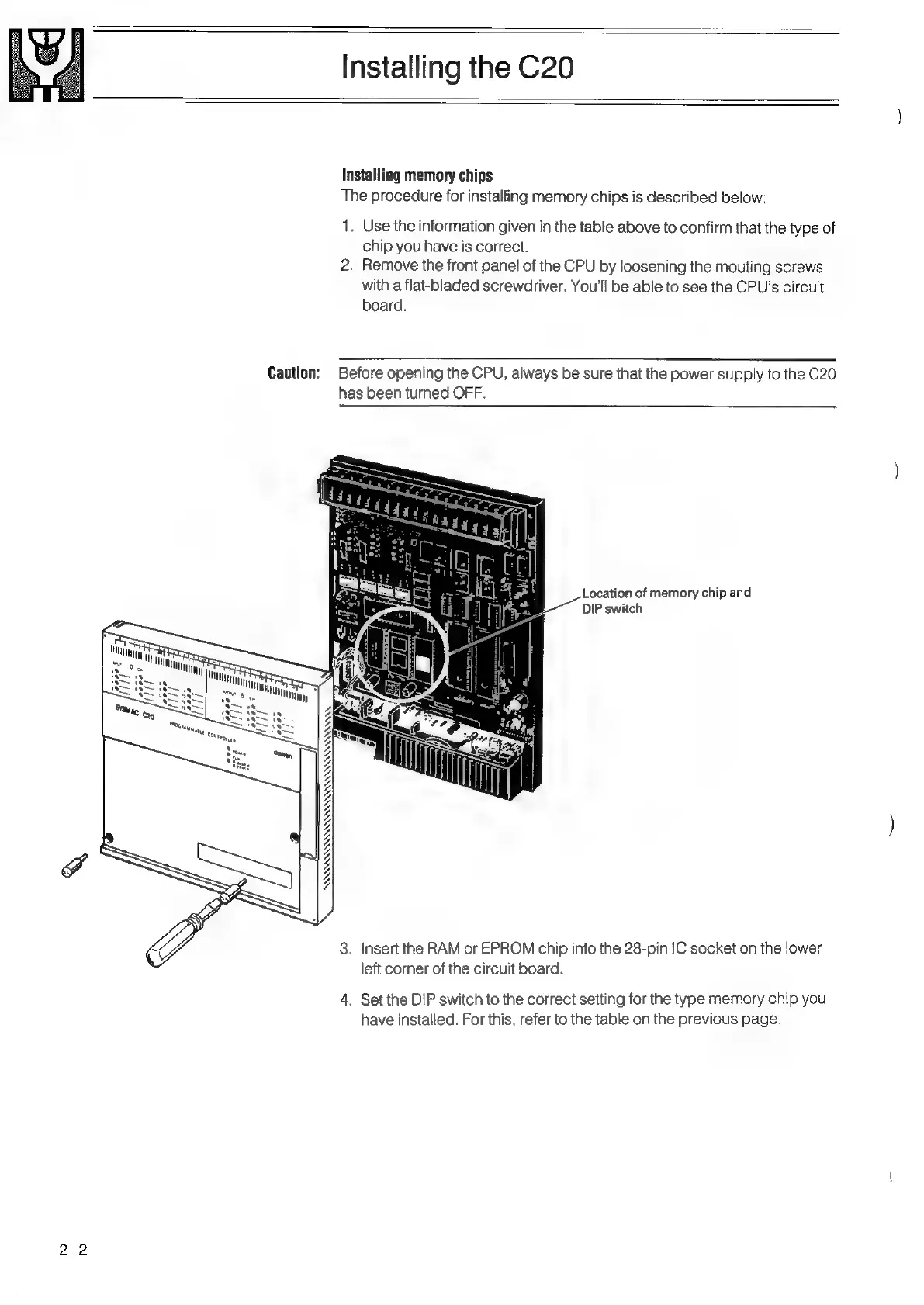

Location
of
memory
chip
and
DIP
switch
RS
MMMMany
3.
Insert
the
RAM
or
EPROM
chip
into
the
28-pin
IC
socket
on
the
lower
left
corner
of
the
circuit
board.
4.
Set
the
DIP
switch
to
the
correct
setting
for
the
type
memory
chip
you
have
installed.
For
this,
refer
to
the
table
on
the
previous
page.
