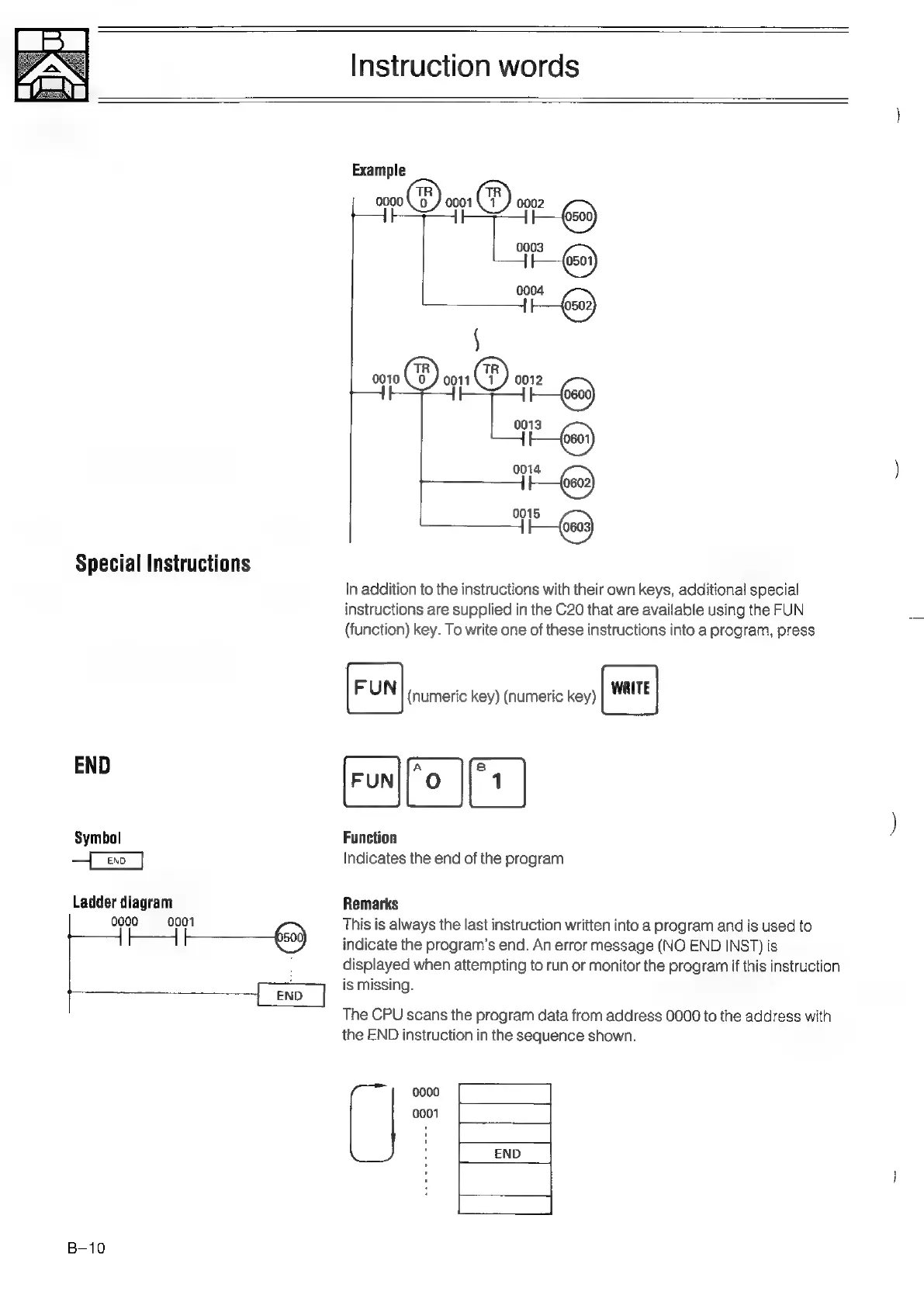

Instruction
words
O
|
Gr
me
-
mO
pE
ae
or
©
0013
Goo)
0014
:
Foo)
In
addition
to
the
instructions
with
their
own
keys,
additional
special
instructions
are
supplied
in
the
C20
that
are
available
using
the
FUN
(function)
key.
To
write
one
of
these
instructions
into
a
program,
press
(numeric
key)
(numeric
key)
Special
Instructions
Symbol
Function
END
Indicates
the
end
of
the
program
Ladder
diagram
Remarks
0000
0001
This
is
always
the
last
instruction
written
into
a
program
and
is
used
to
qi
4
H
indicate
the
program's
end.
An
error
message
(NO
END
INST)
is
displayed
when
attempting
to
run
or
monitor
the
program
if
this
instruction
is
missing.
The
CPU
scans
the
program
data
from
address
0000
to
the
address
with
the
END
instruction
in
the
sequence
shown.
0000
[J
oo
[|
