Omron SYSMAC C Series User Manual

Mode switch
RUN
MONITOR
PROGRAM

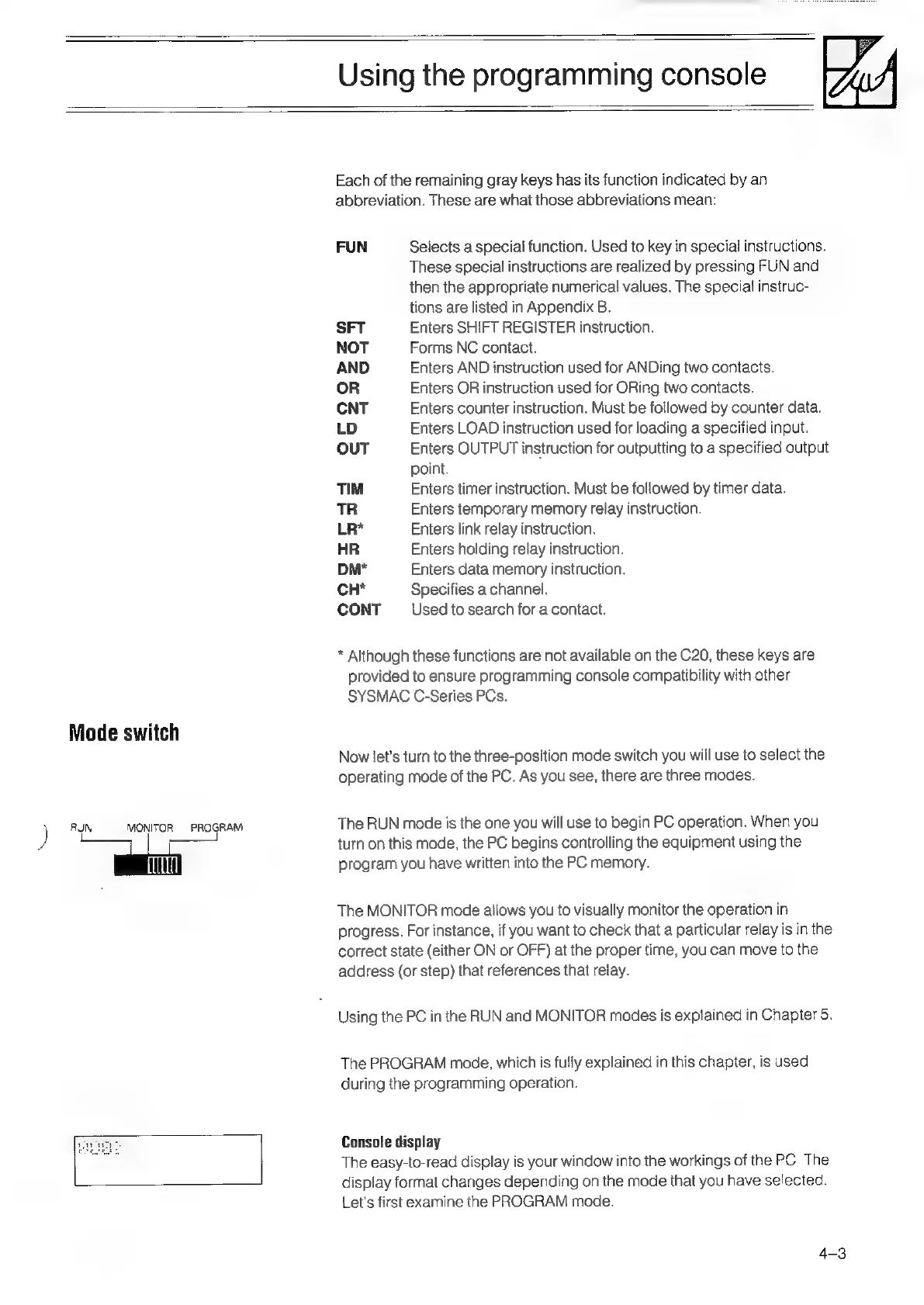

Each of the remaining gray keys has its function indicated by an
abbreviation. These are what those abbreviations mean:
FUN Selects a speciai function. Used to key in special instructions.
These special instructions are realized by pressing FUN and
then the appropriate numerical values. The special instruc-
tions are listed in Appendix B.
SFT Enters SHIFT REGISTER instruction.
NOT Forms NC contact.
AND Enters AND instruction used for ANDing two contacts.
OR Enters OR instruction used for ORing two contacts.
CNT Enters counter instruction. Must be followed by counter data.
LD Enters LOAD instruction used for loading a specified input.
OUT Enters OUTPUT instruction for outputting to a specified output
point.
TIM Enters timer instruction. Must be followed by timer data.
TR Enters temporary memory relay instruction.
LR* Enters link relay instruction.
HR Enters holding relay instruction.
DM* Enters data memory instruction.
CH* Specifies a channel.
CONT Used to search for a contact.
* Although these functions are not available on the C20, these keys are
provided to ensure programming console compatibility with other
SYSMAC C-Series PCs.
Now let's turn to the three-position mode switch you will use to select the
operating mode of the PC. As you see, there are three modes.
The RUN mode is the one you will use to begin PC operation. When you
turn on this mode, the PC begins controlling the equipment using the
program you have written into the PC memory.
The MONITOR mode allows you to visually monitor the operation in
progress. For instance, if you want to check that a particular relay is in the
correct state (either ON or OFF) at the proper time, you can move to the
address (or step) that references that relay.
Using the PC in the RUN and MONITOR modes is explained in Chapter 5.
The PROGRAM mode, which is fully explained in this chapter, is used
during the programming operation.
Console display
The easy-to-read display is your window into the workings of the PC. The
display format changes depending on the mode that you have selected.
Let's first examine the PROGRAM mode.
