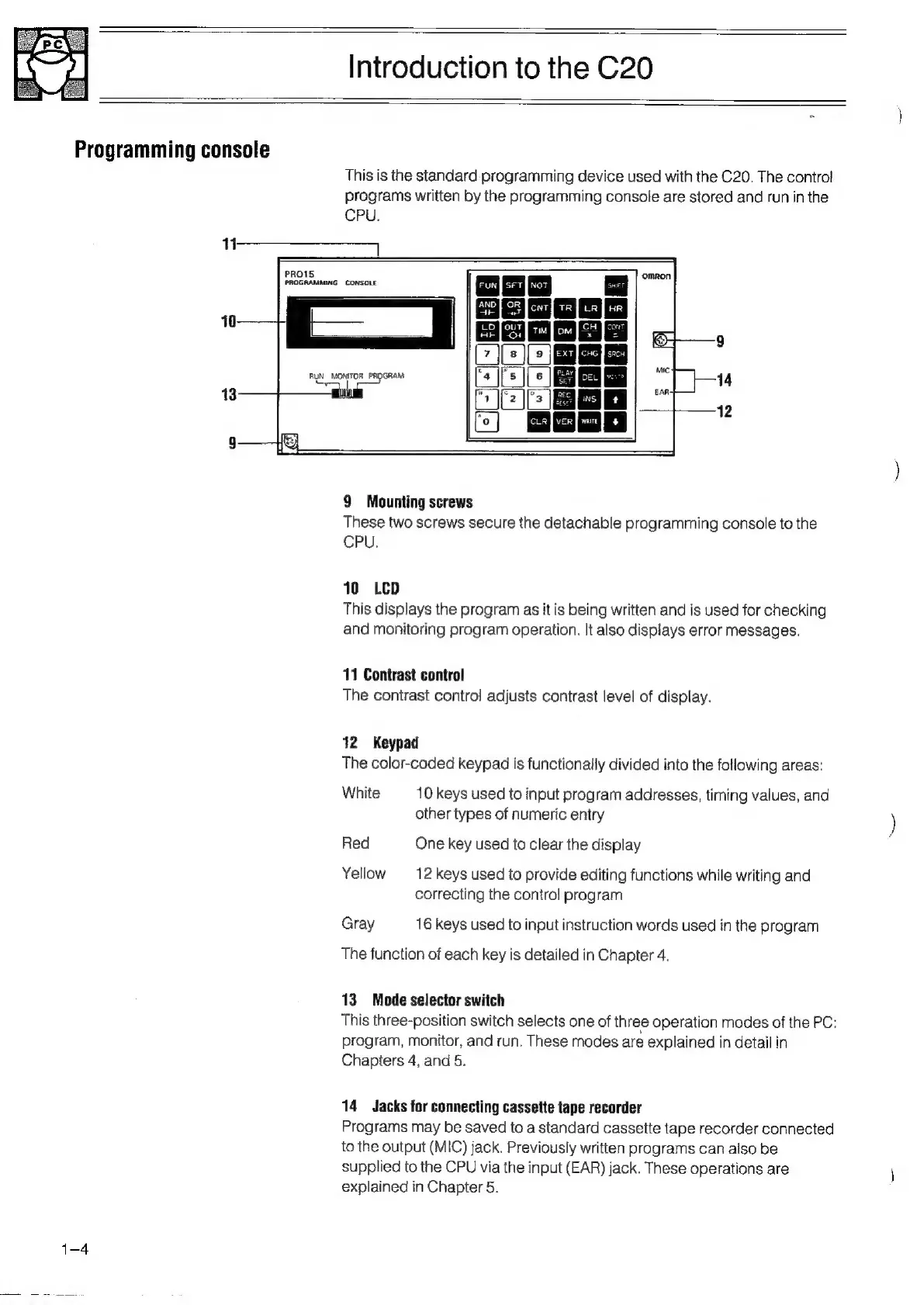

Introduction
to
the
C20
Programming
console
This
is
the
standard
programming
device
used
with
the
C20.
The
control
programs
written
by
the
programming
console
are
stored
and
run
in
the
CPU.
PROIS
PROGRAMMING
CONSOLE
9
Mounting
screws
These
two
screws
secure
the
detachable
programming
console
to
the
CPU.
10
LCD
This
displays
the
program
as
it
is
being
written
and
is
used
for
checking
and
monitoring
program
operation.
It
also
displays
error
messages.
11
Contrast
control
The
contrast
control
adjusts
contrast
level
of
display.
12
Keypad
The
color-coded
keypad
is
functionally
divided
into
the
following
areas:
White
10
keys
used
to
input
program
addresses,
timing
values,
and
other
types
of
numeric
entry
Red
One
key
used
to
clear
the
display
Yellow
12
keys
used
to
provide
editing
functions
while
writing
and
correcting
the
control
program
Gray
16
keys
used
to
input
instruction
words
used
in
the
program
The
function
of
each
key
is
detailed
in
Chapter
4.
13
Mode
selector
switch
This
three-position
switch
selects
one
of
three
operation
modes
of
the
PC:
program,
monitor,
and
run.
These
modes
are
explained
in
detail
in
Chapters
4,
and
5.
14
Jacks
for
connecting
cassette
tape
recorder
Programs
may
be
saved
to
a
standard
cassette
tape
recorder
connected
to
the
output
(MIC)
jack.
Previously
written
programs
can
also
be
supplied
to
the
CPU
via
the
input
(EAR)
jack.
These
operations
are
explained
in
Chapter
5.
