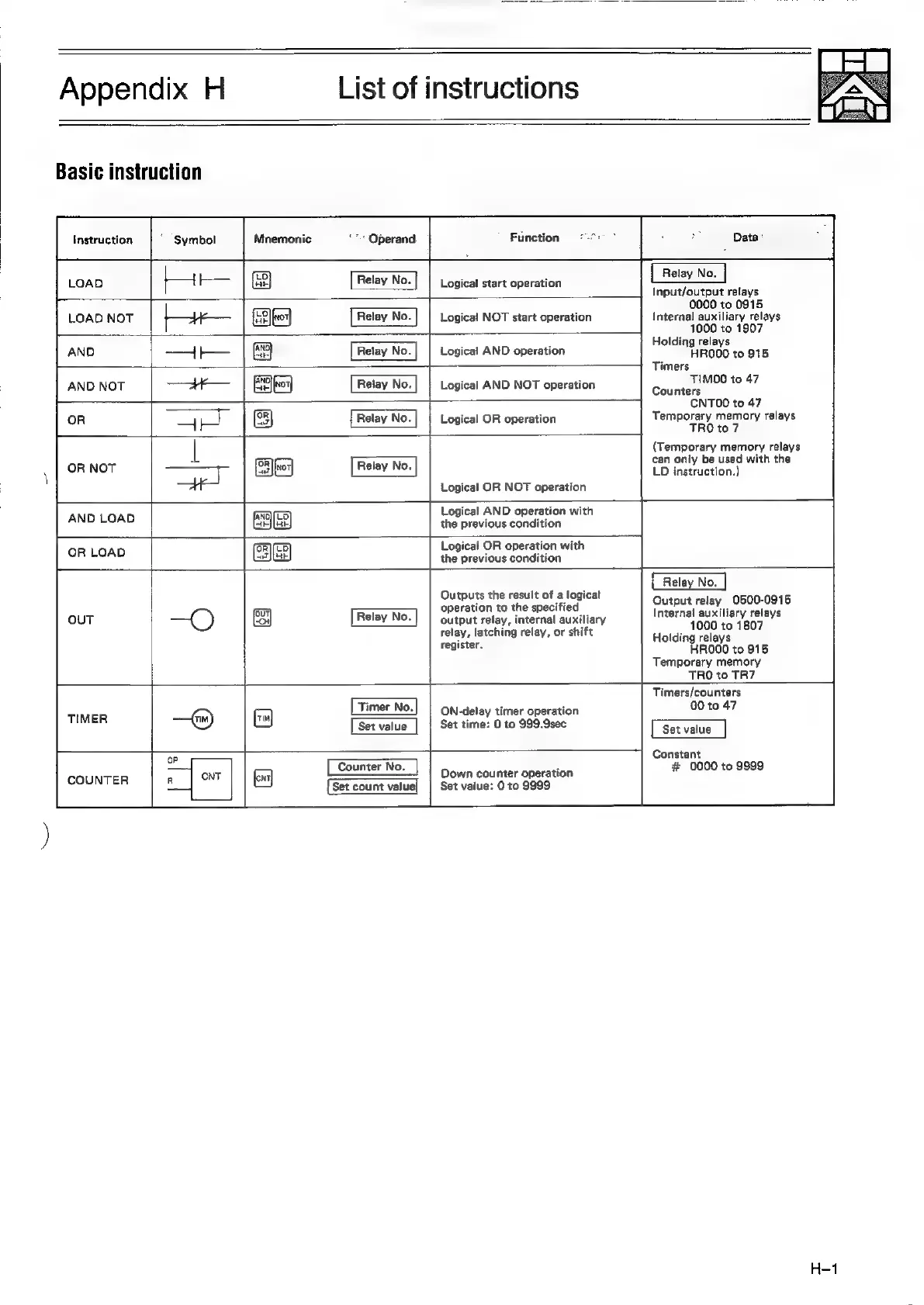

Appendix H
Basic instruction
Instruction
LOAD
„Mnemonic
Logical start operation
LOAD NOT
Logical NOT start operation
AND
Logical AND operation
AND NOT
Logical AND NOT operation
OR
Logical OR operation
Logical OR NOT operation
Relay N
input/output relays
0000 to 0915
Internal auxiliary relays
1000 to 1907
Holding relays
HRGOO to 915
Timers
TIMOO to 47
Counters
CNTOO to 47
Temporary memory relays
TRO to7
(Temporary memory relays
can only be used with the
LD instruction.)
AND LOAD
Logical AND operation with
the previous condition
OR LOAD
Logical OR operation with
the previous condition
TIMER
COUNTER
Timer No.
Outputs the result of a logical
operation to the specified
output relay, internal auxiliary
relay, latching relay, or shift
register.
ON-delay timer operation
Set time: 0 to 999.9sec
Down counter operation
Set value: 0 to 9999
Output relay 0500-0915
Internal auxiliary relays
1000 to 1807
Holding relays
HROOO to 915
Temporary memory
TRO to TR7
Timers/counters
00 to 47
Constant
# 0000 to 9999
